Valve
Product Features

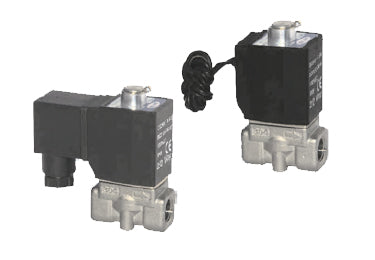

- Direct-acting, normally open type; starts at zero pressure difference with fast and sensitive action.
- Wide operating pressure range, with high-pressure (H) and standard types available for selection.
- The valve body is made of SUS304 stainless steel, which is lightweight and has an elegant appearance.
- Seal material options include FEP/PTFE (Teflon), suitable for a variety of working media, especially for high-temperature water and saturated steam.

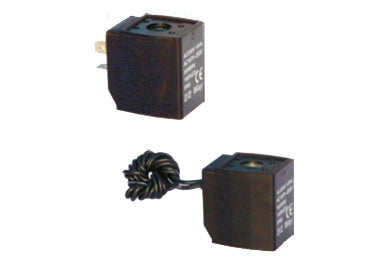

- The coil has a protection class of IP65, with electrical connection options of direct lead wire or DIN connector.
Specifications
| Model No. | Port Size [Note 1] | Orifice Dia. (mm) | Cv Value | Effective Area (mm²) | Weight (g) [Note 2] | Max. Operating Pressure | Max. Proof Pressure | ||
|---|---|---|---|---|---|---|---|---|---|
| MPa | psi | MPa | psi | ||||||
| 2KLH030 | -06 PT1/8 | 2.0 | 0.18 | 3.0 | 305 | 1.5 | 220 | 3.0 | 450 |
| -08 PT1/4 | 295 | ||||||||
| 2KL030 | -06 PT1/8 | 3.0 | 0.33 | 6.0 | 305 | 0.7 | 100 | ||
| -08 PT1/4 | 295 | ||||||||
| 2KLH050 | -10 PT3/8 | 4.0 | 0.55 | 10.0 | 610 | 1.5 | 220 | ||
| -15 PT1/2 | 600 | ||||||||
| 2KL050 | -10 PT3/8 | 5.0 | 0.83 | 15.0 | 610 | 0.7 | 100 | ||
| -15 PT1/2 | 600 | ||||||||
Note 1: H-type models have similar dimensions to the 030/050 series.
Note 2: The weight listed is for the DIN connector type. The lead wire type for the 2KL030 series is 10g lighter, and for the 2KL050 series, it is 20g lighter.
Note 2: The weight listed is for the DIN connector type. The lead wire type for the 2KL030 series is 10g lighter, and for the 2KL050 series, it is 20g lighter.
Product Ordering Code
| Position | Description | Options & Values |
|---|---|---|
| 1 | Model Code |
|
| 2 | Pressure Type |
|
| 3 | Series Code |
|
| 4 | Port Size |
|
| 5 | Coil Voltage |
|
| 6 | Connection Type |
|
| 7 | Thread Code |
|
Note 1: The standard length for the lead wire type is 0.5m.
