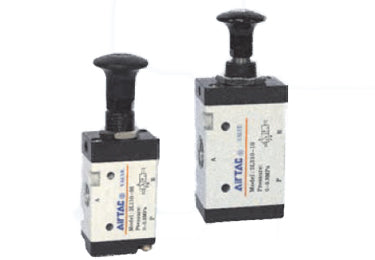

3L Series Hand-Pull Valve
- Specifications
- Product Ordering Code
Specifications
| Model | 3L110-06 | 3L210-06 | 3L210-08 | 3L310-08 | 3L310-10 |
|---|---|---|---|---|---|
| Working Medium | Air (filtered by 40μm or larger filter element) | ||||
| Actuation Mode | Hand-Pull Direct Acting | ||||
| Port Size [Note 1] | PT1/8 | PT1/4 | PT3/8 | ||
| Effective Area [Note 3] | 10.2mm² (Cv=0.6) | 3L210-08: 17.0mm² (Cv=1.0) | 3L310-10: 28.0mm² (Cv=1.65) | ||
| Number of Positions | 3-Port 2-Position | ||||
| Lubrication [Note 2] | Not required | ||||
| Operating Pressure Range | 0~1.0MPa (0~145psi) | ||||
| Proof Pressure | 1.5MPa (215psi) | ||||
| Operating Temperature | -20~70°C | ||||
| Body Material | Aluminum Alloy | ||||
[Note 1] G and NPT thread types are available for selection.
[Note 2] If lubrication is added, do not stop midway. It is recommended to use ISO VG32 or equivalent oil.
[Note 3] The effective area and Cv value are calculated based on empirical flow test data.
[Note 2] If lubrication is added, do not stop midway. It is recommended to use ISO VG32 or equivalent oil.
[Note 3] The effective area and Cv value are calculated based on empirical flow test data.
Product Ordering Code
| ① Specification Code | ② Series | ③ Function Code | ④ Port Size | ⑤ Thread Type |
|---|---|---|---|---|
| 3L: 3-Port 2-Position Hand-Pull Valve |
1: 100 Series 2: 200 Series 3: 300 Series |
10: 2-Position |
06: 1/8" 08: 1/4" 10: 3/8" |
Blank: PT Thread G: G Thread T: NPT Thread |

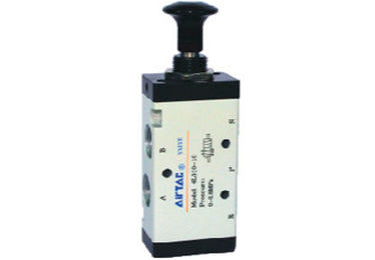

4L Series Hand-Pull Valve
- Specifications
- Product Ordering Code
Specifications
| Model | 4L110-06 | 4L210-06 | 4L210-08 | 4L310-08 | 4L310-10 |
|---|---|---|---|---|---|
| Working Medium | Air (filtered by 40μm or larger filter element) | ||||
| Actuation Mode | Hand-Pull Direct Acting | ||||
| Port Size [Note 1] | Inlet=Outlet=PT1/8 Exhaust=PT1/8 |
Inlet=Outlet=PT1/4 Exhaust=PT1/8 |
Inlet=Outlet=PT1/4 Exhaust=PT1/4 |
Inlet=Outlet=PT3/8 Exhaust=PT1/4 |
|
| Effective Area [Note 3] | 10.2mm² (Cv=0.6) | 4L210-08: 17.0mm² (Cv=1.0) | 4L310-10: 28.0mm² (Cv=1.65) | ||
| Number of Positions | 5-Port 2-Position | ||||
| Lubrication [Note 2] | Not required | ||||
| Operating Pressure Range | 0~1.0MPa (0~145psi) | ||||
| Proof Pressure | 1.5MPa (215psi) | ||||
| Operating Temperature | -20~70°C | ||||
| Body Material | Aluminum Alloy | ||||
[Note 1] G and NPT thread types are available for selection.
[Note 2] If lubrication is added, do not stop midway. It is recommended to use ISO VG32 or equivalent oil.
[Note 3] The effective area and Cv value are calculated based on empirical flow test data.
[Note 2] If lubrication is added, do not stop midway. It is recommended to use ISO VG32 or equivalent oil.
[Note 3] The effective area and Cv value are calculated based on empirical flow test data.
Product Ordering Code
| ① Specification Code | ② Series | ③ Function Code | ④ Port Size | ⑤ Thread Type |
|---|---|---|---|---|
| 4L: 5-Port 2-Position Hand-Pull Valve |
1: 100 Series 2: 200 Series 3: 300 Series |
10: 2-Position |
06: 1/8" 08: 1/4" 10: 3/8" |
Blank: PT Thread G: G Thread T: NPT Thread |
