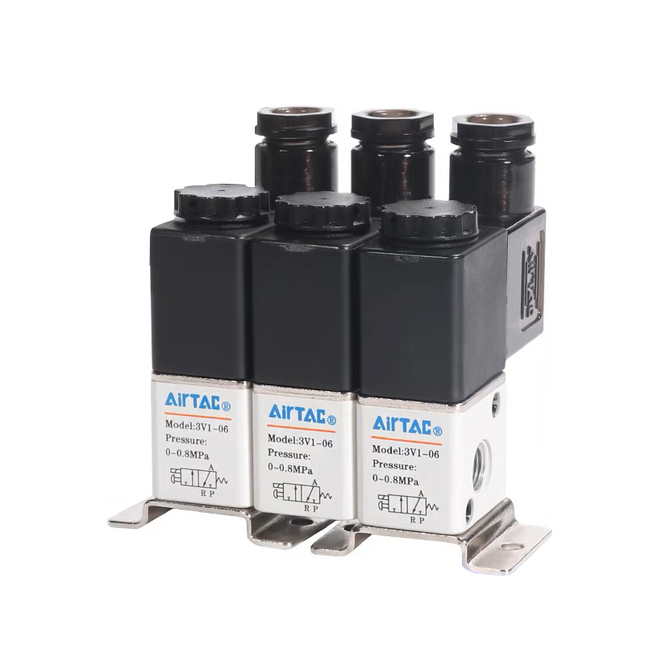

AIRTAC 3V1 Series Solenoid Valve
Product Features
- Direct acting normally closed type, with sensitive commutation.
- No need for lubrication.
- Can be used with multiple integrated units, saving installation space.
- Equipped with a manual override, convenient for installation and debugging.
- Multiple standard voltage levels are available for selection.
Specifications
| Model | 3V1-M5 | 3V1-06 | |
|---|---|---|---|
| Working Medium | Air (filtered through 40µm or finer filter) | ||
| Operation Type | Direct Acting | ||
| Port Size [Note 1] | M5 | PT1/8 | |
| Positions | Three-way Two-position | ||
| Lubrication | No need | ||
| Operating Pressure Range | 0~0.8MPa (0~114psi) | ||
| Proof Pressure | 1.2MPa (175psi) | ||
| Working Temperature | -20~70°C | ||
| Effective Orifice | Φ1.2mm | ||
| Body Material | Aluminum Alloy | ||
[Note 1] G thread and NPT thread are optional for port thread type.
Electrical Specifications
| Item | AC220V | AC110V | AC24V | DC24V | DC12V |
|---|---|---|---|---|---|
| Standard Voltage | AC220V | AC110V | AC24V | DC24V | DC12V |
| Operating Voltage Range | AC: ±15% | DC: ±10% | |||
| Power Consumption | 4.5VA | 4.5VA | 5.0VA | 3.0W | 2.5W |
| Protection Degree | IP65 (DIN40050) | ||||
| Insulation Class | B Class | ||||
| Wiring Form | DIN Socket Type, Lead Wire Type | ||||
| Excitation Time | Below 0.05 seconds | ||||
| Maximum Operating Frequency [Note 1] | 10 times/second | ||||
[Note 1] The maximum operating frequency is for the air condition.
Product Ordering Code
| 1. Model Code | 2. Series Code | 3. Port Size | 4. Standard Voltage | 5. Wiring Form | 6. Thread Type Code |
|---|---|---|---|---|---|
| 3V: Three-way Two-position Solenoid Valve | 1: 1 Series | M5: M5 | A: AC220V | Blank: DIN Socket Type | Blank: PT Thread |
| 06: 1/8" | B: DC24V | I: Lead Wire Type | G: G Thread | ||
| C: AC110V | T: NPT Thread | ||||
| E: AC24V | |||||
| F: DC12V |
Note:
• Lead-wire type standard wire length is 0.5m.
• For manifold bases and more ordering codes, refer to page P82.
• Lead-wire type standard wire length is 0.5m.
• For manifold bases and more ordering codes, refer to page P82.
