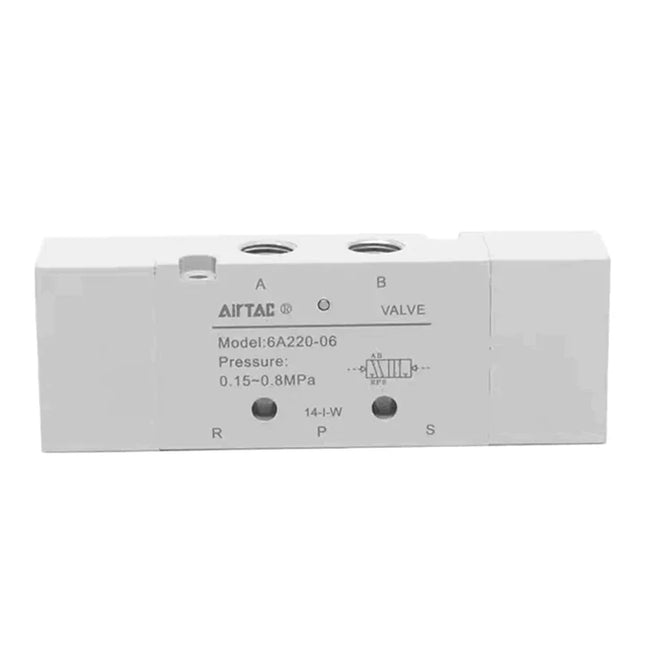

Valve
Product Features
- The main body is formed by aluminum alloy extrusion, with a special internal processing technology to effectively increase the flow rate.
- Can be integrated with a base to form a valve bank, saving installation space.
Specifications
| Model | 6A0510 | 6A0520 | 6A0530 | 6A110 | 6A120 | 6A130 |
|---|---|---|---|---|---|---|
| Port Size | Inlet=Outlet=Exhaust=M5 | Inlet=Outlet=Exhaust=M5 or PT1/8 | ||||
| Effective Area (Cv) | M5:3.4mm² (0.2) | M5:3.4mm² (0.2) | 6A0530CM5: 2.2mm² (0.13) |
O6: 8.9mm² (0.52) | O6: 8.9mm² (0.52) | 6A130C06: 8.0mm² (0.47) |
| Weight | 20g | 25g | 30g | 50g | 60g | 65g |
| Model | 6A210 | 6A220 | 6A230 | 6A310 | 6A320 | 6A330 |
| Port Size | Inlet=Outlet=PT1/8 or PT1/4; Exhaust=PT1/8 | Inlet=Outlet=PT3/8; Exhaust=PT1/4 | ||||
| Effective Area (Cv) | 08:15.4mm² (0.91) | 08:15.4mm² (0.91) | 6A230C08: 14.2mm² (0.84) |
10:38.4mm² (2.26) | 10:38.4mm² (2.26) | 6A330C10: 30.5mm² (1.8) |
| Weight | 120g | 135g | 145g | 250g | 290g | 320g |
| Working Medium | Air (filtered by a 40μm or larger filter screen) |
| Actuation Mode | Externally air piloted |
| Operating Pressure | 3 Position Type: 0.2~0.8MPa(29~114psi) Others: 0.15~0.8MPa(21~114psi) |
| Proof Pressure | 1.2MPa (175psi) |
| Operating Temperature | -20~70℃ |
| Max. Operating Frequency | 5 cycles/sec , 3 cycles/sec |
Note:
• PT, NPT, and G threads are available.
• If lubricated, do not stop midway. Use turbine oil ISO VG32 or equivalent.
• PT, NPT, and G threads are available.
• If lubricated, do not stop midway. Use turbine oil ISO VG32 or equivalent.
Product Ordering Code
Example: 6A 2 10 08 □ □
| Item | Code | Description |
|---|---|---|
| Series Code | 05 / 1 / 2 / 3 | 0500 / 100 / 200 / 300 Series |
| Control Type | 10 / 20 / 30C / 30E / 30P | Single / Double / Closed Center / Exhaust Center / Pressure Center |
| Port Size | M5 / 06 / 08 / 10 | M5 / PT1/8 / PT1/4 / PT3/8 |
| Thread Type | Blank / G / T | PT / G / NPT Thread |
