Orders over $30 and under 1.5 kg qualify for free shipping and tax exemption.

AFR,BFR(52)

728 products

  • Airtac AFR: Air Filter Regulator - AFR15004W

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR15004W

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: differential pressure drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: kgf/cm² & psi,Filtration accuracy: 5μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $21.80

  • Airtac AFR: Air Filter Regulator - AFR1500NT

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500NT

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: differential pressure drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: not attached,Filtration accuracy: 40μm level,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $18.40

  • Airtac AFR: Air Filter Regulator - AFR1500NWT

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500NWT

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: differential pressure drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: not attached,Filtration accuracy: 5μm level,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $18.40

  • Airtac AFR: Air Filter Regulator - AFR1500NG

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500NG

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: differential pressure drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: not attached,Filtration accuracy: 40μm level,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $18.40

  • Airtac AFR: Air Filter Regulator - AFR1500NWG

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500NWG

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: differential pressure drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: not attached,Filtration accuracy: 5μm level,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $18.40

  • Airtac AFR: Air Filter Regulator - AFR1500N

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500N

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: differential pressure drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: not attached,Filtration accuracy: 40μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $18.40

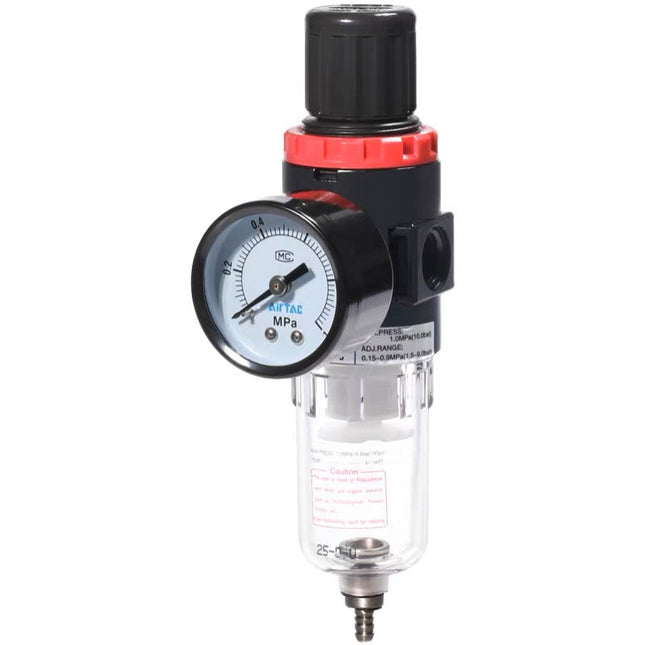

  • Airtac AFR: Air Filter Regulator - AFR1500NW

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500NW

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: differential pressure drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: not attached,Filtration accuracy: 5μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $18.40

  • Airtac AFR: Air Filter Regulator - AFR1500L1

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500L1

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: differential pressure drainage type,Type: low pressure type (0.4MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: MPa,Filtration accuracy: 40μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $21.80

  • Airtac AFR: Air Filter Regulator - AFR1500L1W

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500L1W

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: differential pressure drainage type,Type: low pressure type (0.4MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: MPa,Filtration accuracy: 5μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $21.80

  • Airtac AFR: Air Filter Regulator - AFR1500L2T

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500L2T

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: differential pressure drainage type,Type: low pressure type (0.4MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: psi,Filtration accuracy: 40μm level,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $21.80

  • Airtac AFR: Air Filter Regulator - AFR1500L2WT

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500L2WT

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: differential pressure drainage type,Type: low pressure type (0.4MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: psi,Filtration accuracy: 5μm level,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $21.80

  • Airtac AFR: Air Filter Regulator - AFR1500L3G

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500L3G

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: differential pressure drainage type,Type: low pressure type (0.4MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: bar,Filtration accuracy: 40μm level,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $21.80

  • Airtac AFR: Air Filter Regulator - AFR1500L3WG

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500L3WG

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: differential pressure drainage type,Type: low pressure type (0.4MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: bar,Filtration accuracy: 5μm level,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $21.80

  • Airtac AFR: Air Filter Regulator - AFR1500L4

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500L4

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: differential pressure drainage type,Type: low pressure type (0.4MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: kgf/cm² & psi,Filtration accuracy: 40μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $21.80

  • Airtac AFR: Air Filter Regulator - AFR1500L4W

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500L4W

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: differential pressure drainage type,Type: low pressure type (0.4MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: kgf/cm² & psi,Filtration accuracy: 5μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $21.80

  • Airtac AFR: Air Filter Regulator - AFR1500LNT

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500LNT

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: differential pressure drainage type,Type: low pressure type (0.4MPa),Bracket: attached bracket,Pressure gauge: not attached,Filtration accuracy: 40μm level,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $18.40

  • Airtac AFR: Air Filter Regulator - AFR1500LNWT

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500LNWT

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: differential pressure drainage type,Type: low pressure type (0.4MPa),Bracket: attached bracket,Pressure gauge: not attached,Filtration accuracy: 5μm level,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $18.40

  • Airtac AFR: Air Filter Regulator - AFR1500LNG

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500LNG

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: differential pressure drainage type,Type: low pressure type (0.4MPa),Bracket: attached bracket,Pressure gauge: not attached,Filtration accuracy: 40μm level,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $18.40

  • Airtac AFR: Air Filter Regulator - AFR1500LNWG

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500LNWG

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: differential pressure drainage type,Type: low pressure type (0.4MPa),Bracket: attached bracket,Pressure gauge: not attached,Filtration accuracy: 5μm level,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $18.40

  • Airtac AFR: Air Filter Regulator - AFR1500LN

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500LN

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: differential pressure drainage type,Type: low pressure type (0.4MPa),Bracket: attached bracket,Pressure gauge: not attached,Filtration accuracy: 40μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $18.40

  • Airtac AFR: Air Filter Regulator - AFR1500LNW

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500LNW

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: differential pressure drainage type,Type: low pressure type (0.4MPa),Bracket: attached bracket,Pressure gauge: not attached,Filtration accuracy: 5μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $18.40

  • Airtac AFR: Air Filter Regulator - AFR1500M4W

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500M4W

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: manual drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: kgf/cm² & psi,Filtration accuracy: 5μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $21.80

  • Airtac AFR: Air Filter Regulator - AFR1500MNT

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500MNT

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: manual drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: not attached,Filtration accuracy: 40μm level,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $18.40

  • Airtac AFR: Air Filter Regulator - AFR1500MNWT

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500MNWT

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: manual drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: not attached,Filtration accuracy: 5μm level,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $18.40

  • Airtac AFR: Air Filter Regulator - AFR1500MNG

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500MNG

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: manual drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: not attached,Filtration accuracy: 40μm level,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $18.40

  • Airtac AFR: Air Filter Regulator - AFR1500MNWG

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500MNWG

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: manual drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: not attached,Filtration accuracy: 5μm level,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $18.40

  • Airtac AFR: Air Filter Regulator - AFR1500MN

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500MN

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: manual drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: not attached,Filtration accuracy: 40μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $18.40

  • Airtac AFR: Air Filter Regulator - AFR1500MNW

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500MNW

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: manual drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: not attached,Filtration accuracy: 5μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $18.40

  • Airtac AFR: Air Filter Regulator - AFR1500ML1

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500ML1

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: manual drainage type,Type: low pressure type (0.4MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: MPa,Filtration accuracy: 40μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $21.80

  • Airtac AFR: Air Filter Regulator - AFR1500ML1W

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500ML1W

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: manual drainage type,Type: low pressure type (0.4MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: MPa,Filtration accuracy: 5μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $21.80

  • Airtac AFR: Air Filter Regulator - AFR1500ML2T

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500ML2T

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: manual drainage type,Type: low pressure type (0.4MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: psi,Filtration accuracy: 40μm level,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $21.80

  • Airtac AFR: Air Filter Regulator - AFR1500ML2WT

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500ML2WT

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: manual drainage type,Type: low pressure type (0.4MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: psi,Filtration accuracy: 5μm level,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $21.80

  • Airtac AFR: Air Filter Regulator - AFR1500ML3G

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500ML3G

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: manual drainage type,Type: low pressure type (0.4MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: bar,Filtration accuracy: 40μm level,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $21.80

  • Airtac AFR: Air Filter Regulator - AFR1500ML3WG

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500ML3WG

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: manual drainage type,Type: low pressure type (0.4MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: bar,Filtration accuracy: 5μm level,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $21.80

  • Airtac AFR: Air Filter Regulator - AFR1500ML4

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500ML4

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: manual drainage type,Type: low pressure type (0.4MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: kgf/cm² & psi,Filtration accuracy: 40μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $21.80

  • Airtac AFR: Air Filter Regulator - AFR1500ML4W

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500ML4W

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: manual drainage type,Type: low pressure type (0.4MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: kgf/cm² & psi,Filtration accuracy: 5μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $21.80

  • Airtac AFR: Air Filter Regulator - AFR1500MLNT

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500MLNT

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: manual drainage type,Type: low pressure type (0.4MPa),Bracket: attached bracket,Pressure gauge: not attached,Filtration accuracy: 40μm level,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $18.40

  • Airtac AFR: Air Filter Regulator - AFR1500MLNWT

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500MLNWT

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: manual drainage type,Type: low pressure type (0.4MPa),Bracket: attached bracket,Pressure gauge: not attached,Filtration accuracy: 5μm level,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $18.40

  • Airtac AFR: Air Filter Regulator - AFR1500MLNG

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500MLNG

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: manual drainage type,Type: low pressure type (0.4MPa),Bracket: attached bracket,Pressure gauge: not attached,Filtration accuracy: 40μm level,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $18.40

  • Airtac AFR: Air Filter Regulator - AFR1500MLNWG

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500MLNWG

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: manual drainage type,Type: low pressure type (0.4MPa),Bracket: attached bracket,Pressure gauge: not attached,Filtration accuracy: 5μm level,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $18.40

  • Airtac AFR: Air Filter Regulator - AFR1500MLN

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500MLN

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: manual drainage type,Type: low pressure type (0.4MPa),Bracket: attached bracket,Pressure gauge: not attached,Filtration accuracy: 40μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $18.40

  • Airtac AFR: Air Filter Regulator - AFR1500MLNW

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR1500MLNW

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: manual drainage type,Type: low pressure type (0.4MPa),Bracket: attached bracket,Pressure gauge: not attached,Filtration accuracy: 5μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $18.40

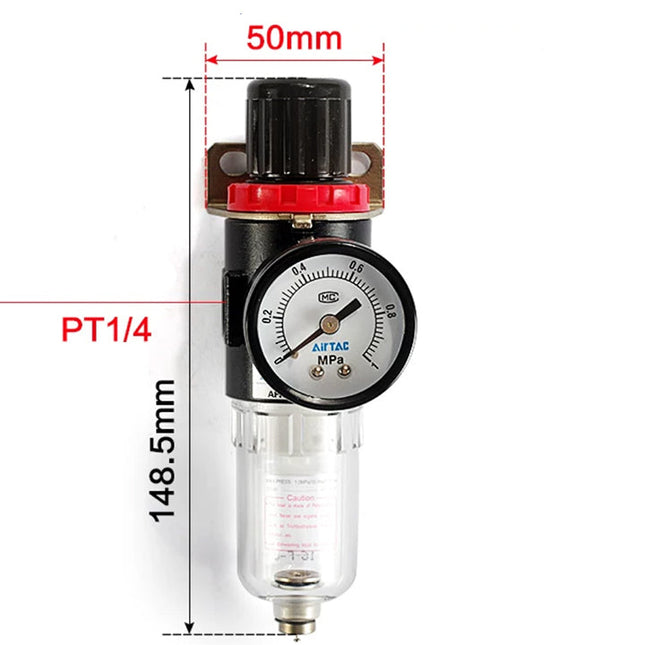

  • Airtac AFR: Air Filter Regulator - AFR2000NT

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR2000NT

    Series: A series pressure regulating filter,Nozzle caliber: 1/4",Drainage mode: differential pressure drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: not attached,Filtration accuracy: 40μm level,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $18.40

  • Airtac AFR: Air Filter Regulator - AFR2000NWT

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR2000NWT

    Series: A series pressure regulating filter,Nozzle caliber: 1/4",Drainage mode: differential pressure drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: not attached,Filtration accuracy: 5μm level,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $18.40

  • Airtac AFR: Air Filter Regulator - AFR2000NG

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR2000NG

    Series: A series pressure regulating filter,Nozzle caliber: 1/4",Drainage mode: differential pressure drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: not attached,Filtration accuracy: 40μm level,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $18.40

  • Airtac AFR: Air Filter Regulator - AFR2000NWG

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR2000NWG

    Series: A series pressure regulating filter,Nozzle caliber: 1/4",Drainage mode: differential pressure drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: not attached,Filtration accuracy: 5μm level,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $18.40

  • Airtac AFR: Air Filter Regulator - AFR2000N

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR2000N

    Series: A series pressure regulating filter,Nozzle caliber: 1/4",Drainage mode: differential pressure drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: not attached,Filtration accuracy: 40μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $18.40

  • Airtac AFR: Air Filter Regulator - AFR2000NW

    Airtac-1 Airtac AFR: Air Filter Regulator - AFR2000NW

    Series: A series pressure regulating filter,Nozzle caliber: 1/4",Drainage mode: differential pressure drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: not attached,Filtration accuracy: 5μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $18.40

Filter Regulator

  • Product Features
  • Specifications
  • Product Ordering Code

Product Features

  1. Compact structure, easy to install and use.
  2. Self-locking pressure adjustment mechanism prevents pressure changes due to external interference.
  3. Low pressure loss, high water separation efficiency.
  4. In addition to the standard type, a low-pressure type is available (maximum adjustable pressure 0.4MPa).

Specifications

Model AFR1500 AFR2000 BFR2000 BFR3000 BFR4000
Working Medium Air
Port Size [Note 1] PT1/8 PT1/4 PT1/4 PT3/8 PT1/2
Filter Precision 40μm or 5μm
Pressure Regulation Range Automatic & Semi-automatic Drain: 0.15–0.9MPa (20–130Psi) / Manual Drain: 0.05–0.9MPa (7–130Psi)
Max Operating Pressure 1.0MPa (145Psi)
Proof Pressure 1.5MPa (215Psi)
Operating Temperature Range -5–70°C (No freezing)
Water Bowl Capacity 15CC 60CC
Note 1: G and NPT thread types are available.

Product Ordering Code

Position Description Options & Values
1 Series Code
  • AFR: A Series Filter Regulator
  • BFR: B Series Filter Regulator
2 Port Size
  • 1500: 1/8"
  • 2000: 1/4"
  • 3000: 3/8"
  • 4000: 1/2"
3 Drain Type
  • Blank: Semi-automatic Drain
  • M: Manual Drain
  • A: Automatic Drain
4 Model Type Code
  • Blank: Standard Type (0.9MPa)
  • L: Low Pressure Type (0.4MPa)
5 Bracket Code
  • Blank: With Bracket
  • J: Without Bracket
6 Pressure Gauge Code
  • Blank: With Pressure Gauge
  • N: Without Pressure Gauge
7 Pressure Unit
  • 1: MPa
  • 2: psi
  • 3: bar
  • 4: kgf/cm² & psi
8 Filter Precision
  • Blank: 40μm
  • W: 5μm
9 Thread Code [Note 1]
  • Blank: PT thread
  • G: G thread
  • T: NPT thread
Note 1: For special requirements, please contact our company's business department for confirmation.
