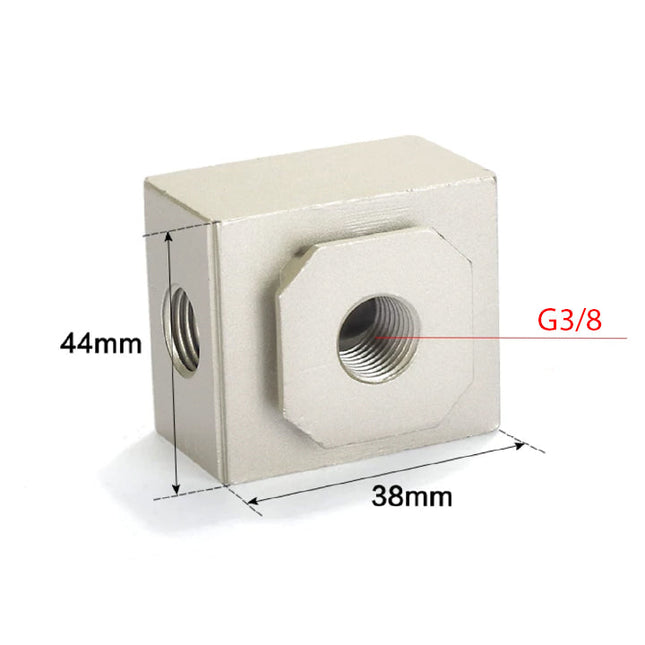

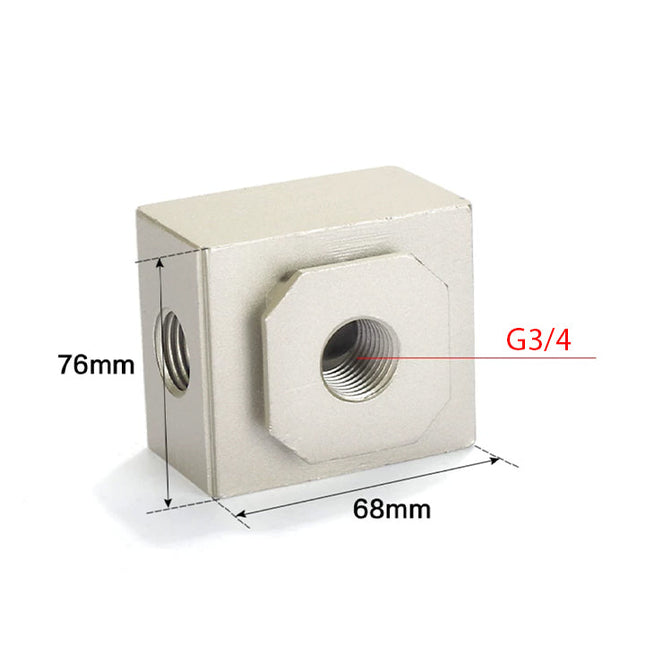

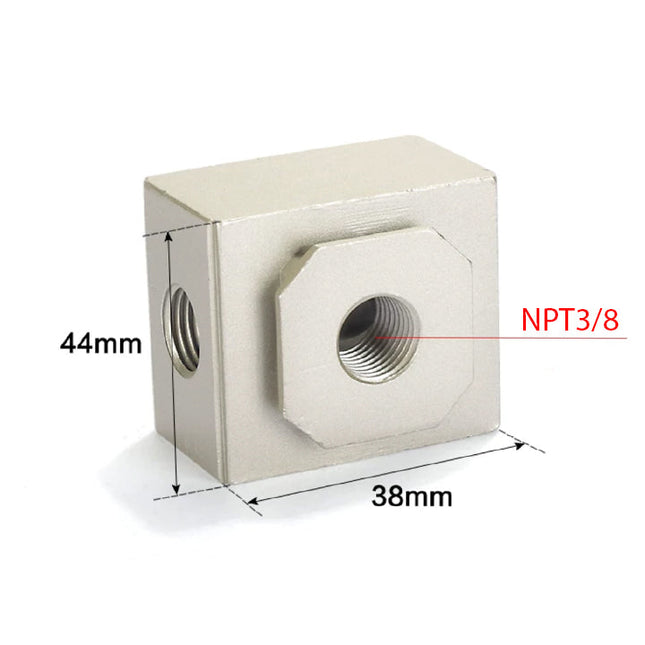

Product Features
- Installed between the GA series regulator (or filter regulator) and the GA series lubricator to branch the airflow. One path enters the lubricator for oil lubrication, while the other path(s) go directly to the equipment for use.
- Multiple types of brackets (T-type, L-type, U-type) are available for connecting with regulators and lubricators.
Specifications
| Model |

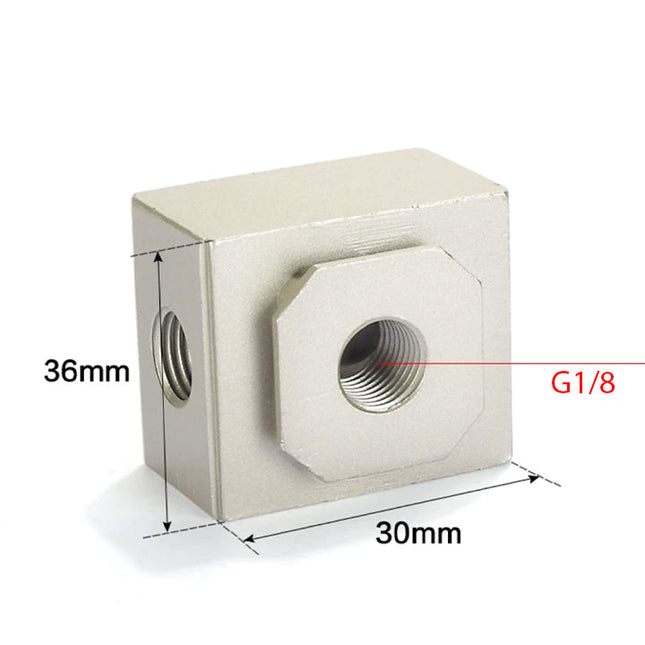

GA200-06 |

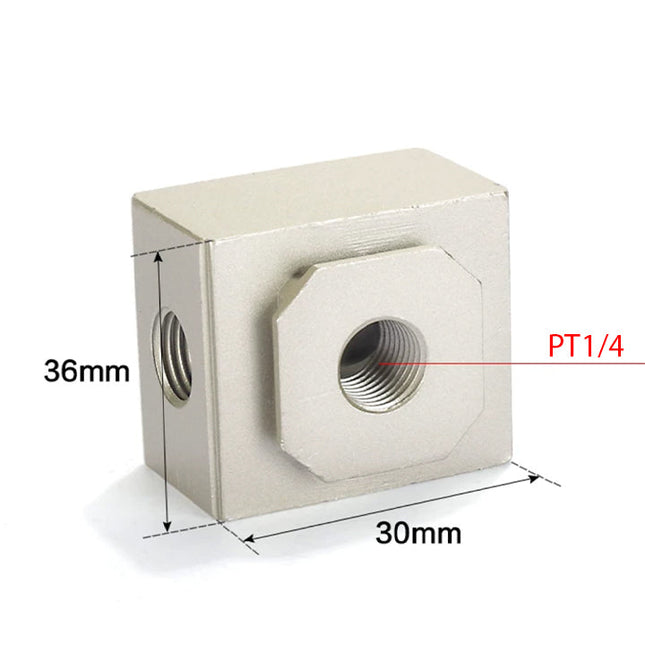

GA200-08 |

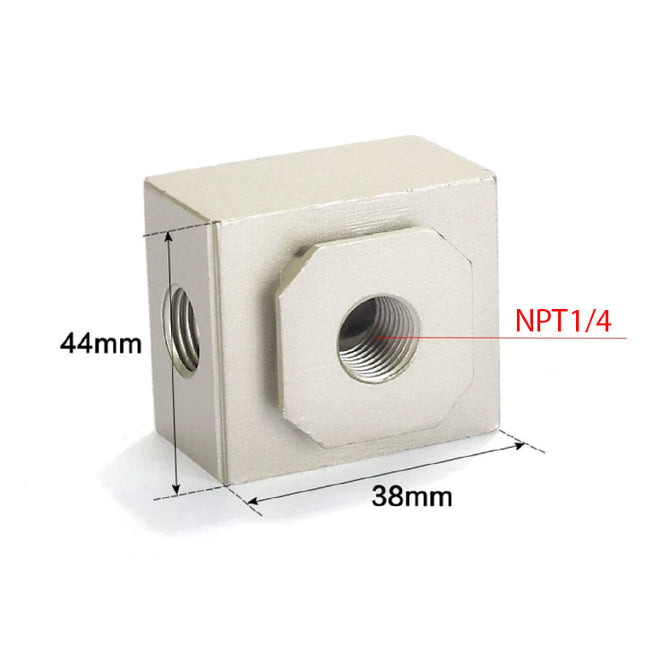

GA300-08 |
GA300-10 |

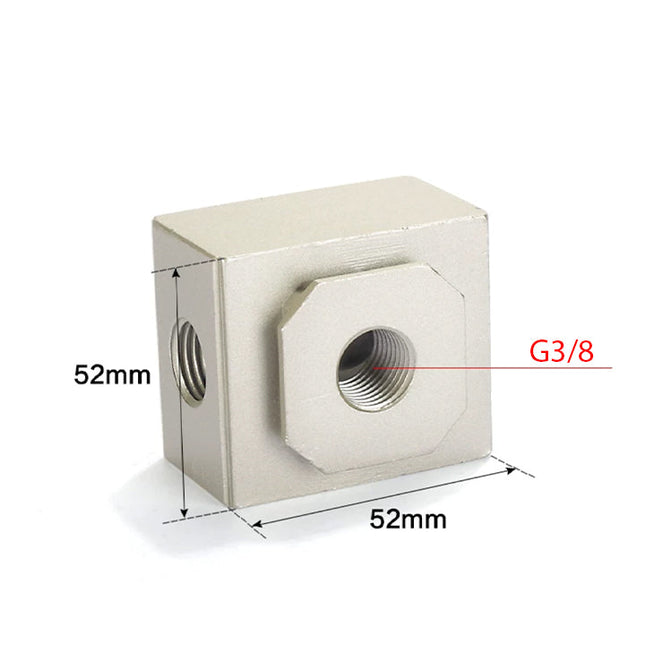

GA400-10 |

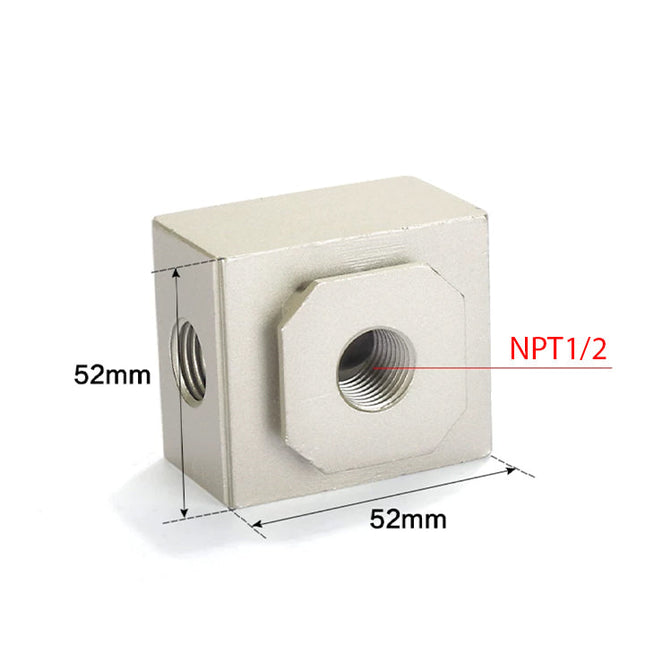

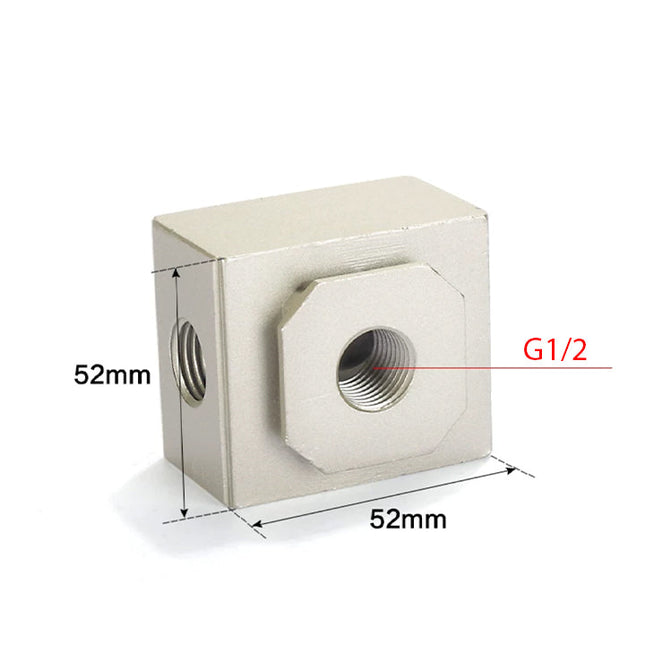

GA400-15 |

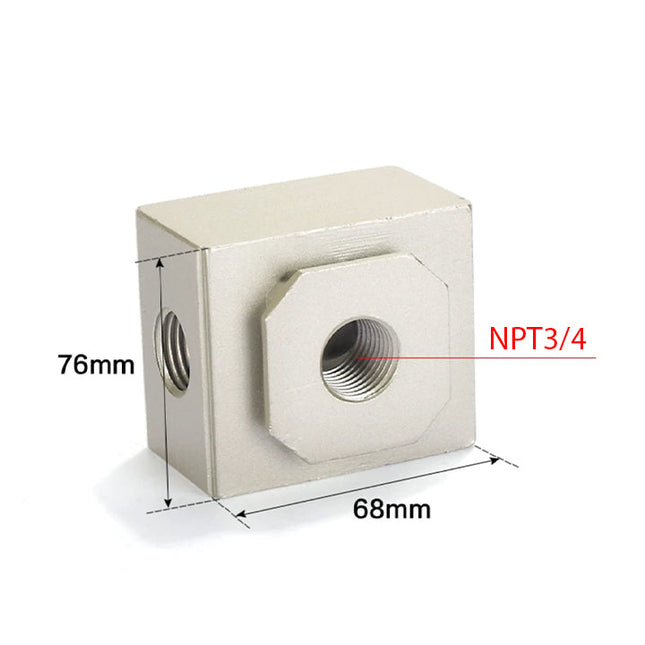

GA600-20 |

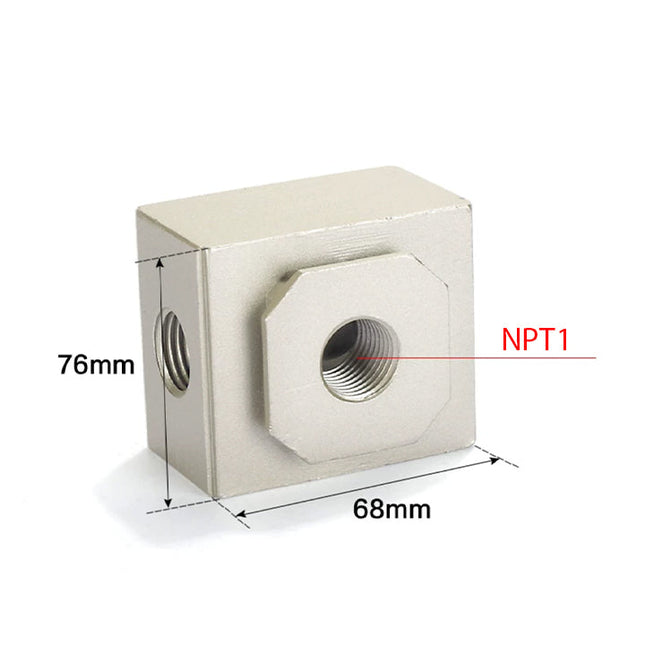

GA600-25 |
| Working Medium |
Air |
| Port Size [Note 1] |
PT1/8 |
PT1/4 |
PT1/4 |
PT3/8 |
PT3/8 |
PT1/2 |
PT3/4 |
PT1 |
| Number of Ports |
Four-way |
| Operating Pressure Range |
0–1.0MPa (0–145psi) |
| Max. Proof Pressure |
1.5MPa (215psi) |
| Operating Temperature Range |
-20–70°C |
Note 1: G and NPT thread types are available.
Product Ordering Code
| Position |
Description |
Options & Values |
| 1 |
Series Code |
- GA200: 200 series distribution block
- GA300: 300 series distribution block
- GA400: 400, 500 series distribution block
- GA600: 600 series distribution block
|
| 2 |
Port Size |
- 06: 1/8"
- 08: 1/4"
- 10: 3/8"
- 15: 1/2"
- 20: 3/4"
- 25: 1"
|
| 3 |
Thread Code |
- Blank: PT thread
- G: G thread
- T: NPT thread
|
