Product Features
- The oil drip structure uses a gap seal form, making the oil supply adjustment more stable and reliable.
- The oil supply adjustment ring can only rotate once, and the basic size of the oil drip is in a linear distribution. The amount of oil supplied can be calculated approximately based on the scale ring position.
- Special oil drip nozzle structure produces negative pressure at the outlet, resulting in a low atomization flow rate.
- Can be refilled with oil without stopping the air supply; large oil bowl capacity.
- Bowl material options are PC, metal, or nylon, which can satisfy the needs of different environments.
- An optional fixed bracket can be selected for installation.
Specifications
| Model |
GAL200-06 |
GAL200-08 |
GAL300-08 |
GAL300-10 |
GAL300-15 |
GAL400-10 |
GAL400-15 |
GAL500-20 |
GAL600-20 |
GAL600-25 |
| Working Medium |
Air |
| Port Size [Note 1] |
PT1/8 |
PT1/4 |
PT1/4 |
PT3/8 |
PT1/2 |
PT3/8 |
PT1/2 |
PT3/4 |
PT3/4 |
PT1 |
| Operating Pressure Range |
0.05–0.9MPa (7–130psi) |
| Proof Pressure |
1.5MPa (215Psi) |
| Operating Temperature Range |
-5–70°C (No freezing) |
| Recommended Lubricating Oil |
ISO VG 32 or equivalent oil |
| Oil Bowl Capacity |
36CC |
98CC |
185CC |
225CC |
410CC |
| Weight |
200g |
370g |
660g |
700g |
1040g |
Note 1: G and NPT thread types are available.
Product Ordering Code
| Position |
Description |
Options & Values |
| 1 |
Series Code |
- GAL200: GA200 Series Lubricator
- GAL300: GA300 Series Lubricator
- GAL400: GA400 Series Lubricator
- GAL500: GA500 Series Lubricator
- GAL600: GA600 Series Lubricator
|
| 2 |
Body Material |
- Blank: PC
- C: Metal
- N: Nylon
|
| 3 |
Port Size |
- 06: 1/8"
- 08: 1/4"
- 10: 3/8"
- 15: 1/2"
- 20: 3/4"
- 25: 1"
|
| 4 |

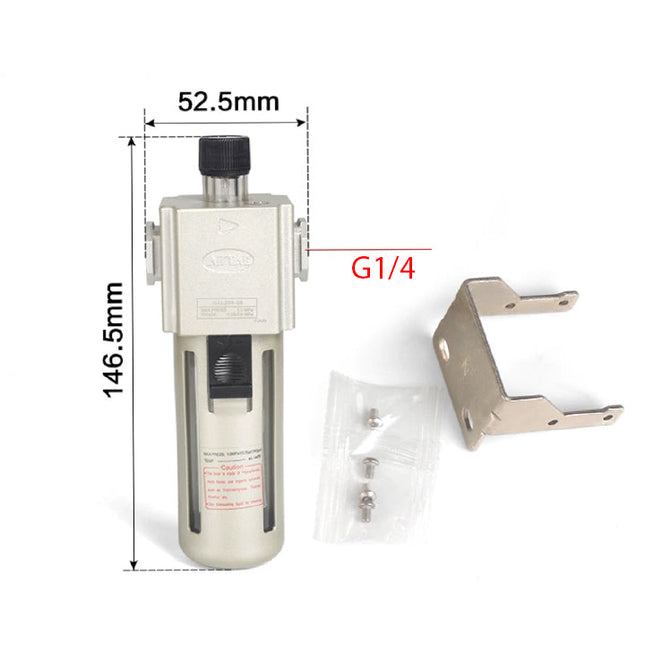

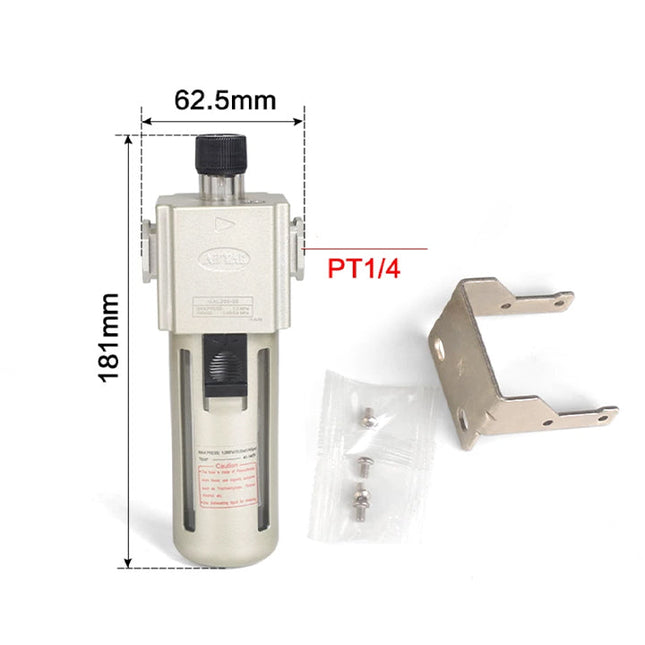

Bracket Code |
- Blank: With Bracket
- J: Without Bracket
|
| 5 |
Thread Code |
- Blank: PT thread
- G: G thread
- T: NPT thread
|
