Product Features
- In addition to the standard PC bowl of the GA200 series, this series also has the characteristic of being lightweight.
- The short-type PC bowl saves installation space and is suitable for compact environments.
- The filter drain method is semi-automatic + manual drain.
Product Ordering Code
GTC, GTFC, GTFR Series
Position |
Description |
Options & Values |
1 |
Series Code |

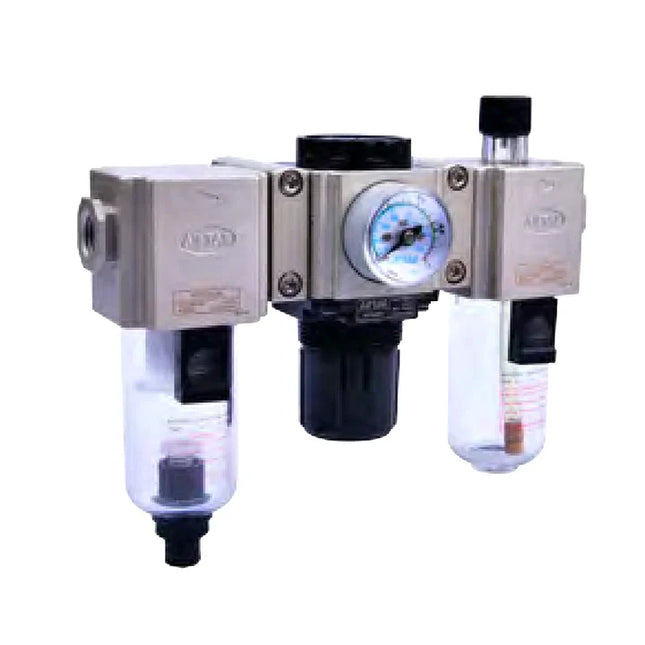

- GTC200: GT200 Series Equipment Adjustment Package
- GTFC200: GT200 Series Filter Regulator Lubricator

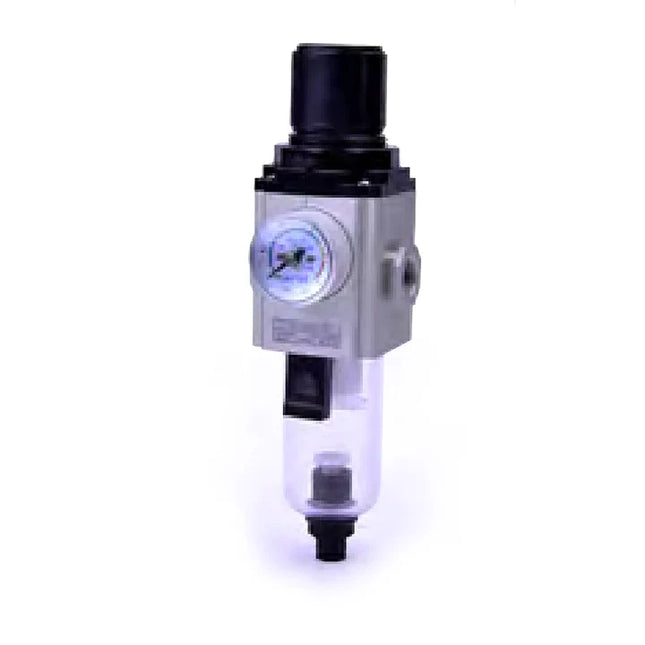

- GTFR200: GT200 Series Filter Regulator
|
2 |
Port Size |
|
3 |
Model Type Code |
- S: Standard
- L: Low Pressure Type [Note 1]
|
4 |
Bracket Code |
- Blank: With Bracket
- J: Without Bracket
|
5 |
Pressure Gauge Code |
- Blank: With Pressure Gauge
- N: Without Pressure Gauge
|
6 |
Filter Precision |
|
7 |
Thread Code |
- Blank: PT thread (MPa/psi)
- G: G thread (bar/MPa)
- T: NPT thread (psi/bar)
|
8 |
Overflow Code |
- Blank: With overflow
- K: Without overflow
|
Note 1: The adjustable range for the low-pressure model is 0.15–0.4MPa (20–58psi).
GTF Series
Position |
Description |
Options & Values |
1 |
Series Code |

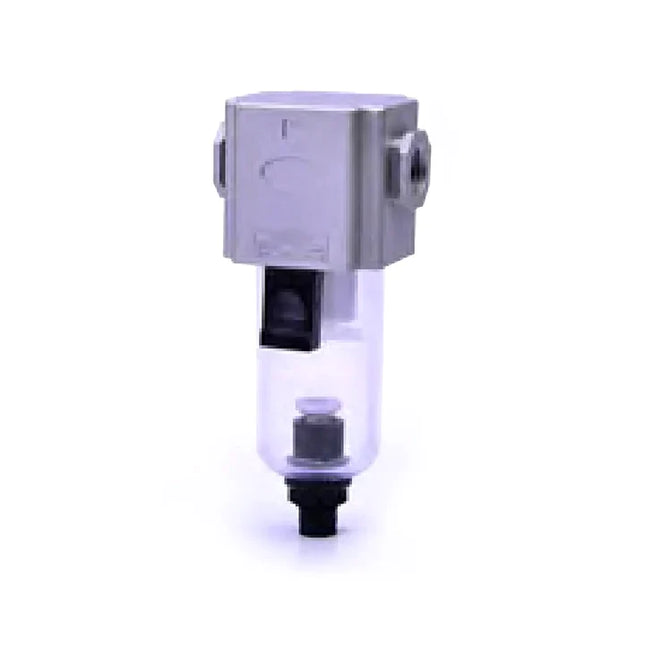

- GTF200: GT200 Series Filter
|
2 |
Port Size |
|
3 |
Bracket Code |
- Blank: With Bracket
- J: Without Bracket
|
4 |
Filter Precision |
|
5 |
Thread Code |
- Blank: PT thread
- G: G thread
- T: NPT thread
|
GTL Series
Position |
Description |
Options & Values |
1 |
Series Code |
- GTL200: GT200 Series Lubricator
|
2 |
Port Size |
|
3 |
Bracket Code |
- Blank: With Bracket
- J: Without Bracket
|
4 |
Thread Code |
- Blank: PT thread
- G: G thread
- T: NPT thread
|
