M3 Series Valve
Product Features
- The M3B, M3C, and M3D series valves are lightweight, equipped with a silencer to reduce noise and pollution.
- The M3, M3B, and M3L series require additional force for operation, but offer various switch stroke options and can be reset by positioning.
- The M3R, M3V, M3PF, M3PM, M3PP, and M3PL series are three-position valves, with the M3PL series having a manual reset function. Under normal conditions of use, the valve remains in the set position.

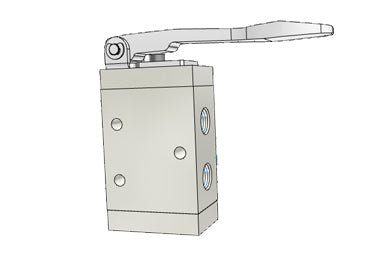

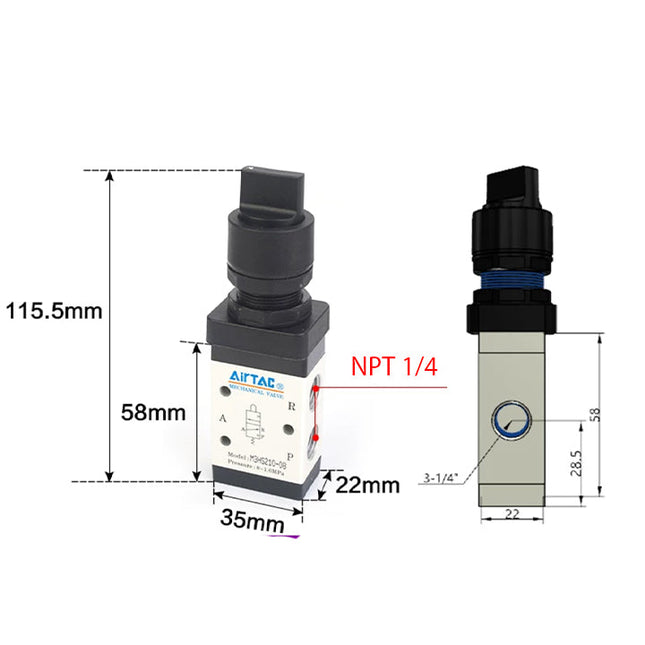

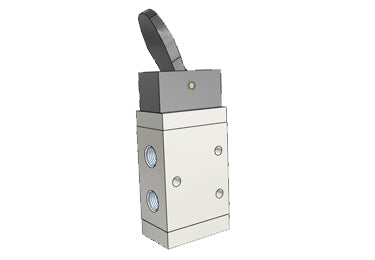

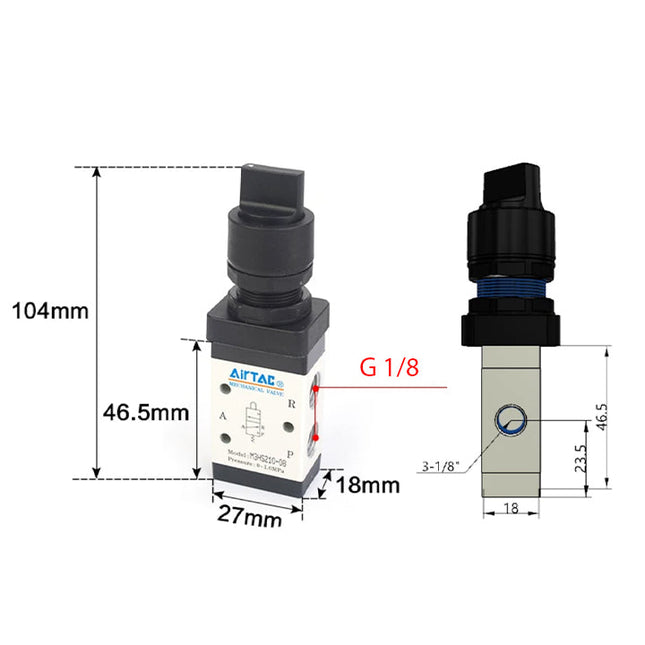

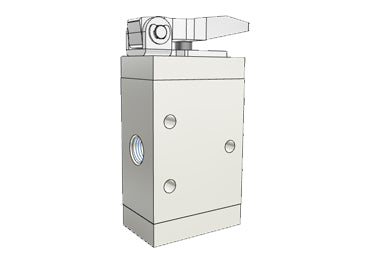

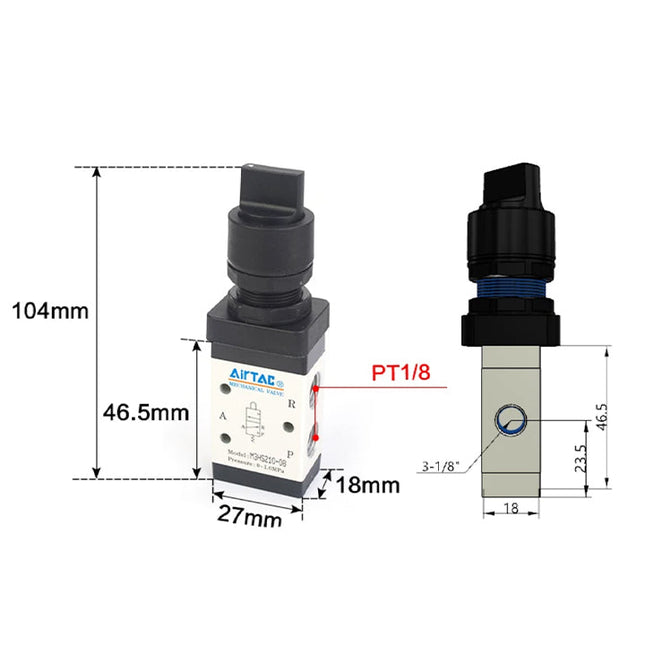

- The M3HS series are two-position three-way valves.
- Compact structure, easy to install and use.
- The connecting components of the M3B, M3C, M3D, M3R, and M3L series are made of metal, ensuring sturdiness, durability, and stable performance.
Specifications
| Model | M3B | M3C | M3D | M3R | M3L | M3Y | M3PF | M3PM | M3PP | M3PL | M3HS | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working Medium | Air (filtered by a 40μm or above filter screen) | ||||||||||||
| Actuation Style | External Pilot Operated | ||||||||||||
| Port Size [Note 1] | 05: M5; 06: PT1/8; 08: PT1/4 | ||||||||||||
| Effective Area (Cv) | Mini Type | 05: 2.5mm² (Cv=0.14) | |||||||||||
| 110 Type or 210 Type | 06: 8.0mm² (Cv=0.45) 06: 9.0mm² (Cv=0.50); 08: 12.0mm² (Cv=0.67) |
||||||||||||
| Number of Positions | Three-position Two-way | ||||||||||||
| Lubrication | Not required | ||||||||||||
| Operating Pressure Range | 0~1.0MPa (0~145psi) | ||||||||||||
| Proof Pressure | 1.5MPa (215psi) | ||||||||||||
| Operating Temperature | -20~70°C | ||||||||||||
| Body Material | Aluminum Alloy | ||||||||||||
Note:
1. G thread and NPT thread are optional.
2. If lubrication is added, do not stop. It is recommended to use ISO VG32 or equivalent lubricating oil.
1. G thread and NPT thread are optional.
2. If lubrication is added, do not stop. It is recommended to use ISO VG32 or equivalent lubricating oil.
Product Ordering Code
Standard Type
M3 PM 210 06 R □
① ② ③ ④ ⑤ ⑥
① ② ③ ④ ⑤ ⑥
| ① Structure Code | ② Actuator Code | ③ Series Code | ④ Port Size Code | ⑤ Push Button Color Code | ⑥ Thread Type Code |
|---|---|---|---|---|---|
| M3: 3-Port 2-Position |

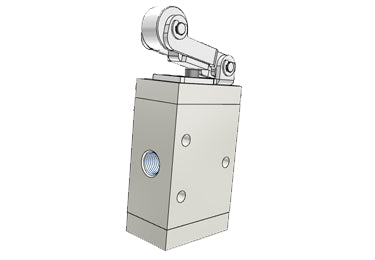

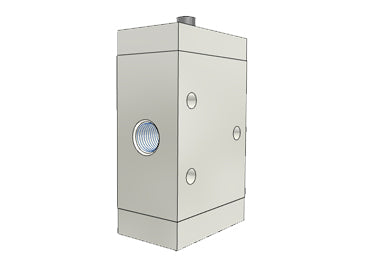

B: Basic Mechanical Type C: Long Plunger Type D: Short Plunger Type Y: Roller Plunger Type R: Roller Lever Mechanical Type V: One-way Roller Lever Type PL: Mushroom Latching Hand Valve PP: Flat Round Pushbutton Hand Valve PM: Mushroom Pushbutton Hand Valve PF: Selector Hand Valve HS: Toggle Hand Valve |
110: 100 Series Single 210: 200 Series Single |
06: 1/8" 08: 1/4" |
No code R: Red G: Green B: Black |
Blank: PT Thread G: G Thread T: NPT Thread |
Miniature Type
M3 R 05
① ② ③
① ② ③
| ① Model | ② Actuator Code | ③ Port Size |
|---|---|---|
| M3: 3-Port 2-Position |
B: Basic Mechanical Type R: Roller Lever Mechanical Type L: One-way Roller Lever Type |
05: M5 |
