M5 Series Valve
Product Features
- The air inlet is located on the valve body, equipped with a silencer for noise reduction and less pollution.
- The M5B, M5C, and M5L series require additional external force for operation, offering various switch stroke options and position reset functionality.

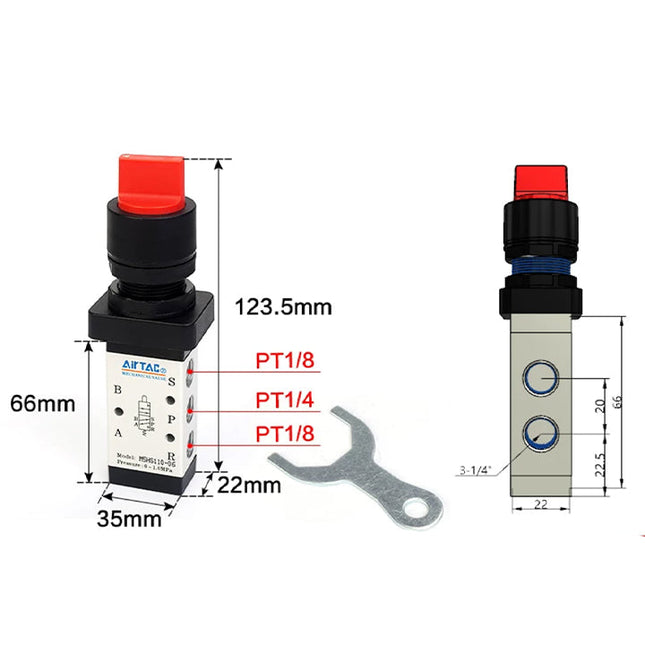

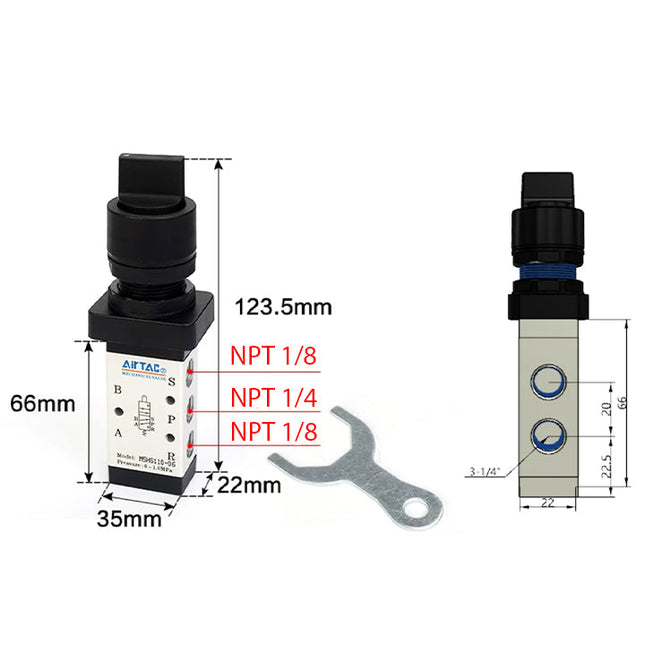

- The M5D, M5Y, M5R, M5V, M5PF, M5PM, M5PP, M5PL, and M5HS series are manually operated, with various structural forms and convenience for use under different conditions.
- The M5PL, M5PP, M5PM, M5PF, and M5HS series are two-position three-way valves with manual reset function.
- The valve spool has good sealing performance, sensitive response, and long service life.
- Compact structure for easy installation and use.
- The connecting parts of M5B, M5C, M5D, M5Y, M5R, and M5L series are made of metal, ensuring sturdiness, durability, and stable performance.
Specifications
| Model | M5B | M5C | M5D | M5R | M5L | M5Y | M5PM | M5PP | M5PF | M5PL | M5HS | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working Medium | Air (filtered by a 40μm or above filter screen) | |||||||||||
| Actuation Style | External Pilot Operated | |||||||||||
| Port Size [Note 1] | 05: M5; 06: PT1/8; 08: PT1/4 | |||||||||||
| Effective Area (Cv) | Mini Type | 05: 2.5mm² (Cv=0.14) | ||||||||||
| 110 Type or 210 Type | 06: 8.0mm² (Cv=0.45) 06: 9.0mm² (Cv=0.50); 08: 12.0mm² (Cv=0.67) |
|||||||||||
| Number of Positions | Two-position Five-way | |||||||||||
| Lubrication [Note 2] | Not required | |||||||||||
| Operating Pressure Range | 0~1.0MPa (0~145psi) | |||||||||||
| Proof Pressure | 1.5MPa (215psi) | |||||||||||
| Operating Temperature | -20~70°C | |||||||||||
| Body Material | Aluminum Alloy | |||||||||||
Note:
1. G thread and NPT thread are optional.
2. If lubrication is added, do not stop. It is recommended to use ISO VG32 or equivalent lubricating oil.
1. G thread and NPT thread are optional.
2. If lubrication is added, do not stop. It is recommended to use ISO VG32 or equivalent lubricating oil.
Product Ordering Code
Standard Type
M5 PM 210 06 R □
① ② ③ ④ ⑤ ⑥
① ② ③ ④ ⑤ ⑥
| ① Structure Code | ② Actuator Code | ③ Series Code | ④ Port Size Code | ⑤ Push Button Color Code | ⑥ Thread Type Code |
|---|---|---|---|---|---|
| M5: 5-Port 2-Position |

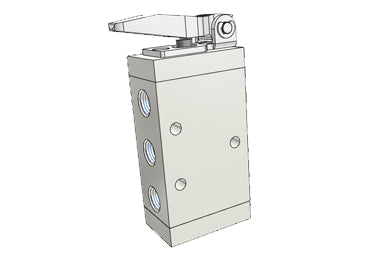

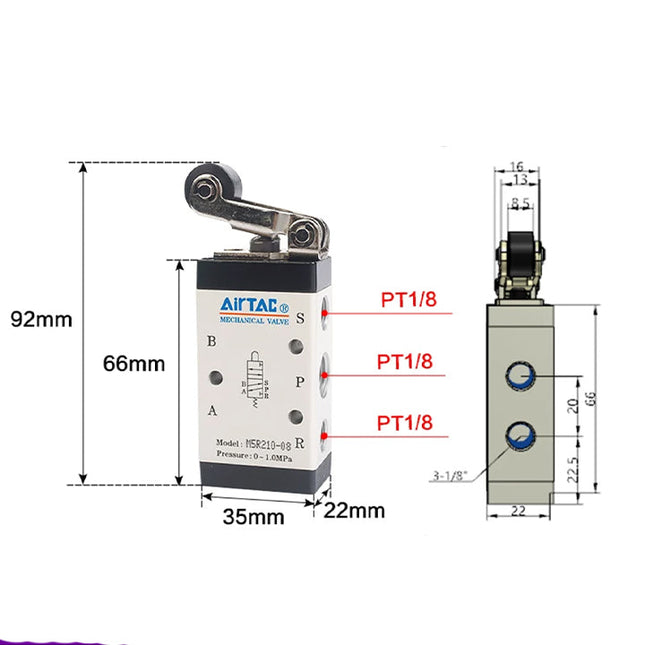

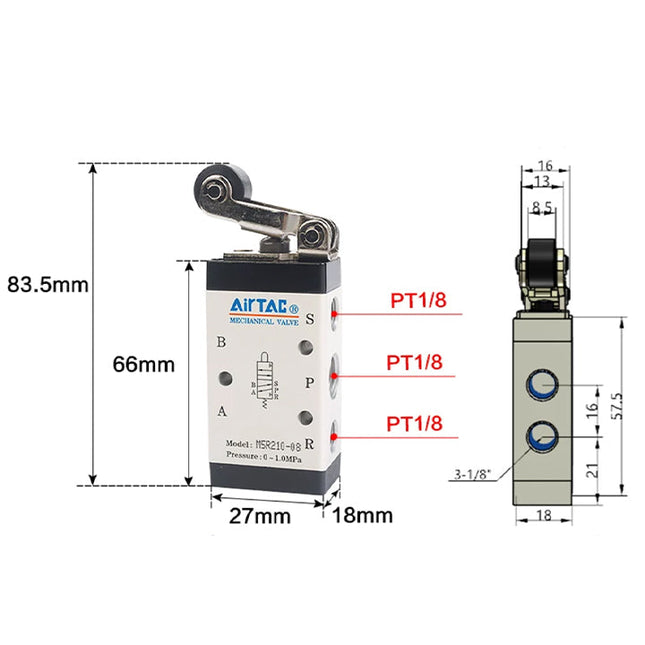

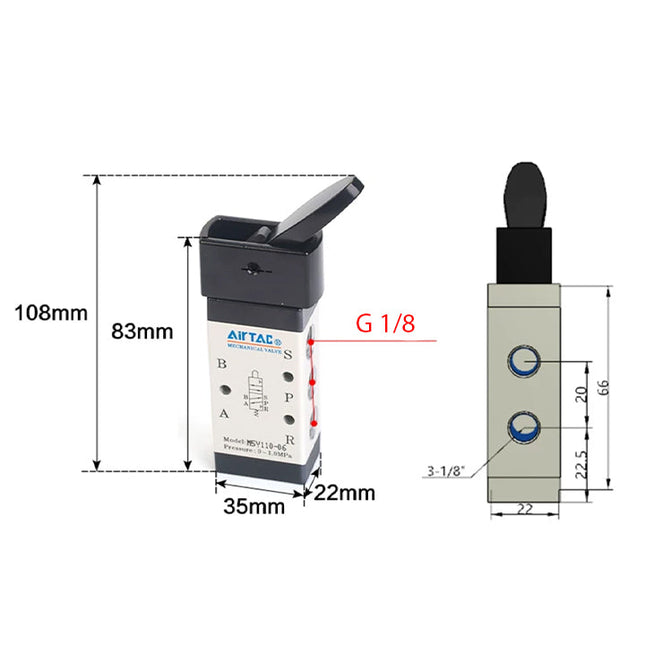

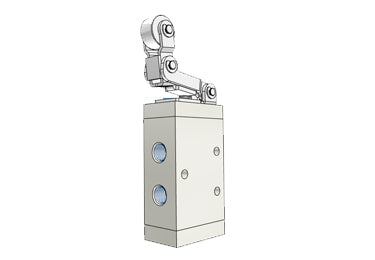

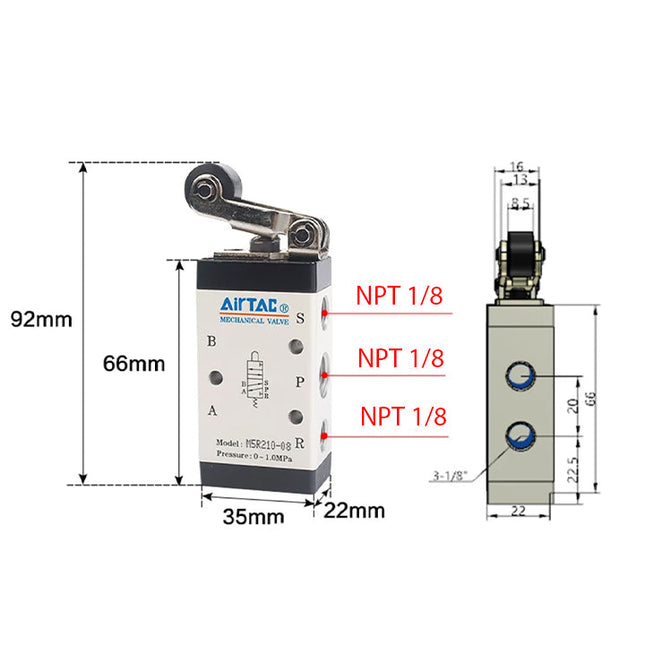

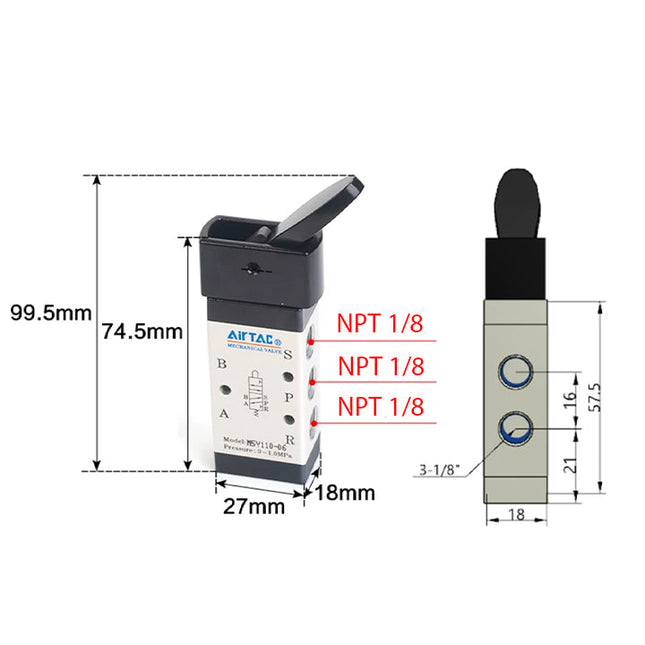

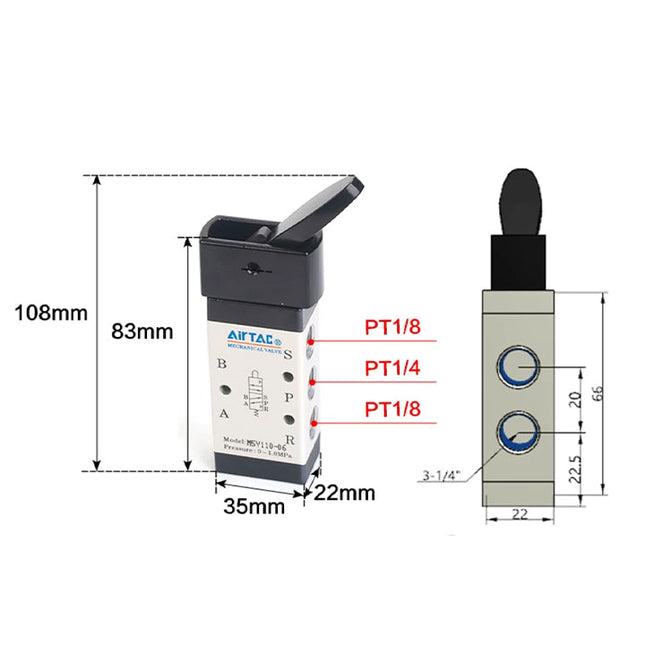

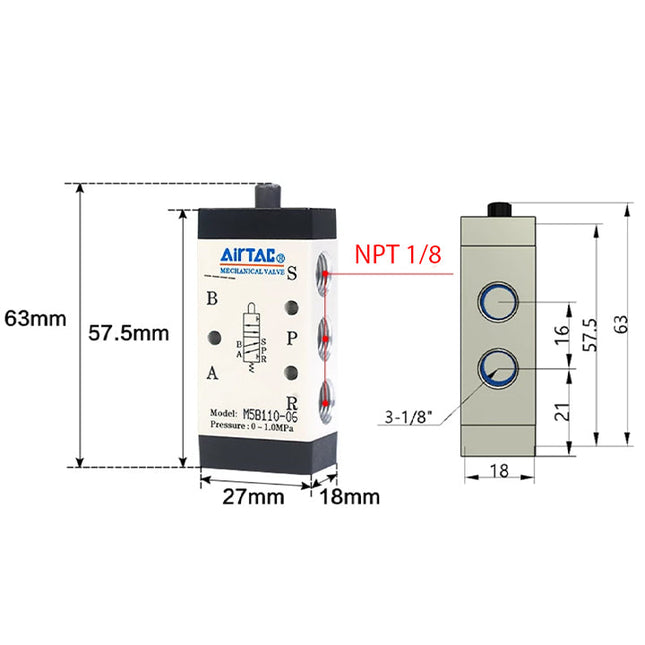

B: Basic Mechanical Type C: Long Plunger Type D: Short Plunger Type Y: Roller Plunger Type R: Roller Lever Mechanical Type L: One-way Roller Lever Mechanical Type (Long) |
110: 100 Series Single 210: 200 Series Single |
06: 1/8" 08: 1/4" |
No code |

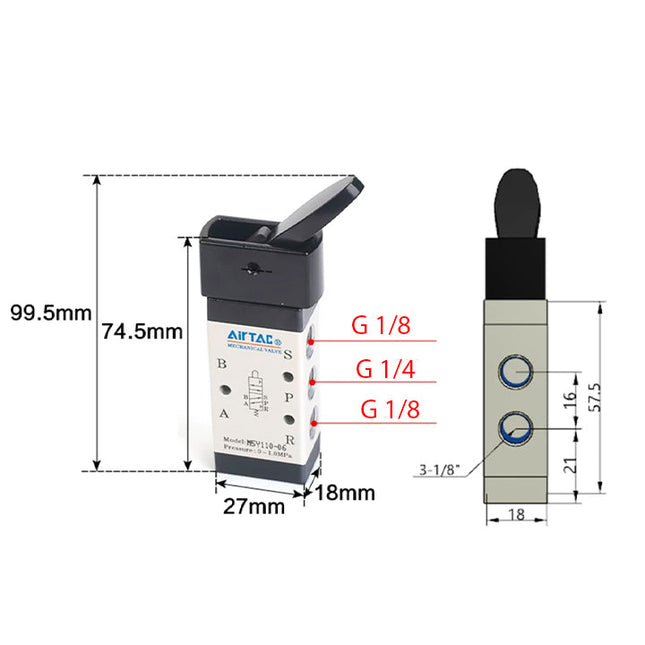

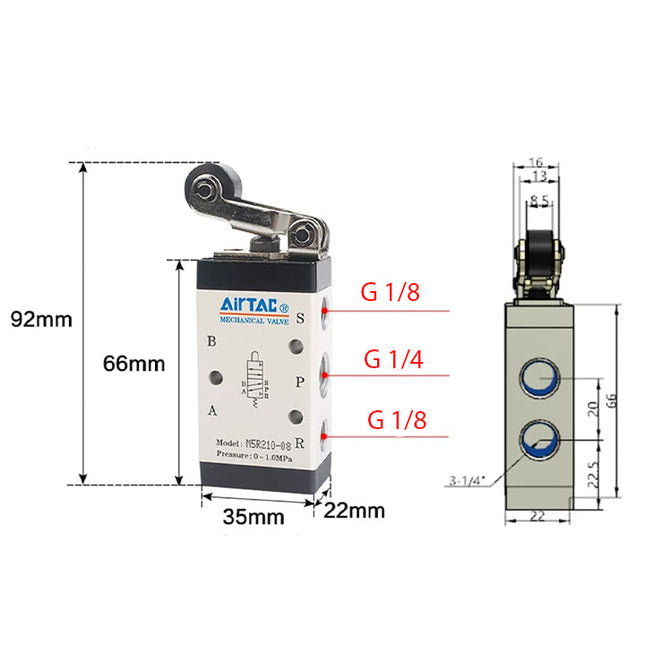

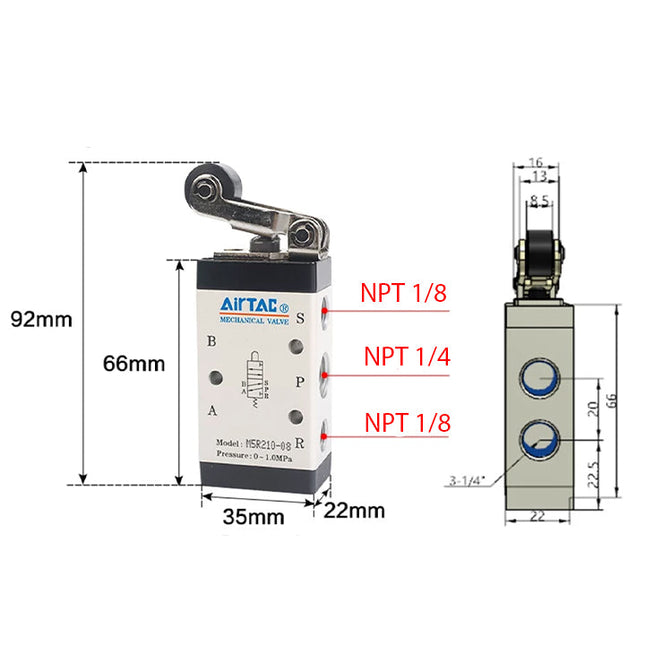

Blank: PT Thread G: G Thread T: NPT Thread |
|

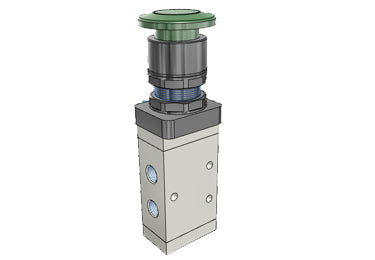

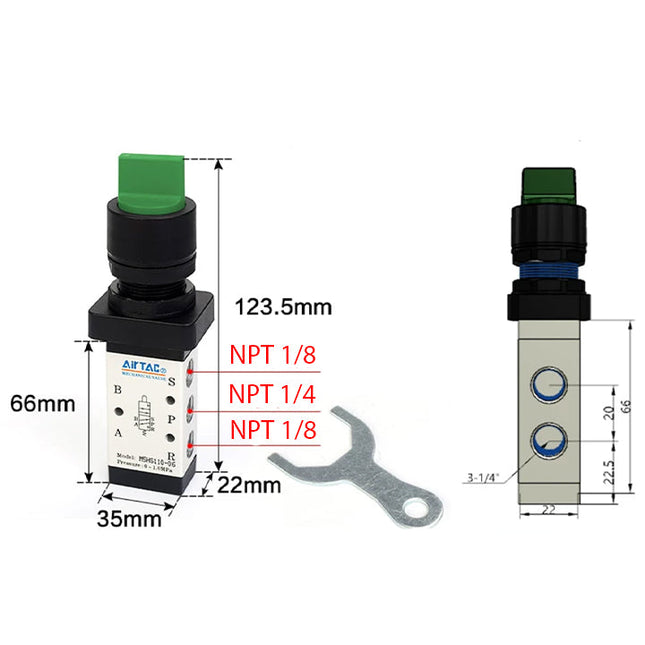

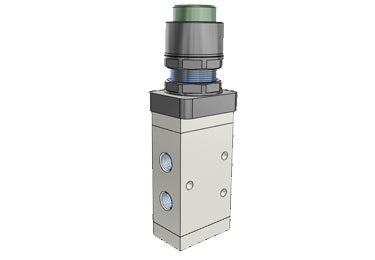

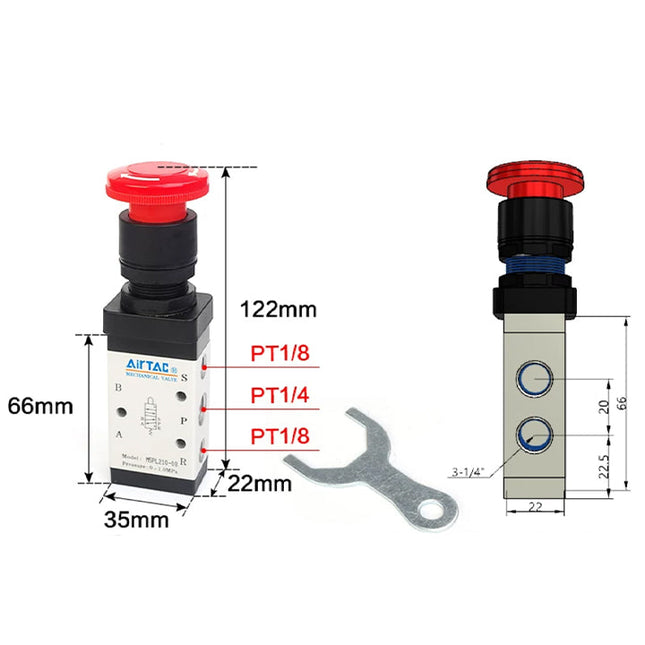

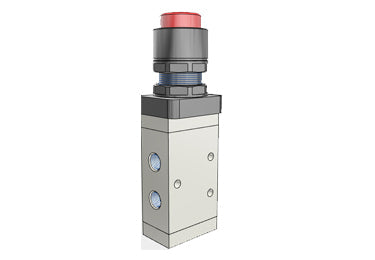

PL: Rotary Push-Button Manual Valve PF: Flat Round Pushbutton Hand Valve PM: Mushroom Pushbutton Hand Valve HS: Selector Hand Valve PP: Mushroom Hand Valve |
Blank: Red R: Red G: Green B: Black |
Miniature Type

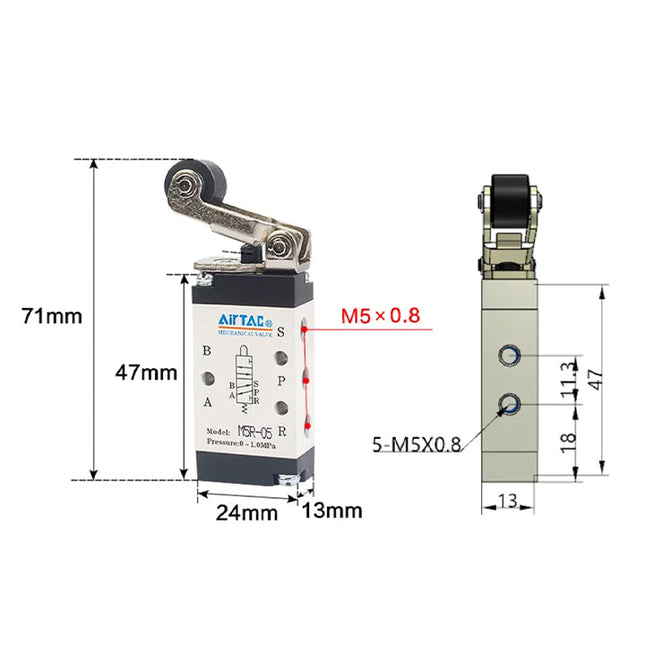

M5 R 05
① ② ③
① ② ③
| ① Model | ② Actuator Code | ③ Port Size |
|---|---|---|
| M5: 5-Port 2-Position |
B: Basic Mechanical Type R: Roller Lever Mechanical Type L: One-way Roller Lever Type |
05: M5 |
