NRV Series Check Valve
Product Features
- Only allows air to flow in one direction and prevents backflow.
- Used to prevent backflow phenomena that can occur due to pressure drops in pneumatic circuits or a sudden drop in pressure from a large volume of compressed air.
- Large effective ventilation area.
- The internal part uses an imported POM valve core and an imported rubber sealing method, resulting in a simple and compact structure.
Specifications

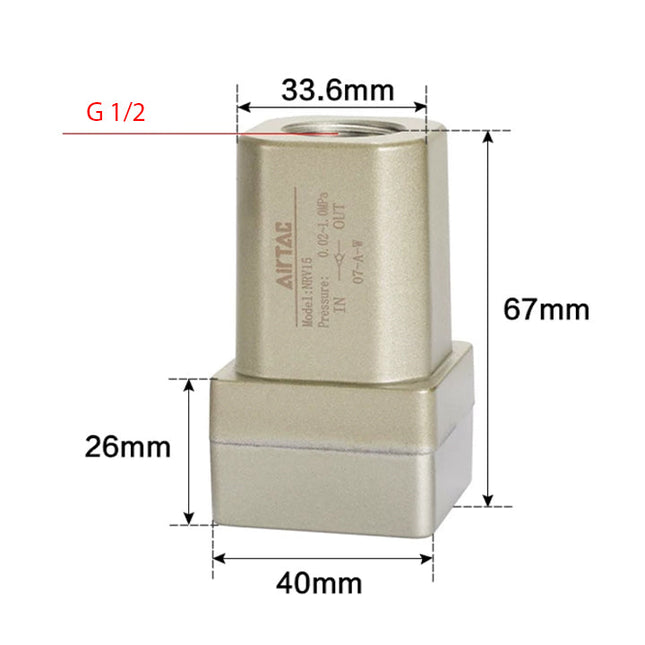

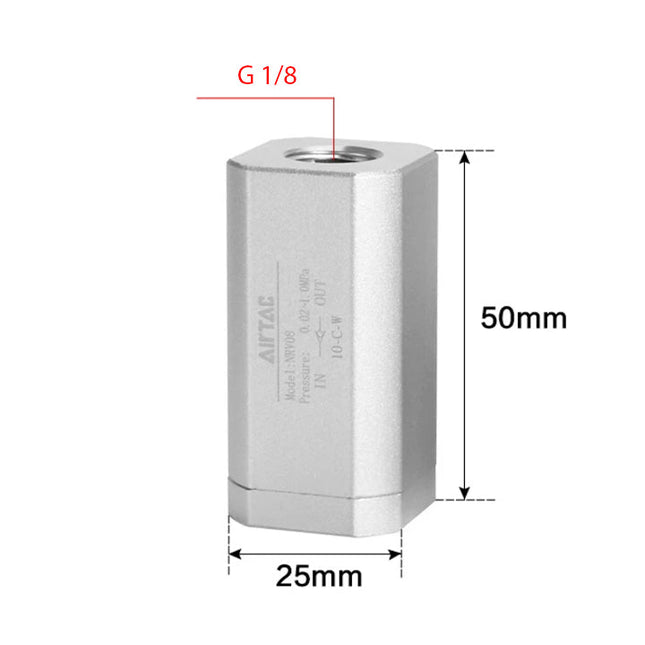

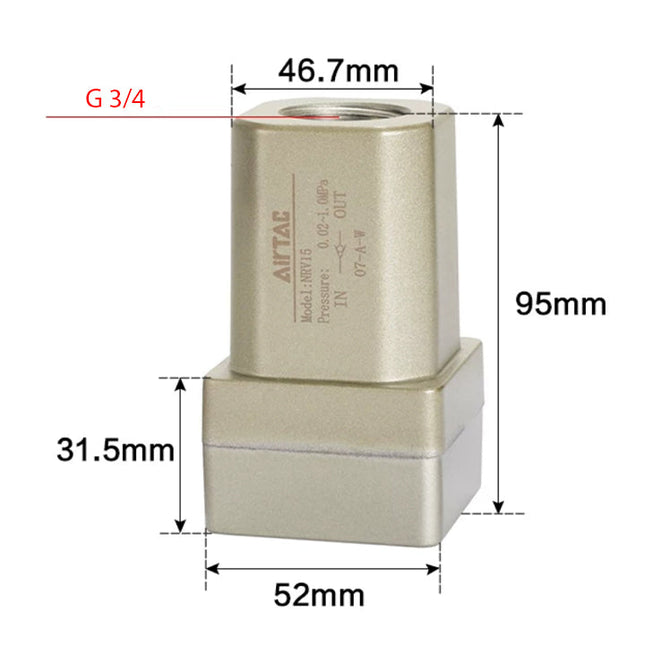

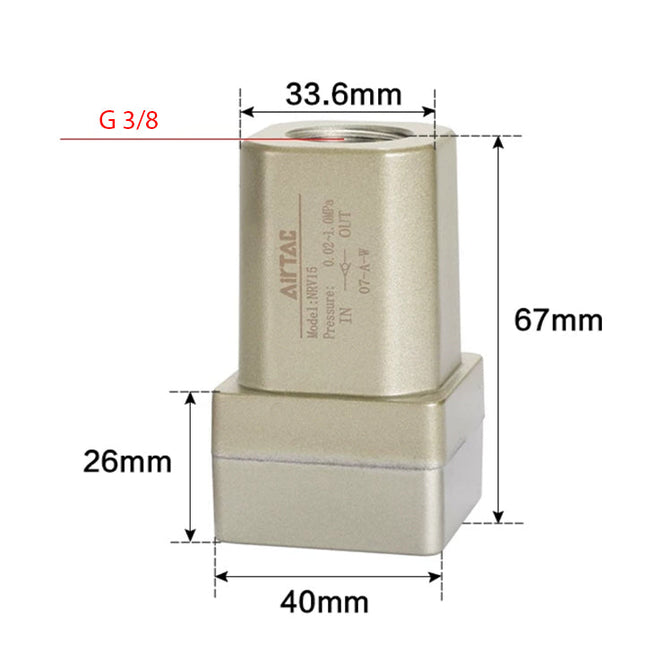

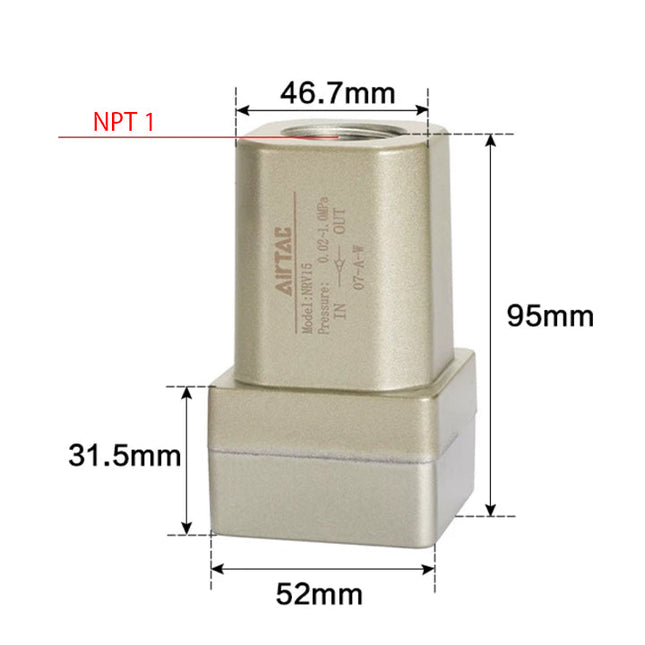

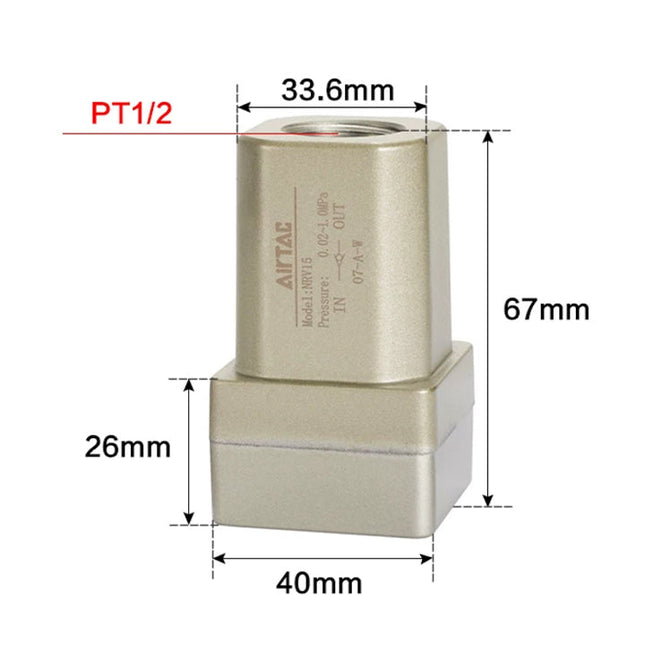

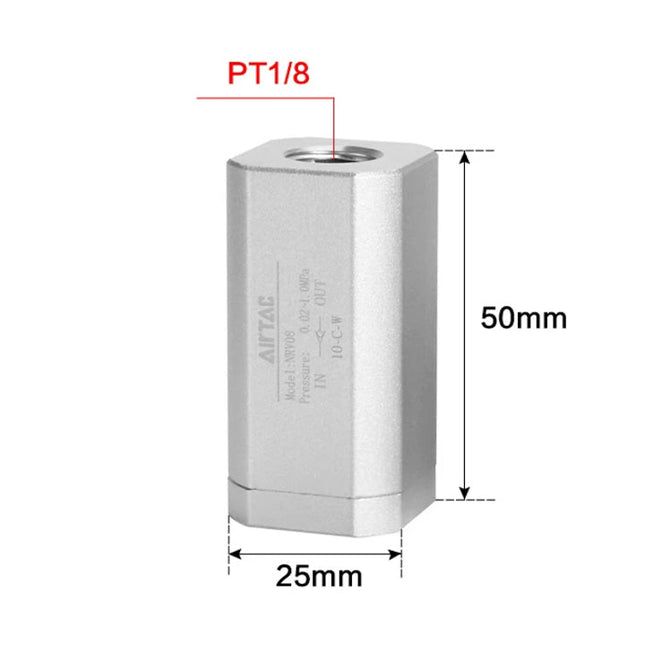

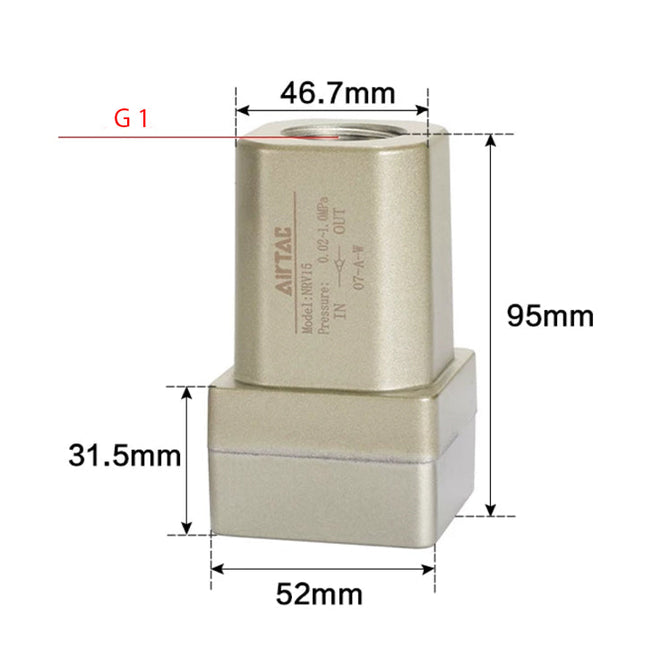

Model | NRV06 | NRV08 | NRV10 | NRV15 | NRV20 | NRV25 |
---|---|---|---|---|---|---|
Working Medium | Air (filtered by a 40μm or above filter screen) | |||||

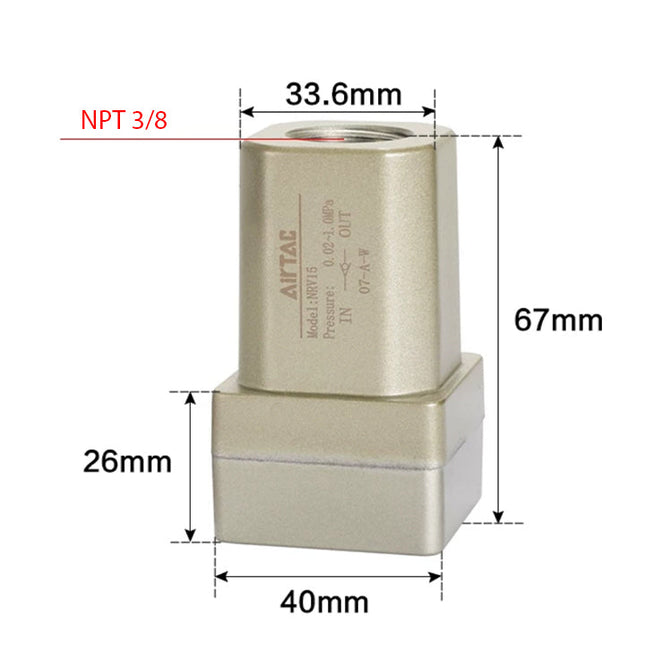

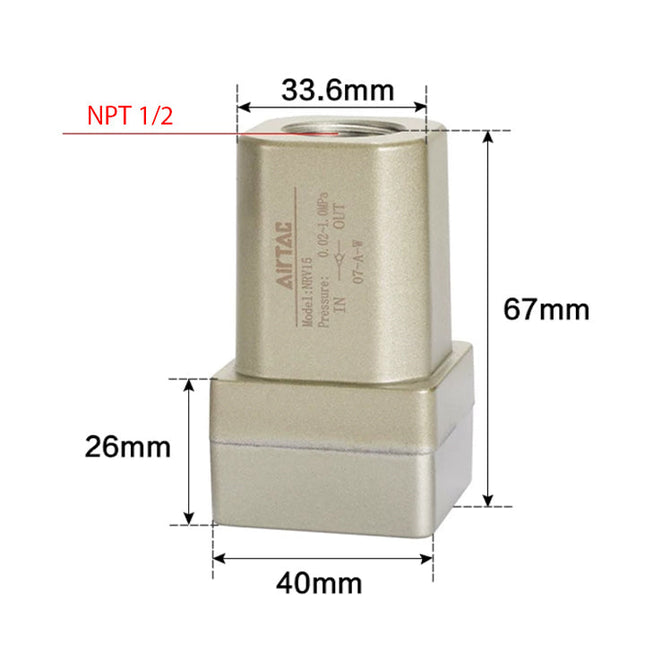

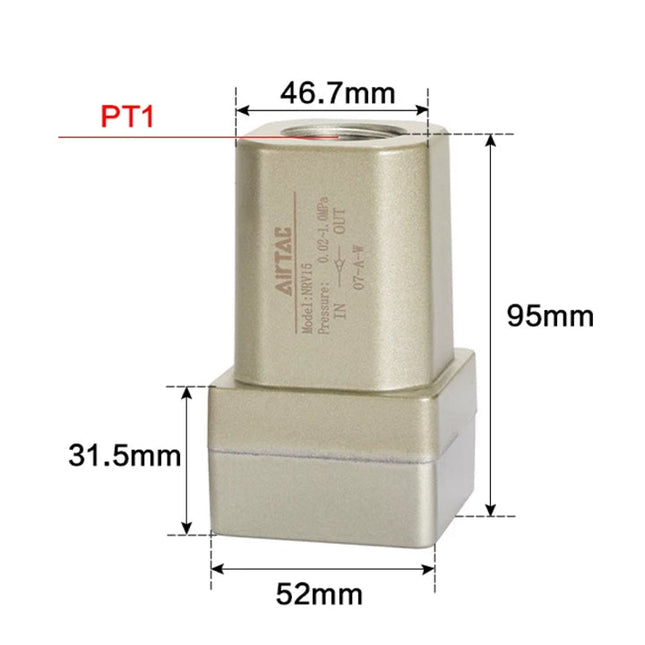

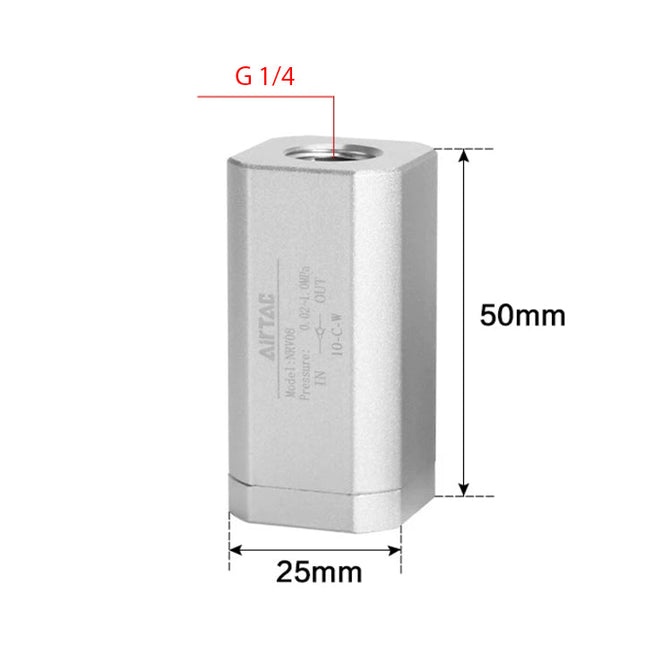

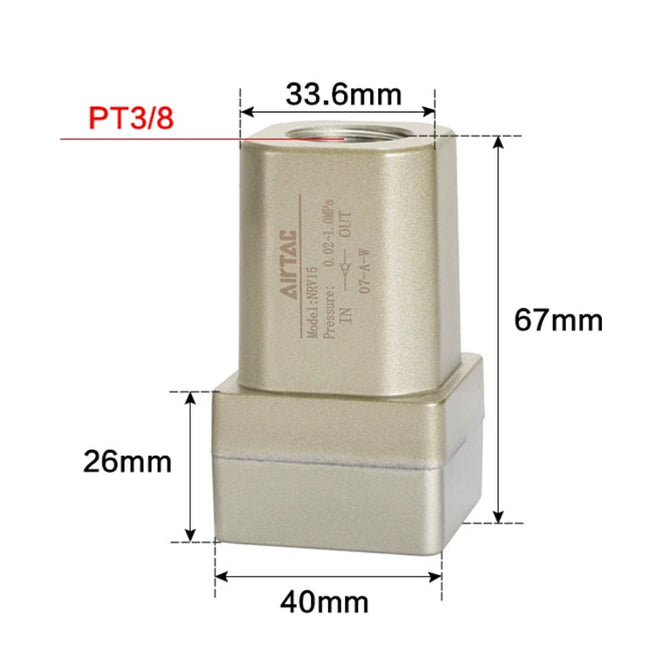

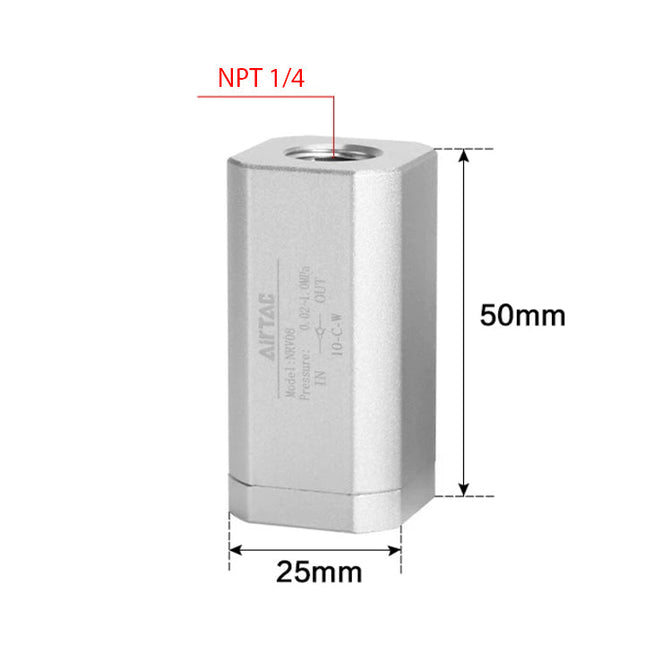

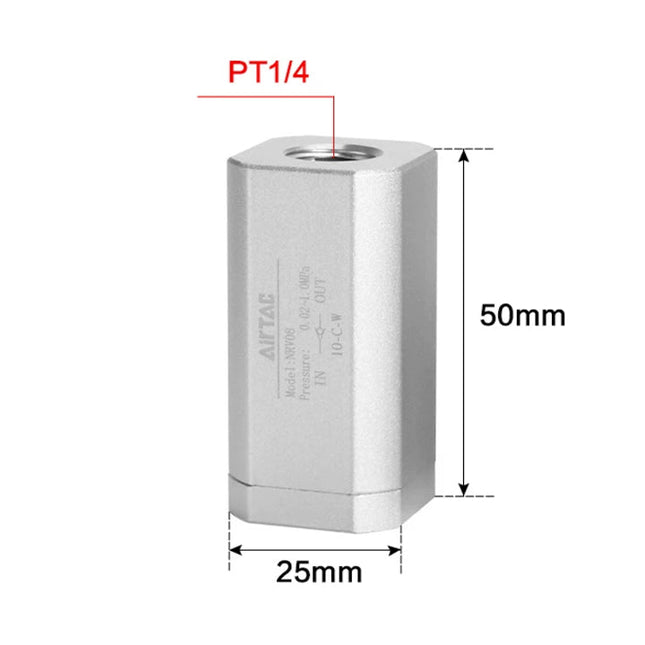

Port Size [Note 1] | PT1/8 | PT1/4 | PT3/8 | PT1/2 | PT3/4 | PT1 |
Effective Area mm²(Cv) | 18(1.0) | 27(1.5) | 60(3.33) | 73(4.06) | 230(12.78) | 260(14.44) |
Operating Pressure Range | 0.02~1.0MPa (2.9~145psi) | |||||
Proof Pressure | 1.5MPa (215psi) | |||||
Operating Temperature | -20~70°C | |||||
Body Material | Aluminum Alloy |
Product Ordering Code
① ② ③
① Model Code | ② Port Size | ③ Thread Type Code |
---|---|---|
NRV: Check Valve |
06: 1/8" 08: 1/4" 10: 3/8" 15: 1/2" 20: 3/4" 25: 1" |
Blank: PT Thread G: G Thread T: NPT Thread |
