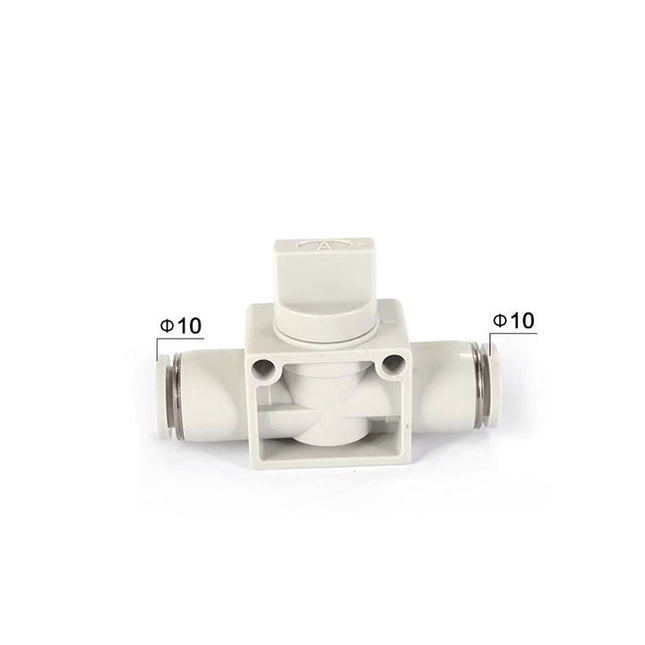

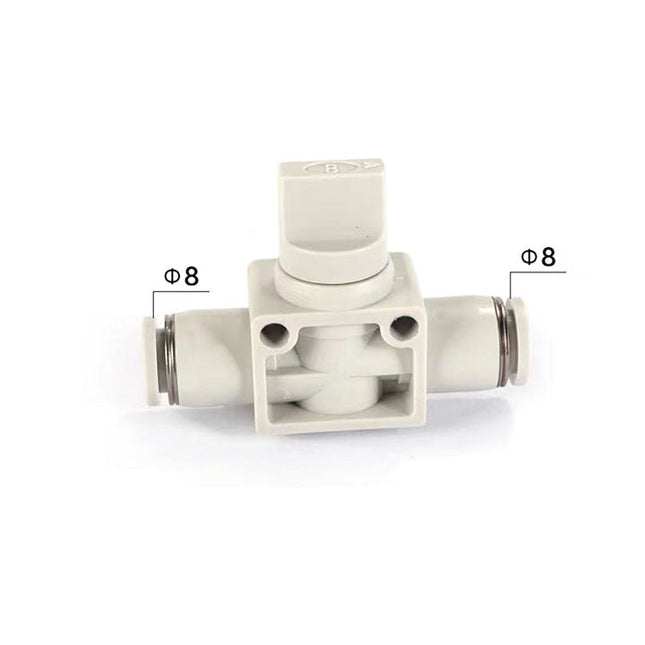

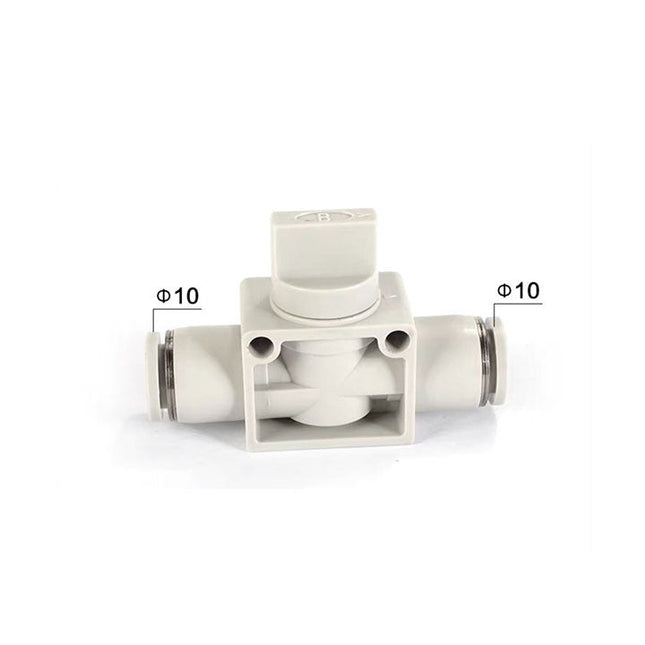

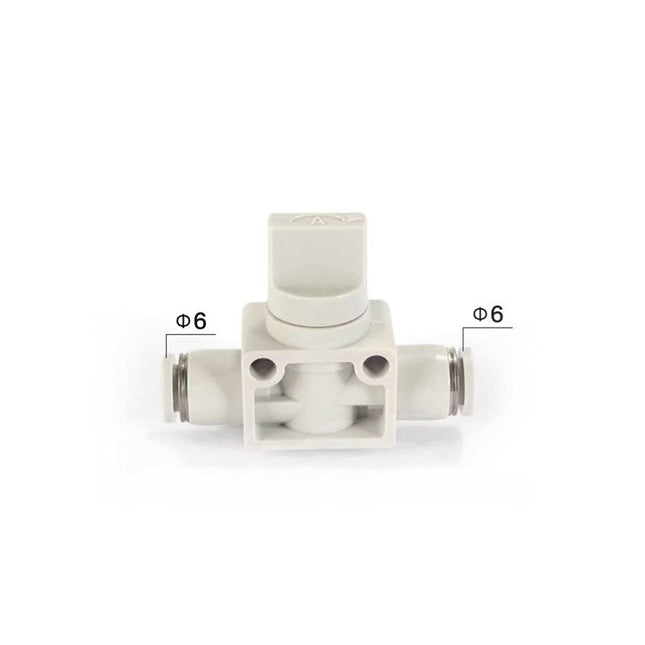

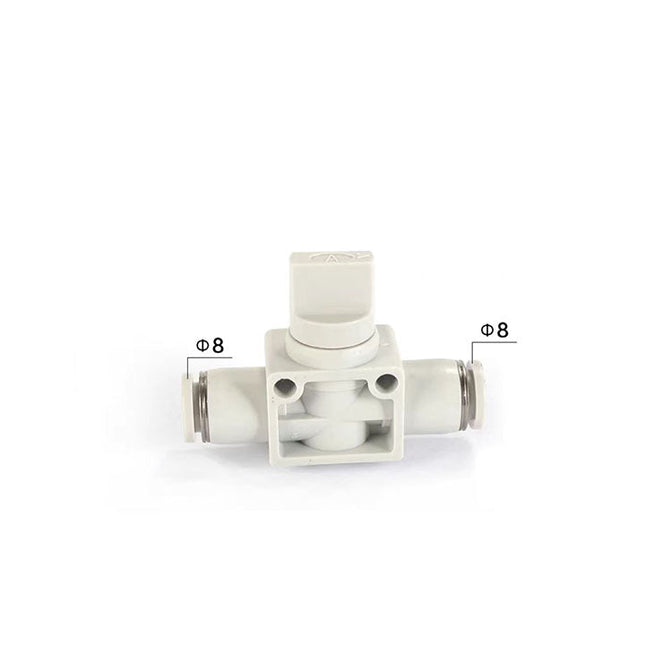

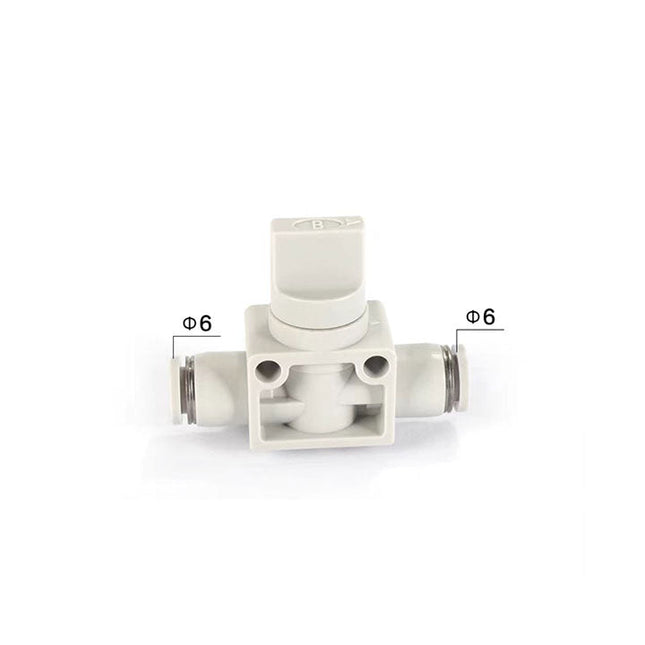

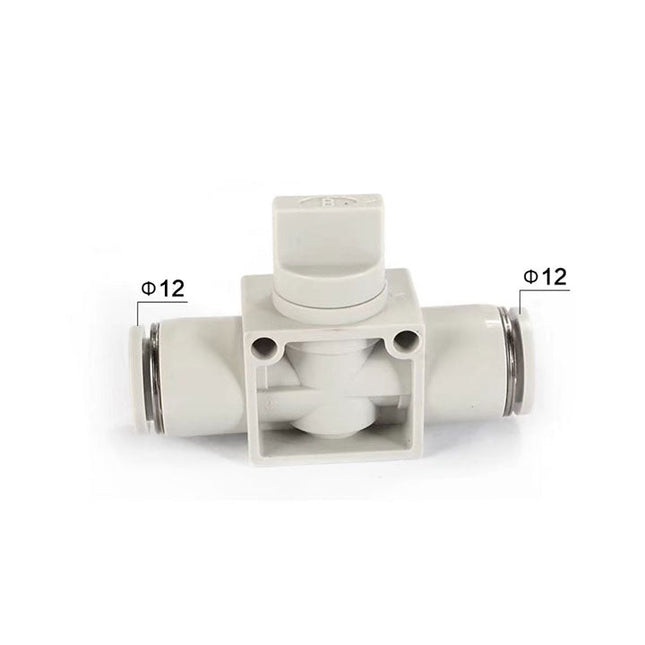

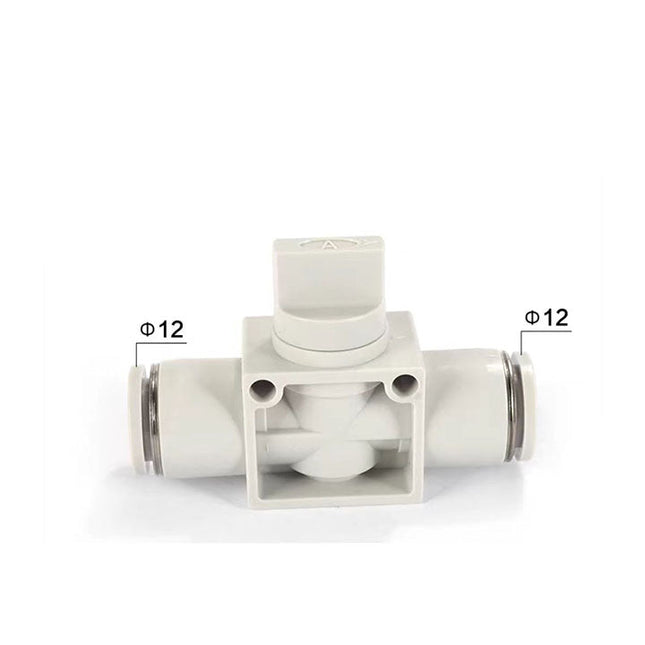

PHV Series Hand Valve
Product Features
- The PHV series products are copper-free and can be directly used in acid-base environments.
- When the 3-way valve is closed, the outlet port vents air, facilitating safe testing and maintenance.
- Sensitive switching and large flow rate.
Product Specifications
Model | PHV6 | PHV8 | PHV10 | PHV12 |
---|---|---|---|---|
Operating Pressure Range | 0-10kgf/cm² (0-1.0MPa) | |||
Negative Pressure | -750mmHg (10Torr) | |||
Proof Pressure | 1.5MPa | |||
Operating Temperature Range | -20~70°C | |||
Applicable Tubing | Nylon or PU Tube | |||
Color | Gray / Black |
Product Ordering Code
1. Model Code | 2. Port Size | 3. Valve Specification | 4. Color Code |
---|---|---|---|
PHV: Hand Valve |
6: Ø6mm 8: Ø8mm 10: Ø10mm 12: Ø12mm |
A: 3-Way B: 2-Way |
Blank: Gray (Nozzle: Gray / Body: Gray) D: Black (Nozzle: Black / Body: Black) |
