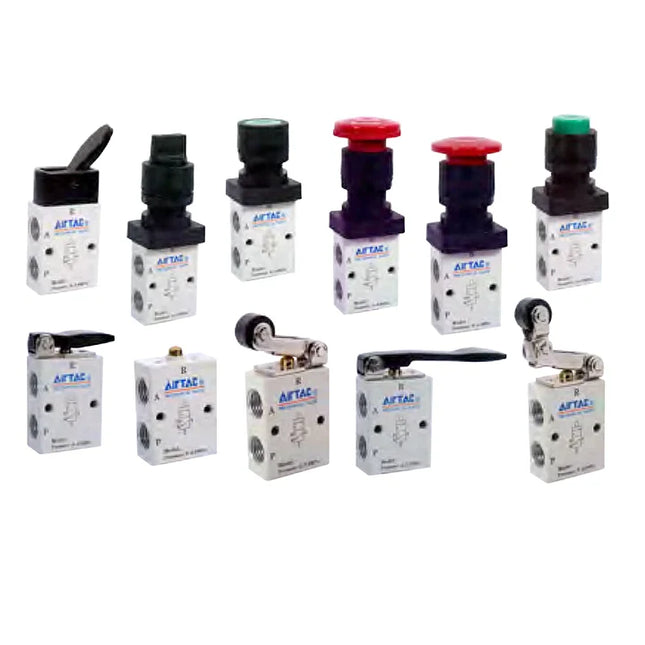

S3 Series Valve
Product Features

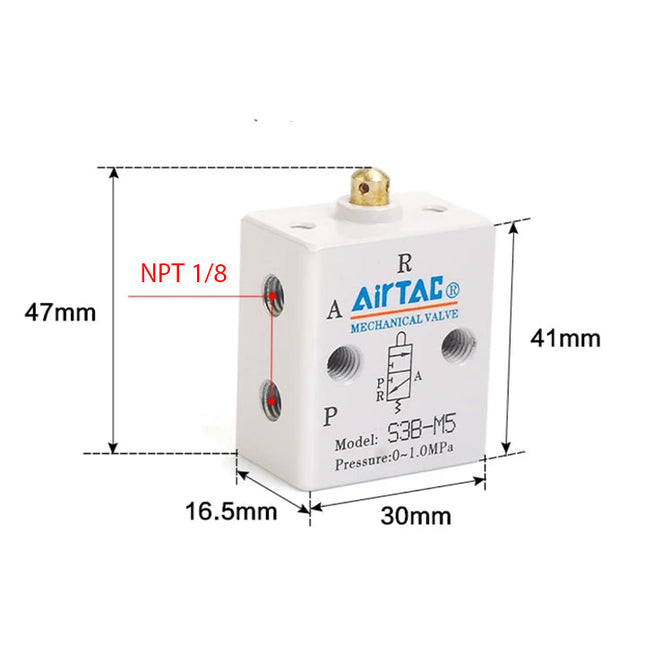

- The S3B, S3C, S3L, and S3V series require additional external force for operation and are used for position detection or as limit switches.
- The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, and S3C series are manually operated, with various structural forms and convenience for use under different conditions.
- The valve structure is a poppet type, offering good sealing, sensitive response, and no need for lubrication.
- Multi-position installation, easy to use.
- The control components of the S3C, S3D, S3Y, S3R, and S3L series are made of metal, ensuring a long service life and stable performance.
Specifications
| Model | S3B | S3C | S3D | S3V | S3R | S3L | S3Y | S3PM | S3PP | S3PF | S3PL | S3HS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working Medium | Air (filtered by a 40μm or above filter screen) | |||||||||||
| Actuation Style | External Pilot Operated | |||||||||||
| Port Size [Note 1] | 05: M5; 06: PT1/8; 08: PT1/4 | |||||||||||
| Effective Area (Cv) | 05: 2.5mm² (Cv=0.14); 06: 8.0mm² (Cv=0.45); 08: 12.0mm² (Cv=0.67) | |||||||||||
| Number of Positions | Two-position Three-way | |||||||||||
| Lubrication [Note 2] | Not required | |||||||||||
| Operating Pressure Range | 0~1.0MPa (0~145psi) | |||||||||||
| Proof Pressure | 1.5MPa (215psi) | |||||||||||
| Operating Temperature | -20~70°C | |||||||||||
| Body Material | Aluminum Alloy | |||||||||||
Note:
1. G thread and NPT thread are optional.
2. If lubrication is added, do not stop. It is recommended to use ISO VG32 or equivalent lubricating oil.
1. G thread and NPT thread are optional.
2. If lubrication is added, do not stop. It is recommended to use ISO VG32 or equivalent lubricating oil.
Product Ordering Code
S3 PM 06 R □
① ② ③ ④ ⑤
① ② ③ ④ ⑤
| ① Structure Code | ② Actuator Code | ③ Port Size Code | ④ Push Button Color Code | ⑤ Thread Type Code |
|---|---|---|---|---|
| S3: 3-Port 2-Position |

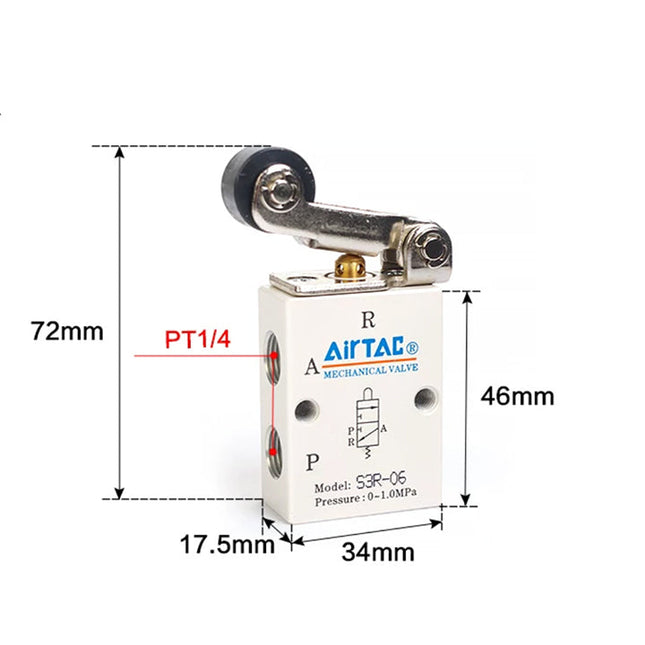

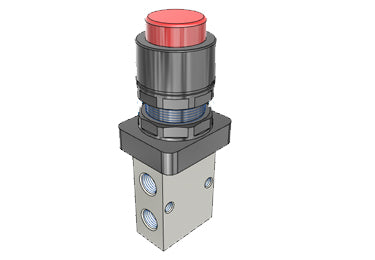

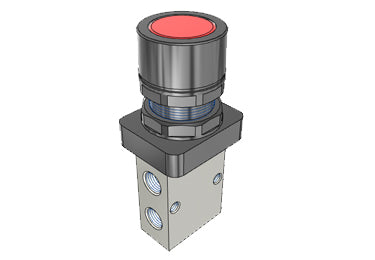

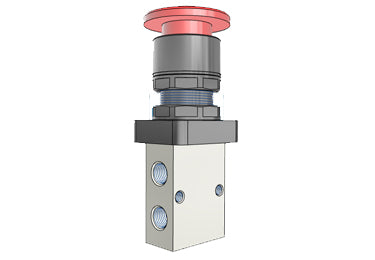

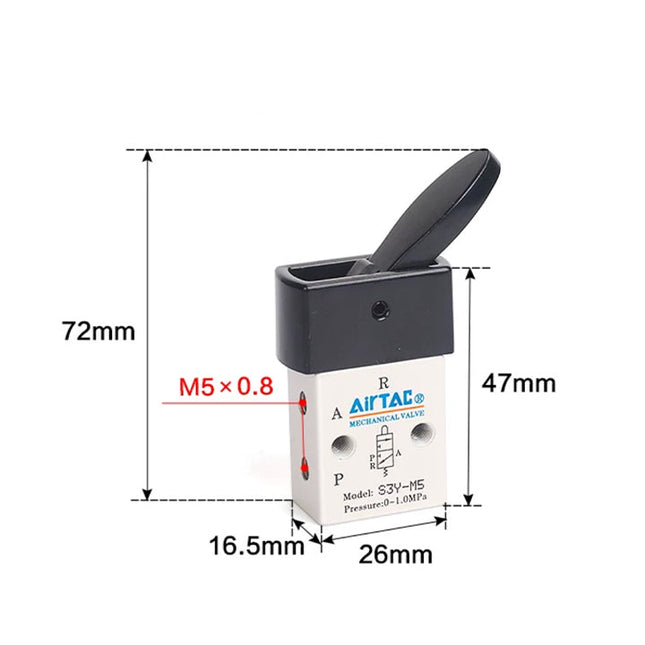

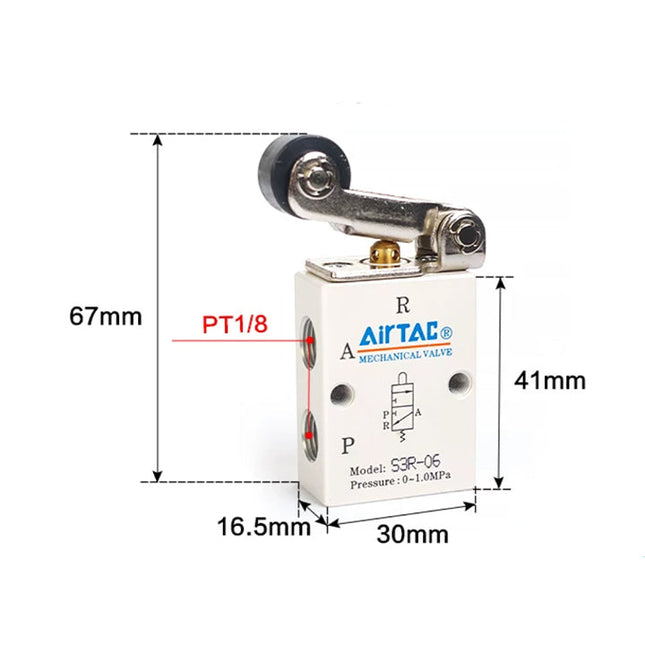

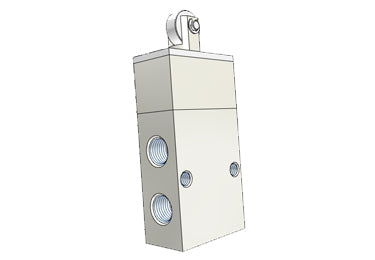

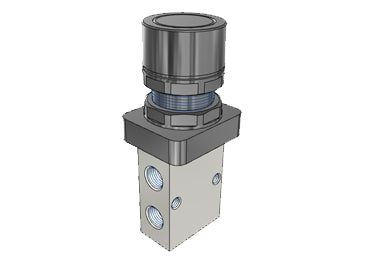

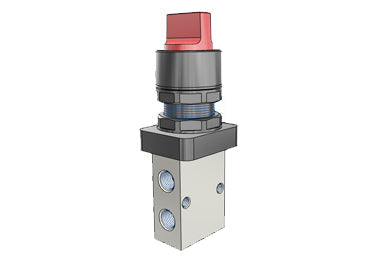

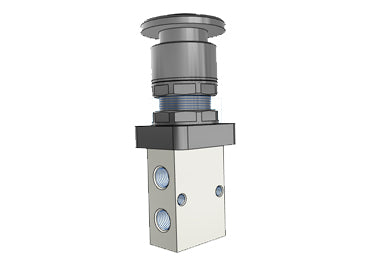

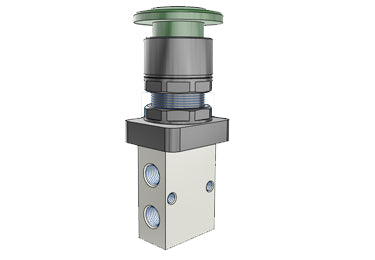

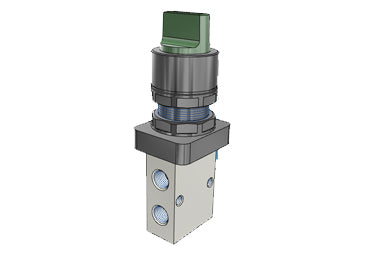

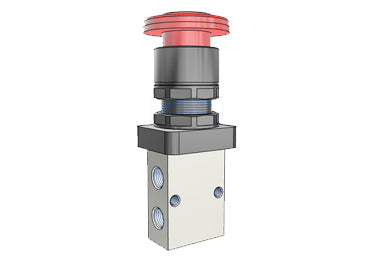

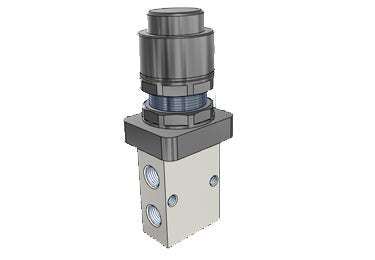

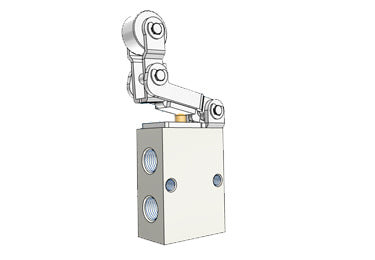

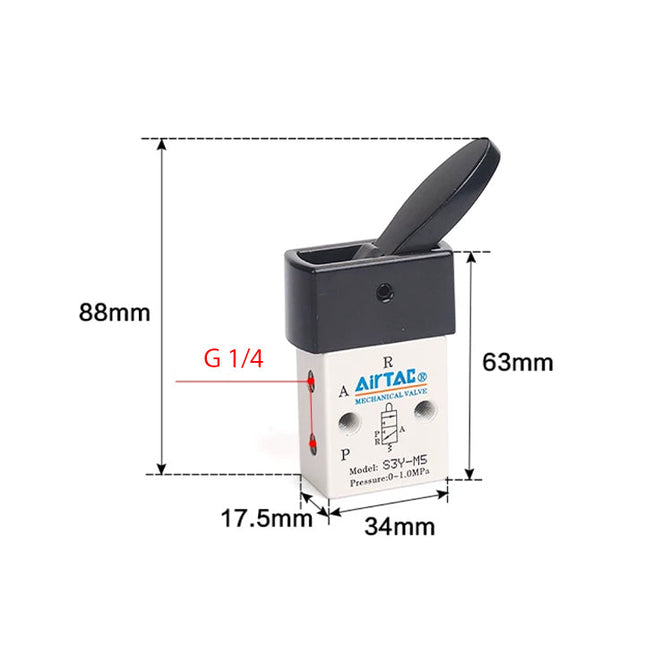

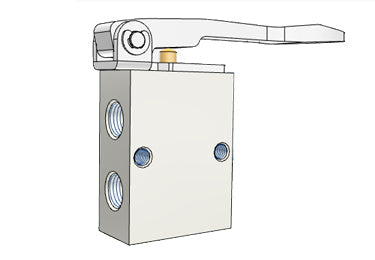

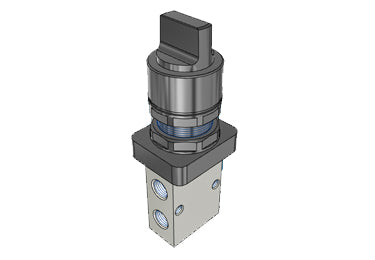

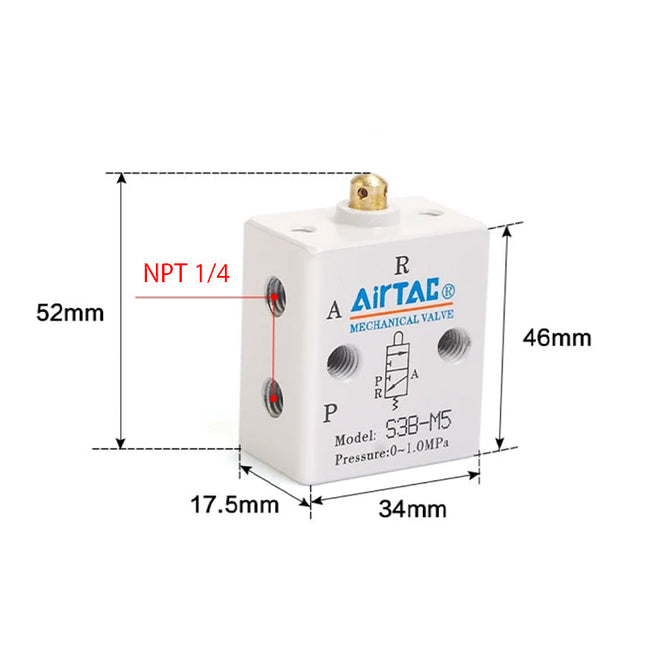

B: Basic Mechanical Type C: Long Plunger Type D: Short Plunger Type Y:Rocak Arm Manual Valve R: Roller Lever Mechanical Type L: One-way Roller Lever Type V: Vertical Roller Lever Type PL: Rotary Push-Button Manual Valve PP: Mushroom Head Manual Valve PF: Flat Round Pushbutton Hand Valvebr PM: Mushroom Pushbutton Hand Valve HS: Selector Hand Valve |
05: M5 06: 1/8" 08: 1/4" |

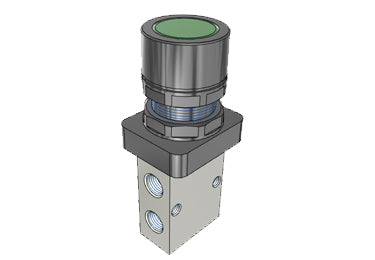

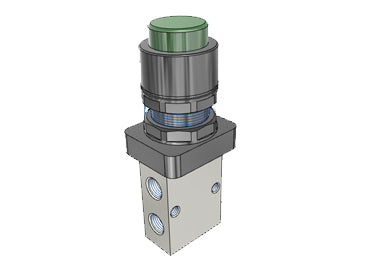

No code Blank: Red R: Red G: Green B: Black |
No code for M5 For 1/8", 1/4": Blank: PT Thread G: G Thread T: NPT Thread |
