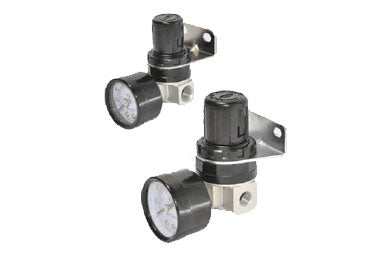

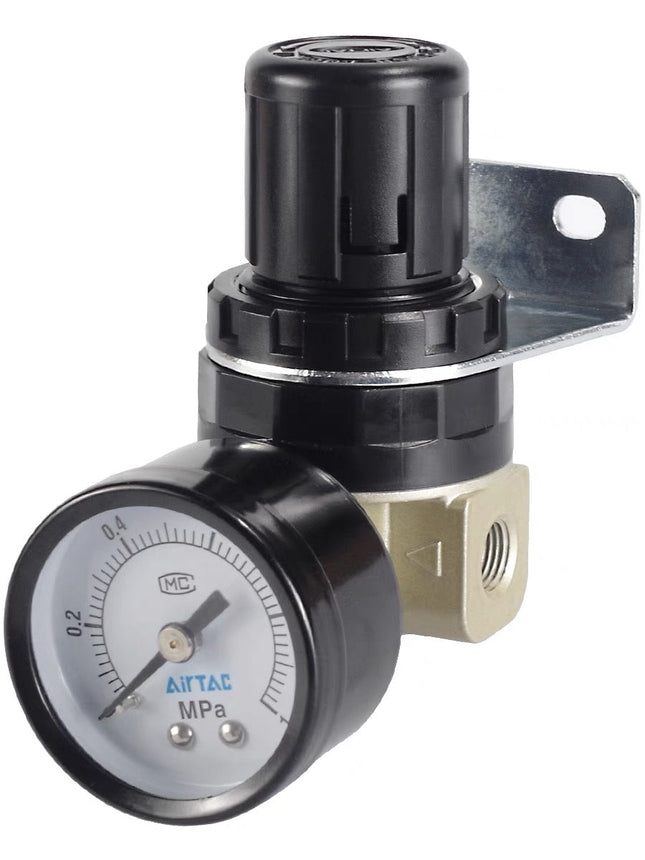

Regulator
Product Features
- Piston-type pressure reducing structure, simple and compact, cost-effective, easy to install and use.
- Wide pressure regulation range, with a low-pressure type available in addition to the standard type.
- The output pressure is stable, mainly suitable for occasions where the output pressure requirement is not high and high cost-effectiveness is sought.
- Single unit installation, convenient and flexible.
Specifications
| Model | SDR100M5 | SDR10006 | SDR20006 | SDR20008 | SDR100M5L | SDR10006L | SDR20006L | SDR20008L |
|---|---|---|---|---|---|---|---|---|
| Working Medium | Air | |||||||
| Pressure Regulation Range | 0.05–0.9MPa (7–130psi) | 0.03–0.4MPa (4–57psi) | ||||||
| Max Operating Pressure | 1.0MPa (145Psi) | |||||||
| Proof Pressure | 1.5MPa (215Psi) | |||||||
| Operating Temperature Range | -20–70°C | |||||||
| Port Size [Note 1] | M5 | PT1/8 | PT1/8 | PT1/4 | M5 | PT1/8 | PT1/8 | PT1/4 |
Note 1: G and NPT thread types are available.
Product Ordering Code
| Position | Description | Options & Values |
|---|---|---|
| 1 | Model Code |
|
| 2 | Series Code |
|
| 3 | Port Size |
|
| 4 | Model Type Code |
|
| 5 | Bracket Code |
|
| 6 | Pressure Gauge Code |
|
| 7 | Pressure Unit [Note] |
|
| 8 | Thread Code |
|
Note: When not selecting a pressure gauge, this item is left blank.
