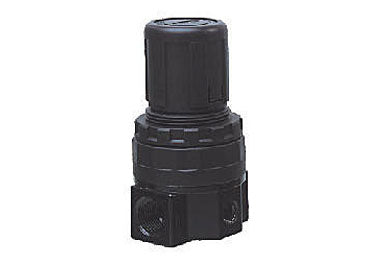

Regulator
Product Features

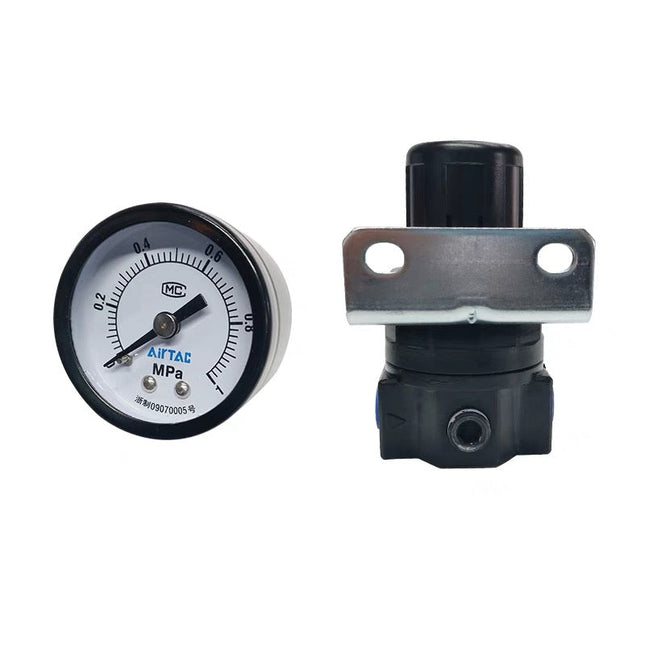

- Independent pipe-mounted regulator, can also be installed with a panel bracket.
- Compact structure, easy to install and use.
- Stable pressure regulation with good pressure characteristics.
- In addition to the standard type, a low-pressure type is available (maximum adjustable pressure 0.4MPa).
Specifications

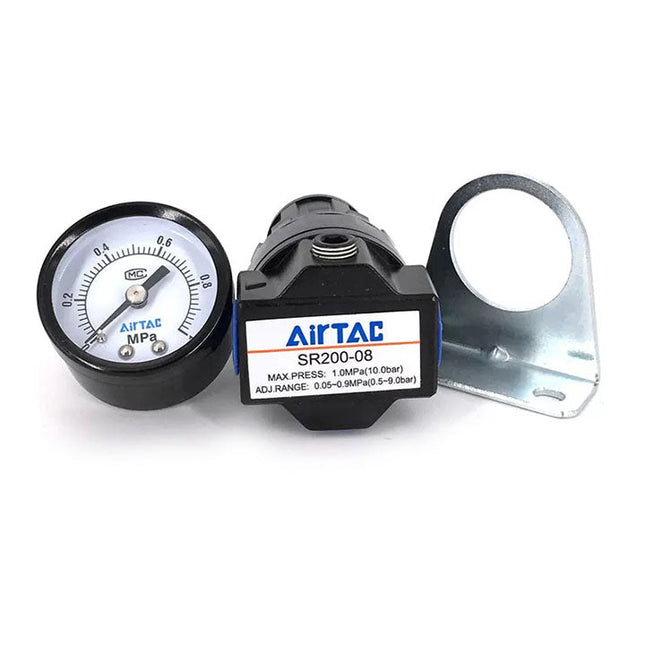

| Model | SR200-06 | SR200L-06 | SR200-08 | SR200L-08 |
|---|---|---|---|---|
| Working Medium | Air | |||
| Port Size [Note 1] | PT1/8 | PT1/4 | ||
| Pressure Regulation Range | Standard type: 0.05–0.9MPa (7–130psi); Low pressure type: 0.03–0.4MPa (4–57psi) | |||
| Max Operating Pressure | 1.0MPa (145Psi) | |||
| Proof Pressure | 1.5MPa (215Psi) | |||
| Operating Temperature Range | -20–70°C | |||
Note 1: G and NPT thread types are available.
Product Ordering Code
| Position | Description | Options & Values |
|---|---|---|
| 1 | Model Code |
|
| 2 | Series Code |
|
| 3 | Port Size |
|
| 4 | Model Type Code |
|
| 5 | Bracket Code |
|
| 6 | Pressure Gauge Code |
|
| 7 | Pressure Unit |
|
| 8 | Thread Code [Note 1] |
|
Note 1: The pressure gauge dial will correspond to the selected thread type's pressure unit.
