BB & BKC Series Features
- Multiple models and specifications, widely used in various pneumatic systems.
- Excellent flow performance, allowing passage of medium with the same inner diameter of the tube.
- The nickel-plated brass body is anti-corrosion and anti-pollution, for a wider range of applications.
- All metal connectors are suitable for high temperature environments.
BB & BKC Series Specifications
Operating Pressure Range |
0-10kgf/cm² (0-1.0MPa) |
Negative Pressure |
-750mmHg (10Torr) |
Proof Pressure |
3.0MPa |
Operating Temperature Range |
0-150°C |
Note for BKC Series: For high temperature applications, a soft PU tube with corresponding temperature resistance is required.
BB Series Ordering Code
1. Model Code |
2. Connection Thread I |
3. Connection Thread II |
4. Thread Type |

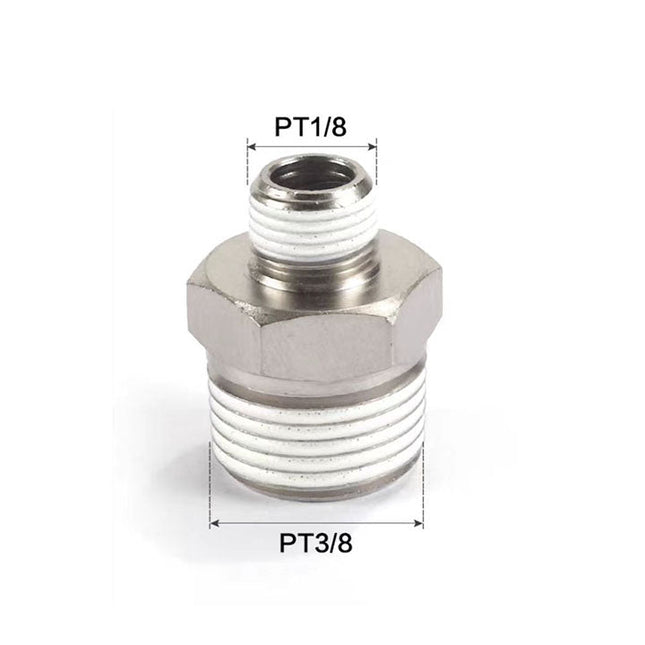

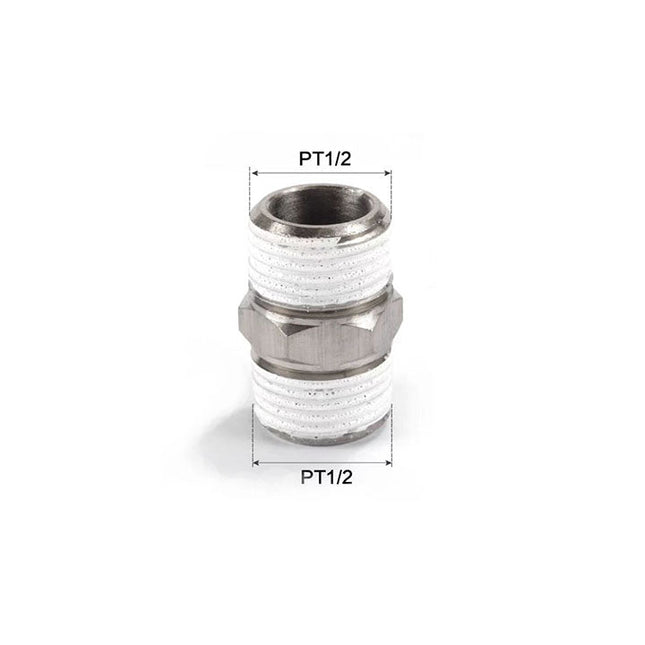

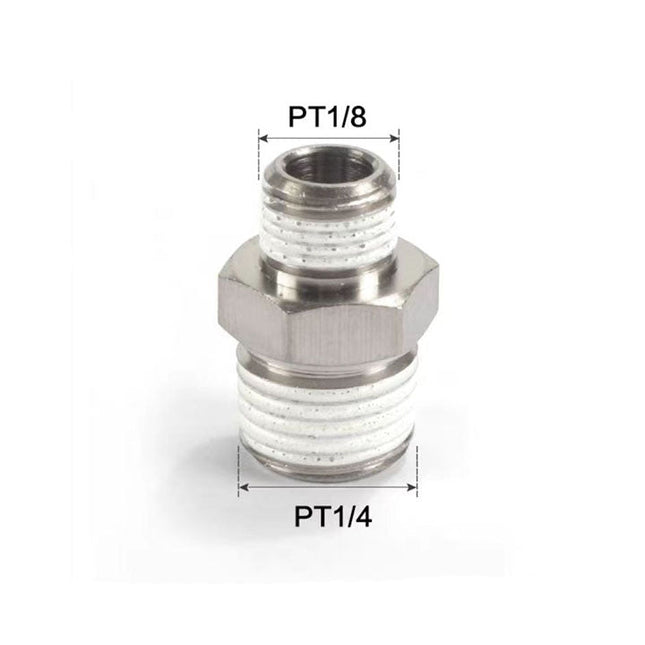

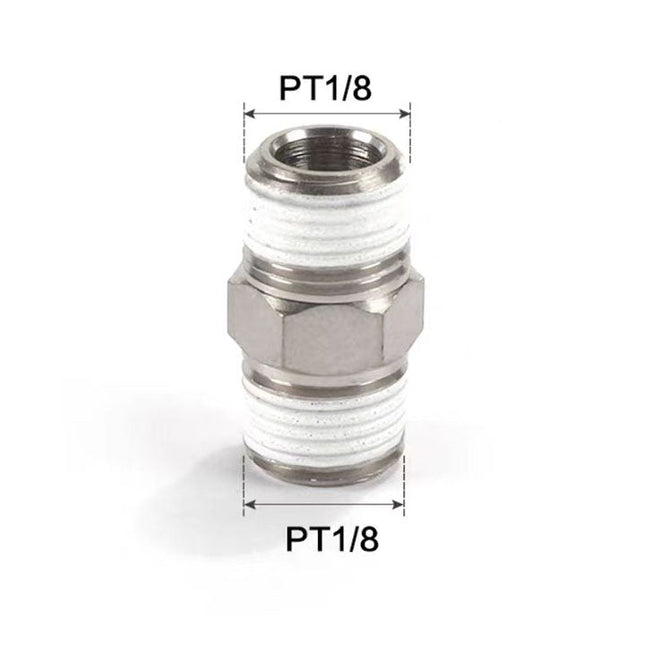

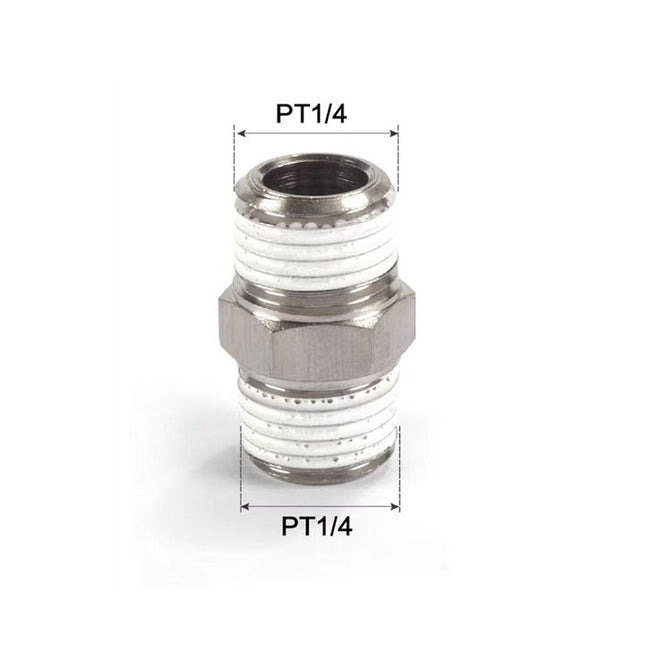

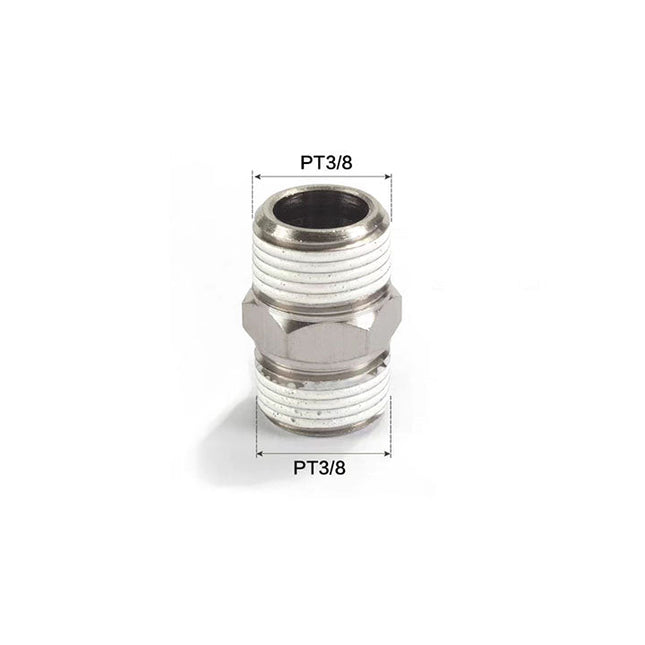

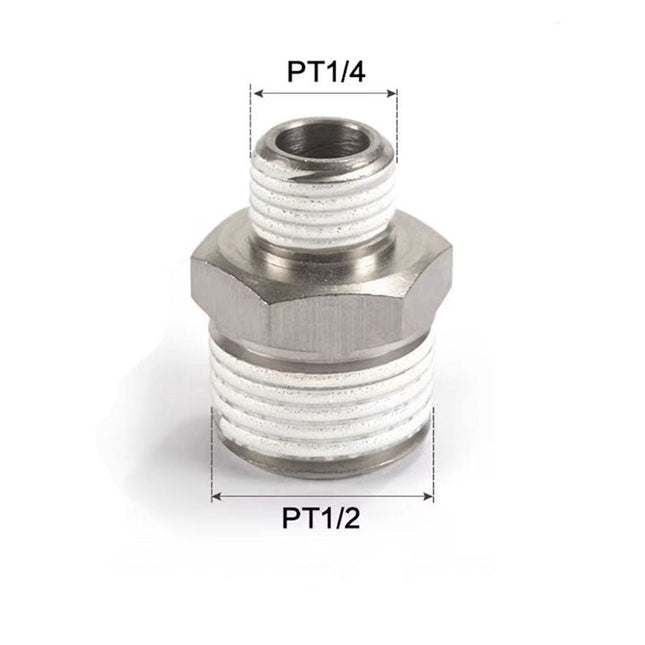

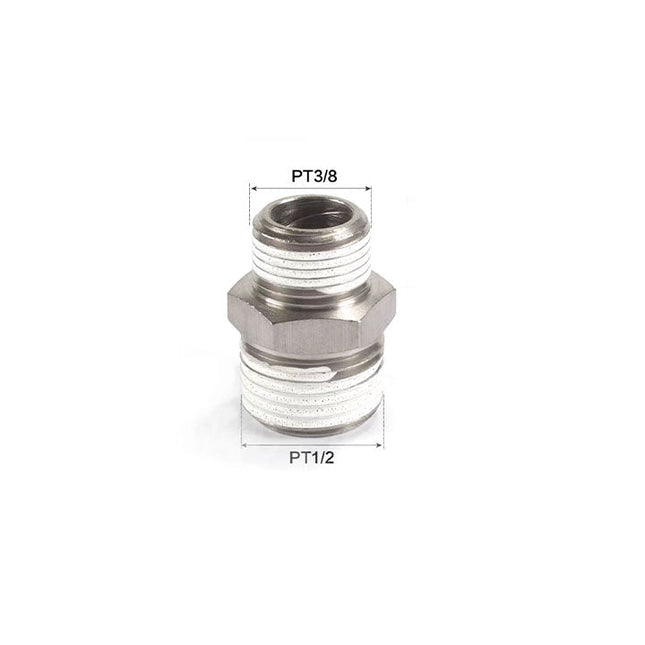

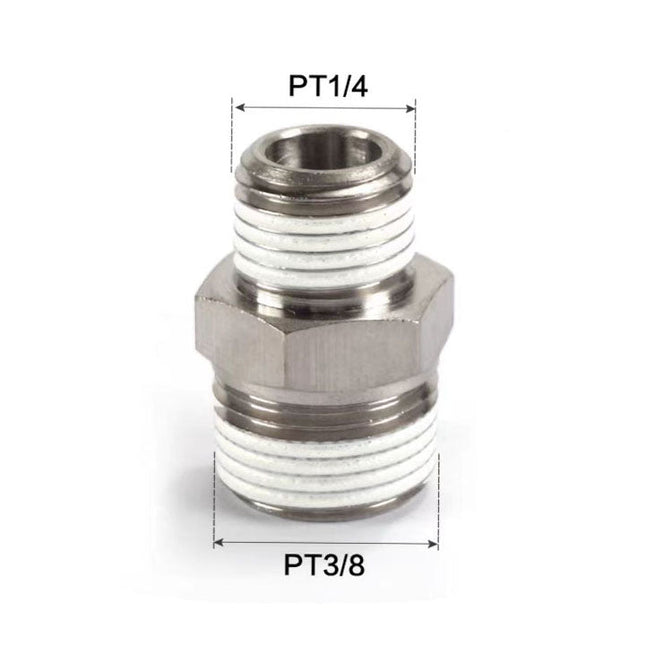

BB: Double Male Threaded Coupling |
01: PT1/8 |
01: PT1/8 |
Blank: PT tooth |

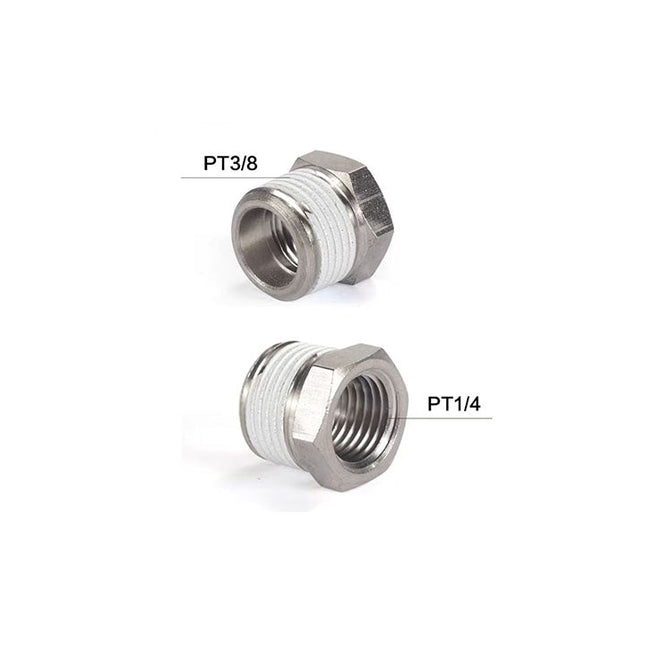

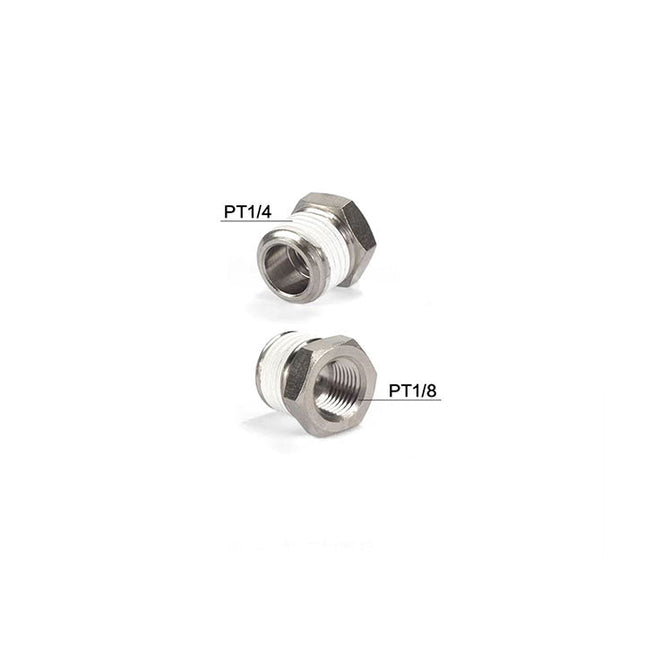

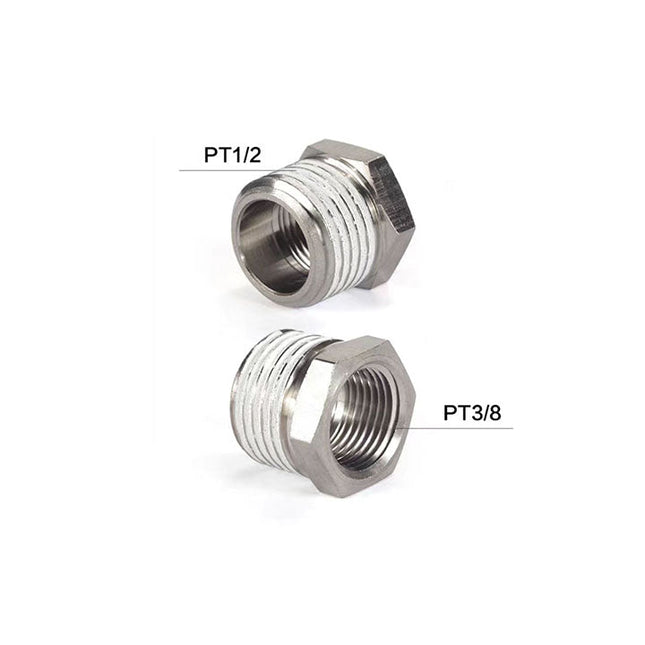

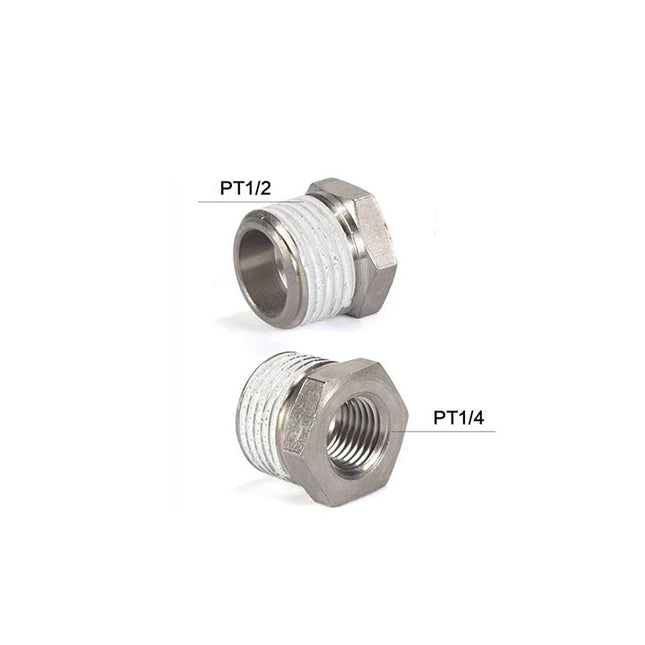

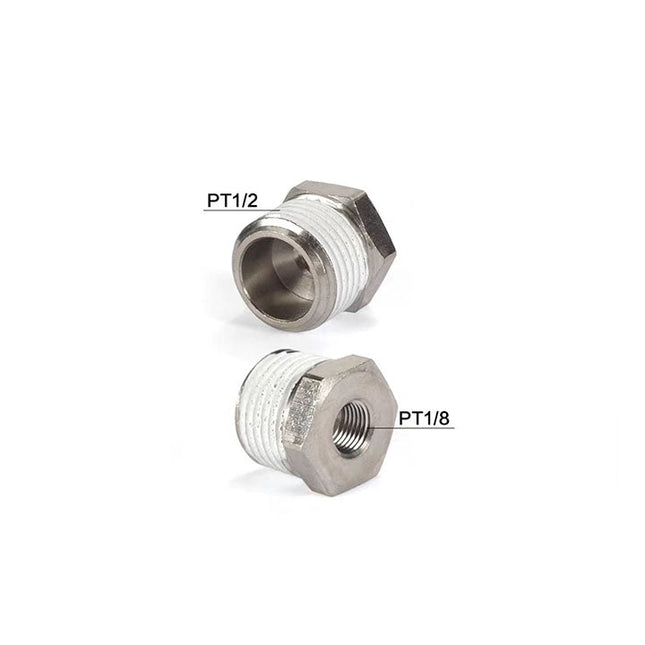

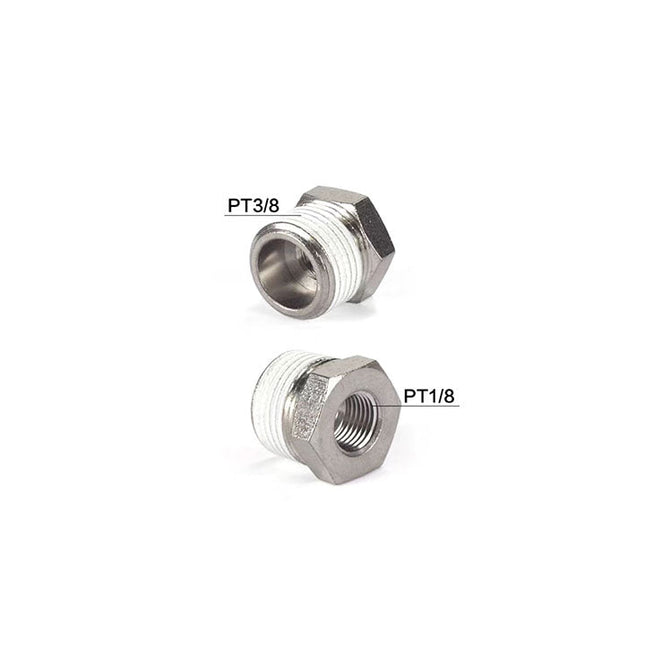

BD: Male-Female Threaded Coupling (Note 1) |
02: PT1/4 |
02: PT1/4 |

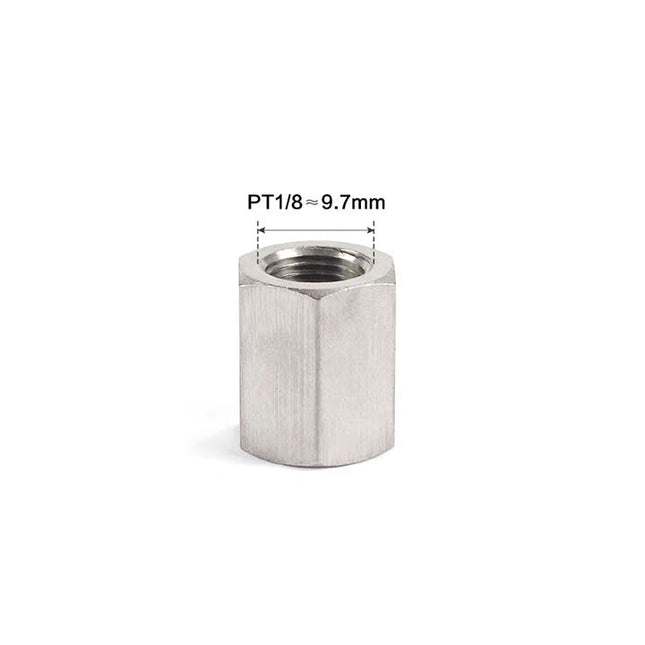

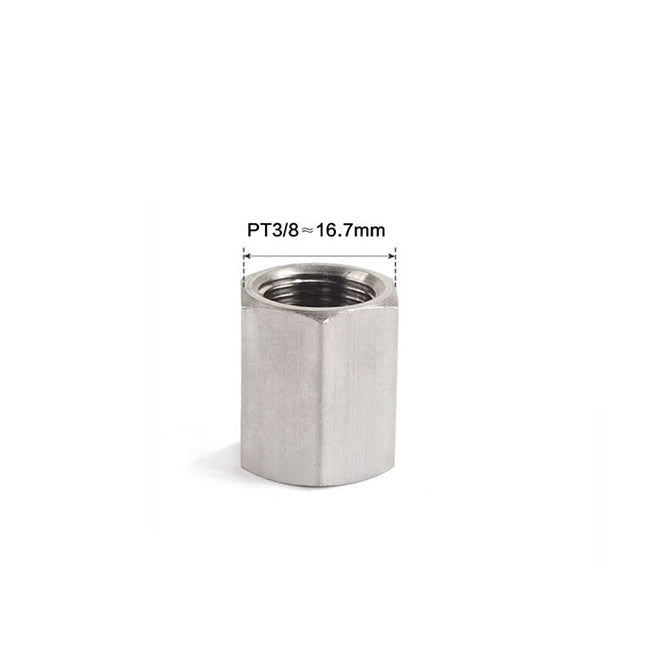

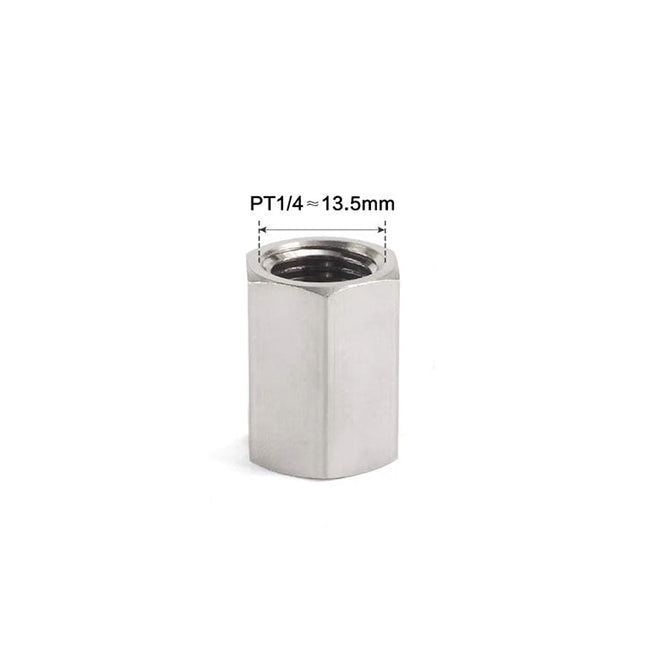

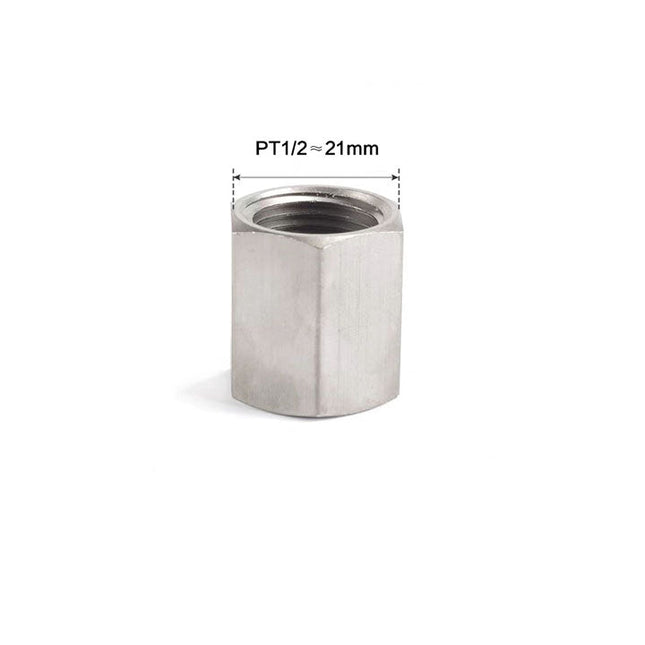

BU: Double Female Threaded Coupling |
03: PT3/8 |
03: PT3/8 |

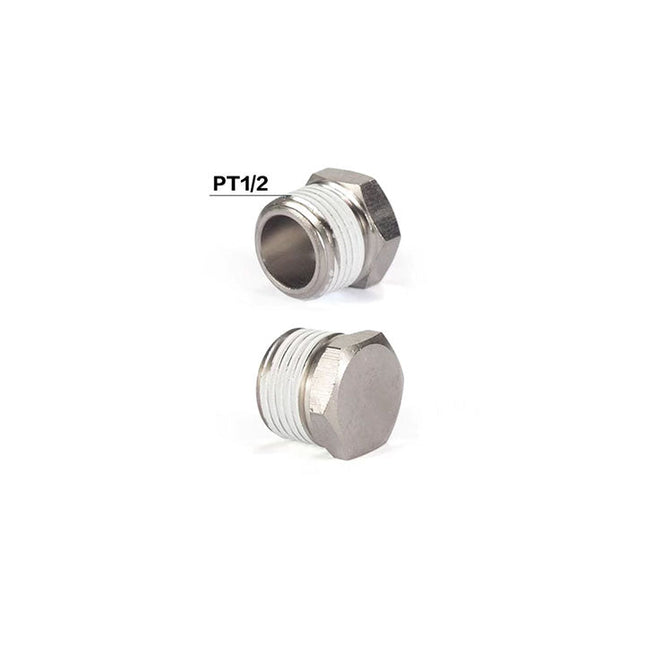

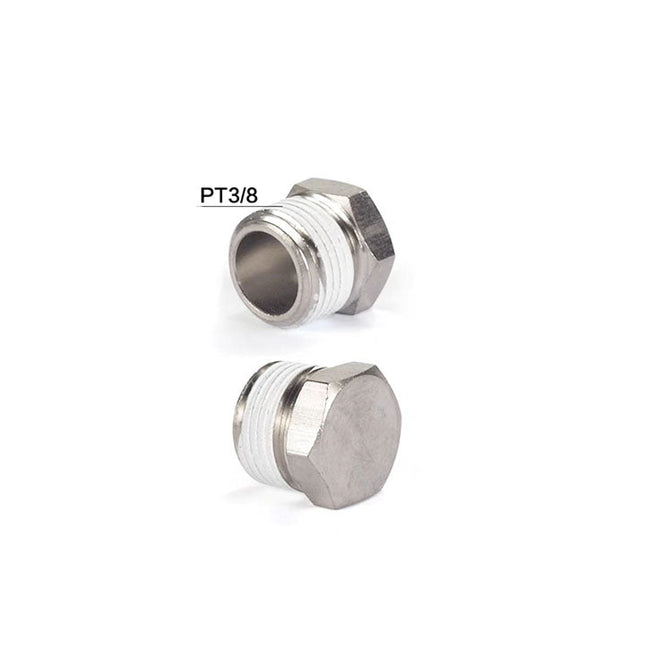

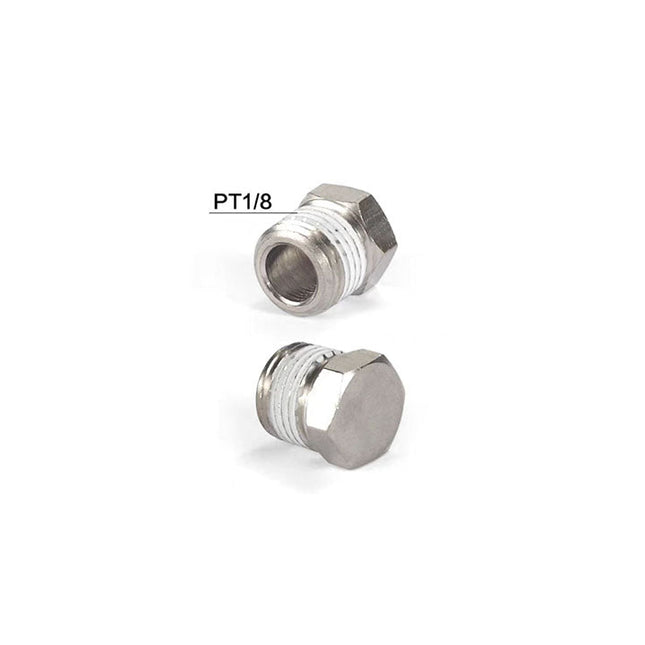

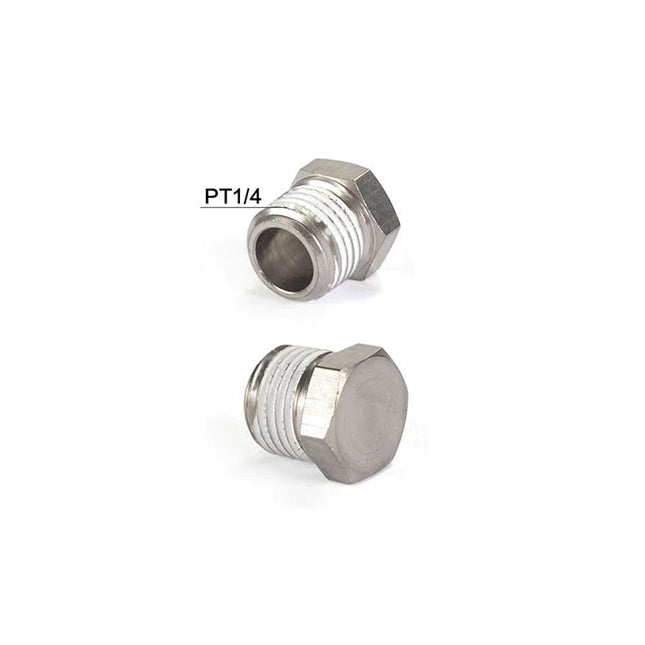

BZ: Hex Head Pipe Plug (Note 2) |
04: PT1/2 |
04: PT1/2 |
Note 1: In the BD series, connection thread I refers to the external thread, and connection thread II refers to the internal thread.
Note 2: In the BZ series, if there is no code for connection thread II, connection thread I refers to the external thread.
BKC Series Ordering Code
1. Model Code |
2. Tube OD |
3. Tube ID |
4. Connection Thread |
5. Thread Type |

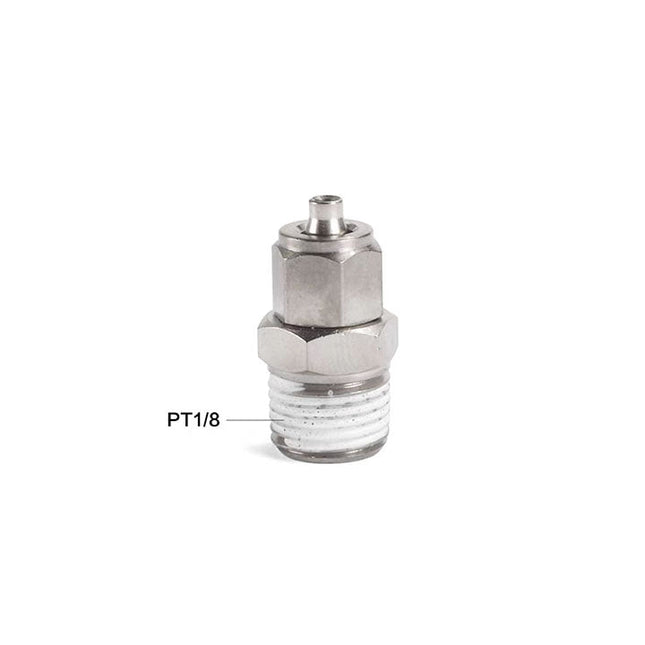

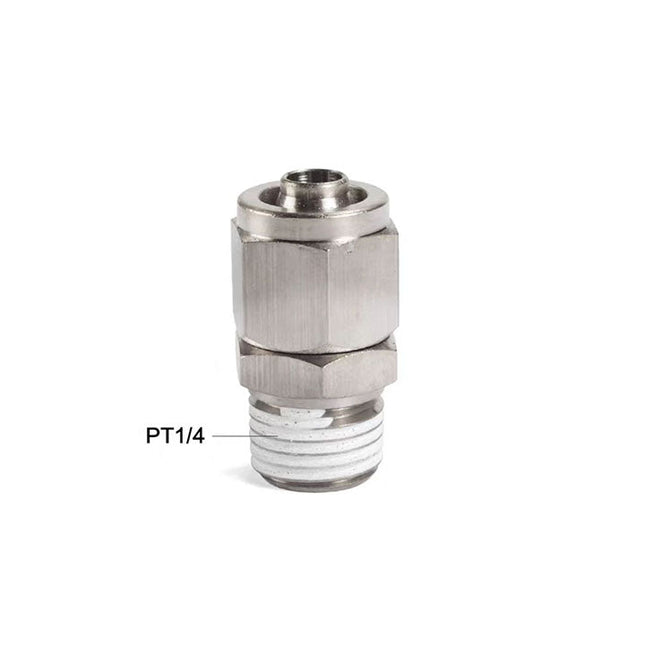

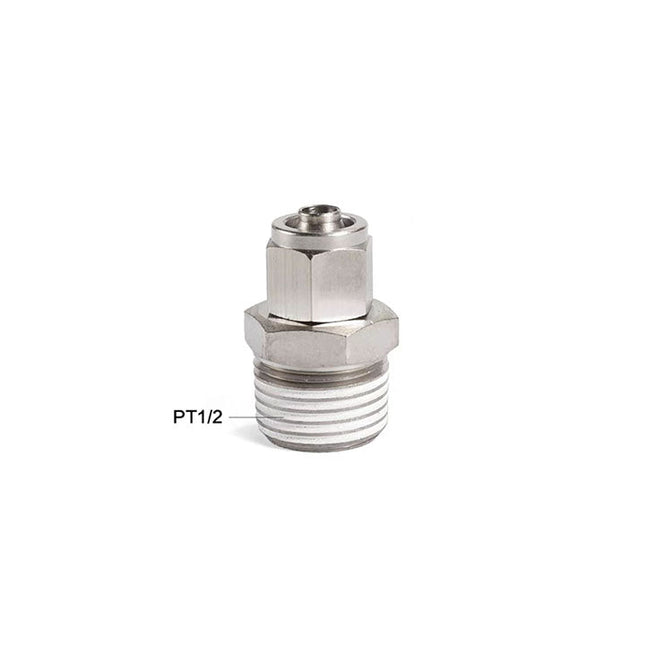

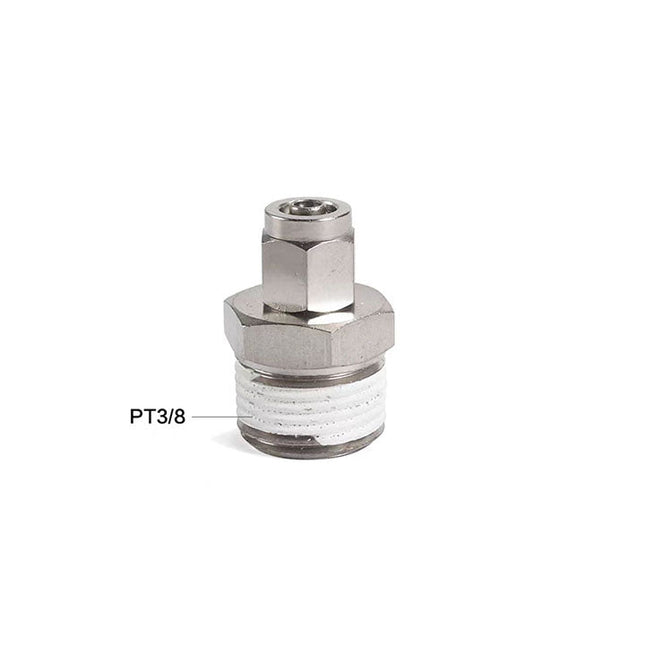

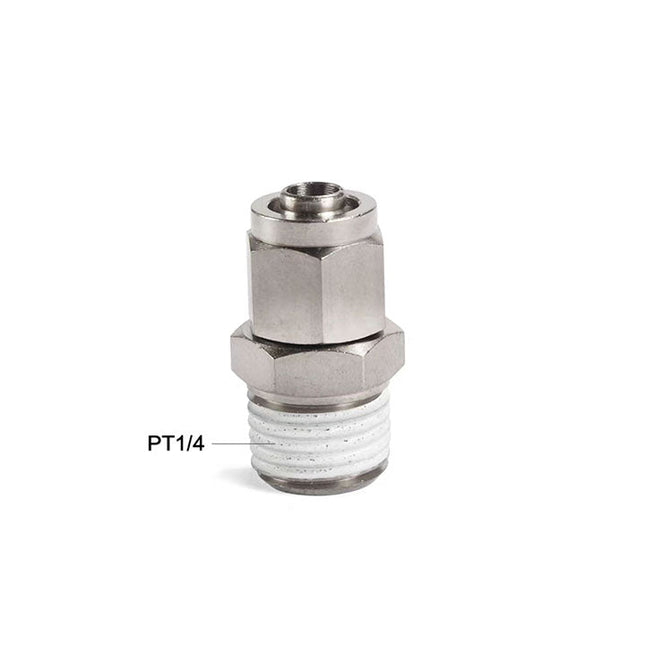

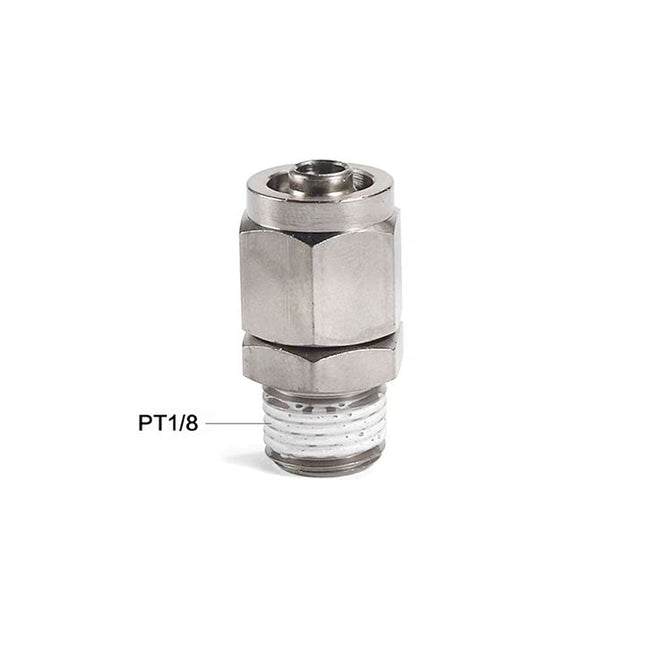

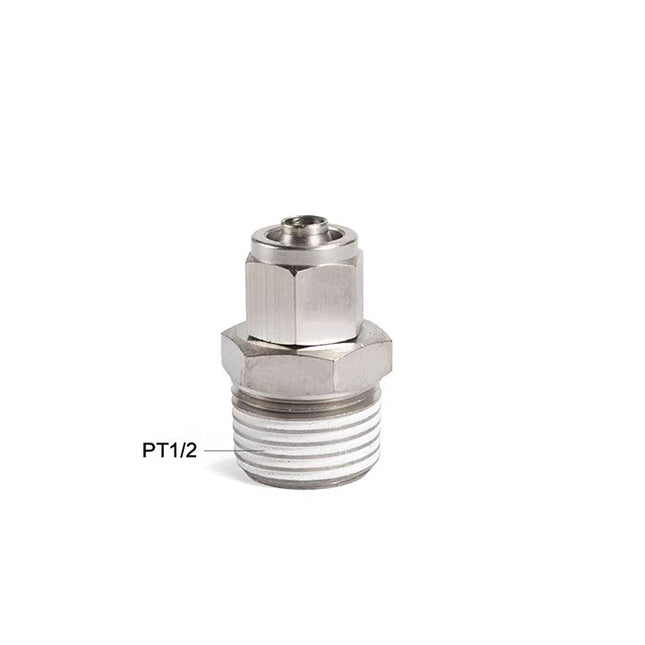

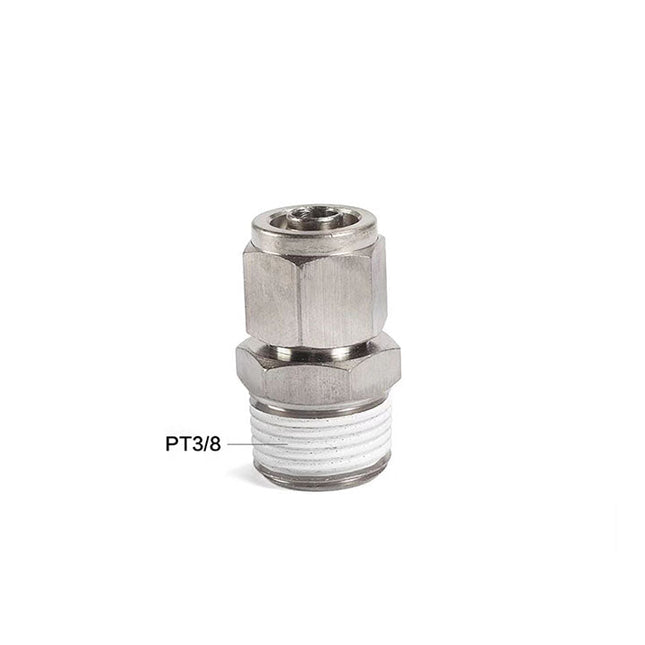

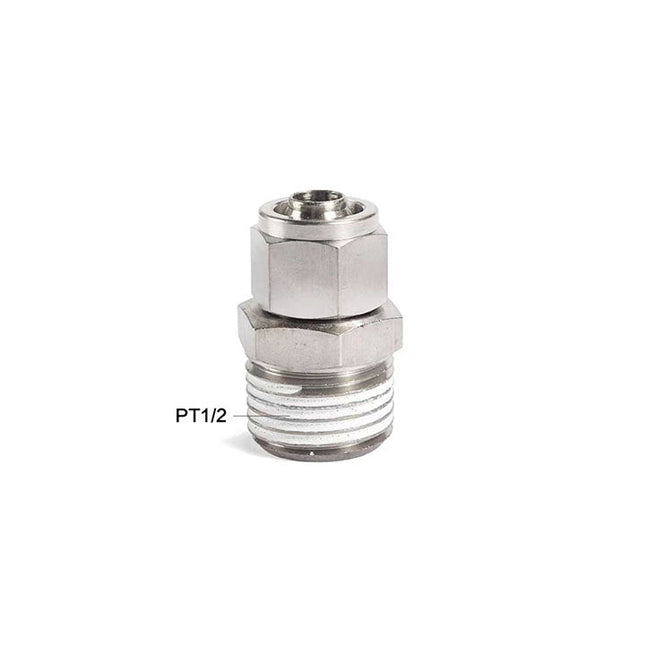

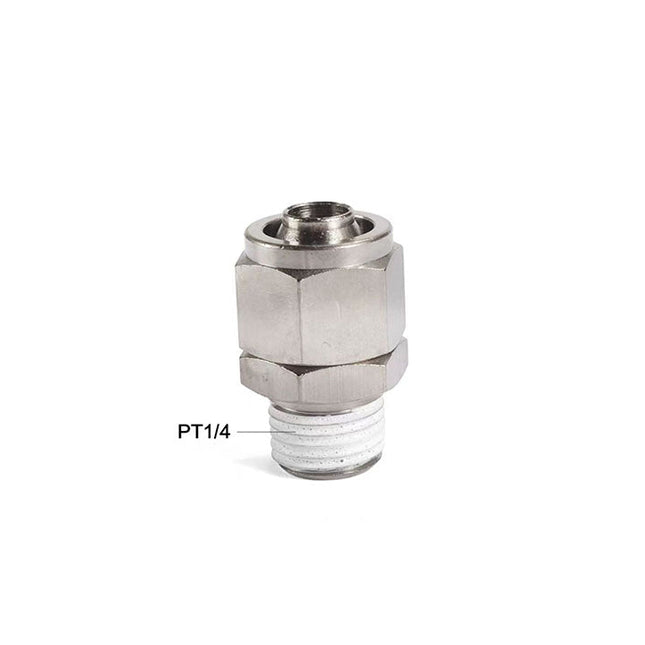

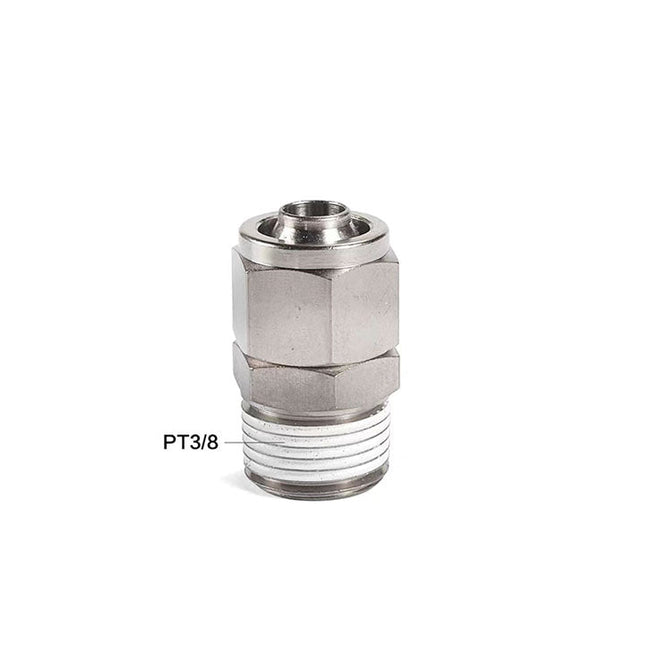

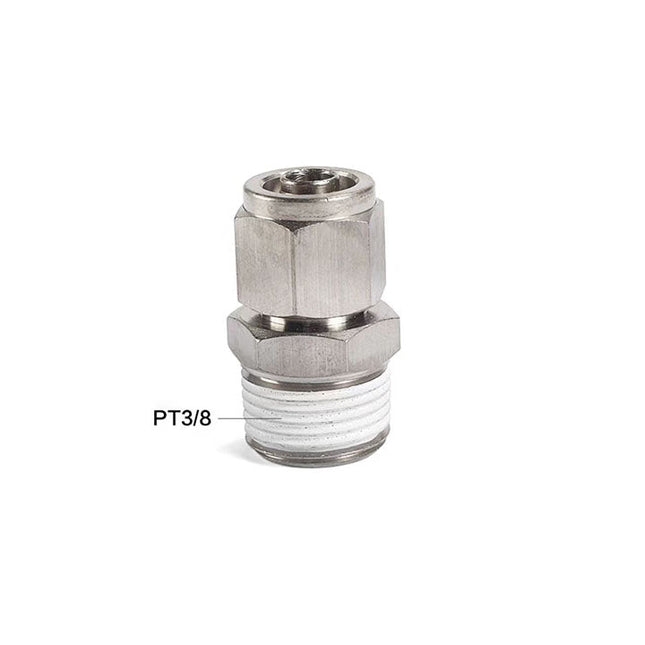

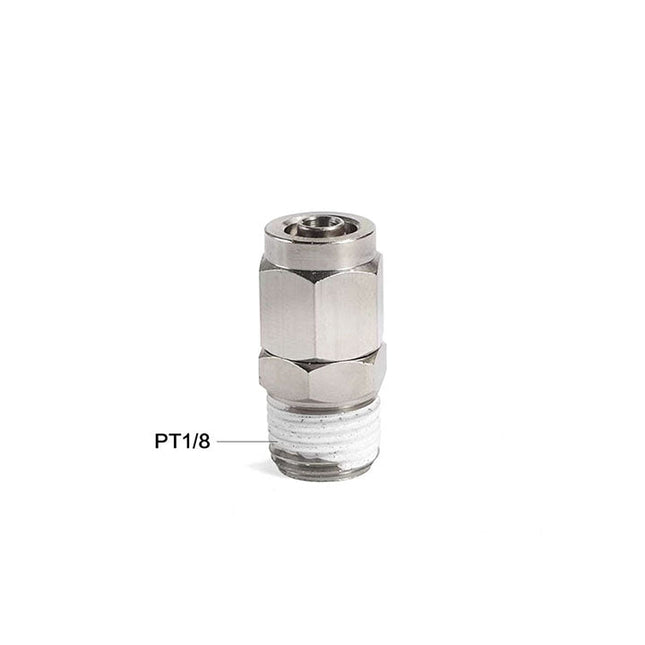

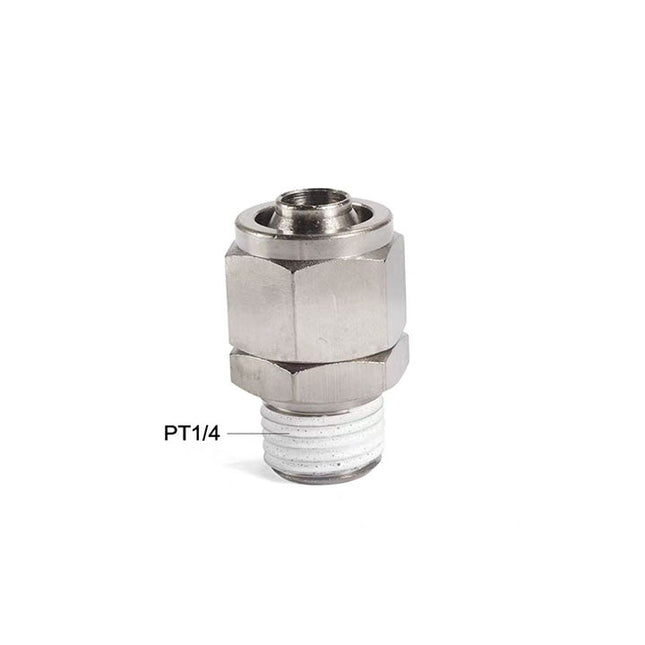

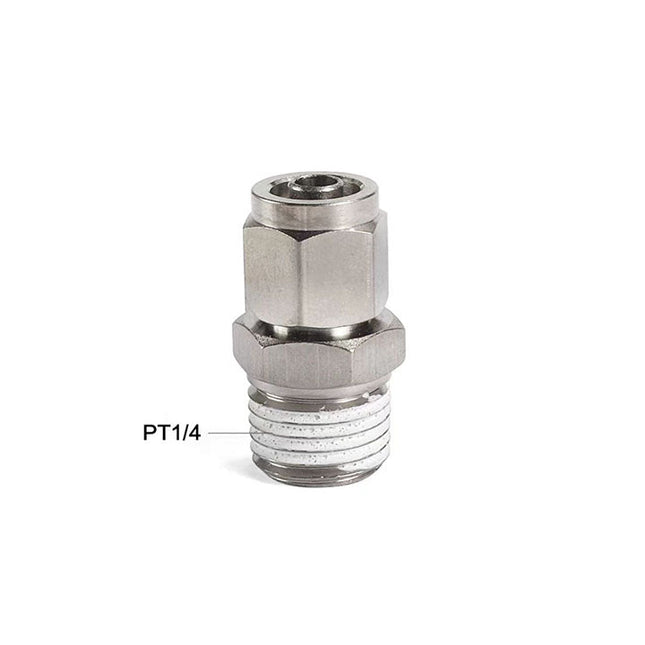

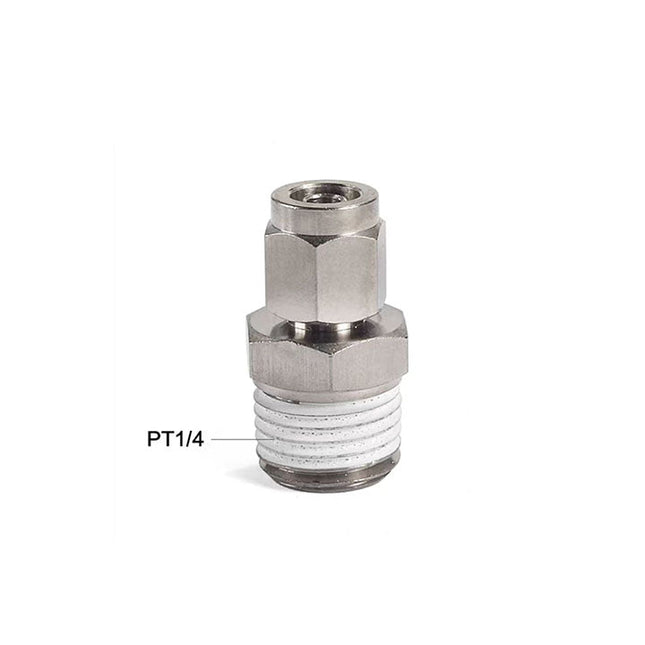

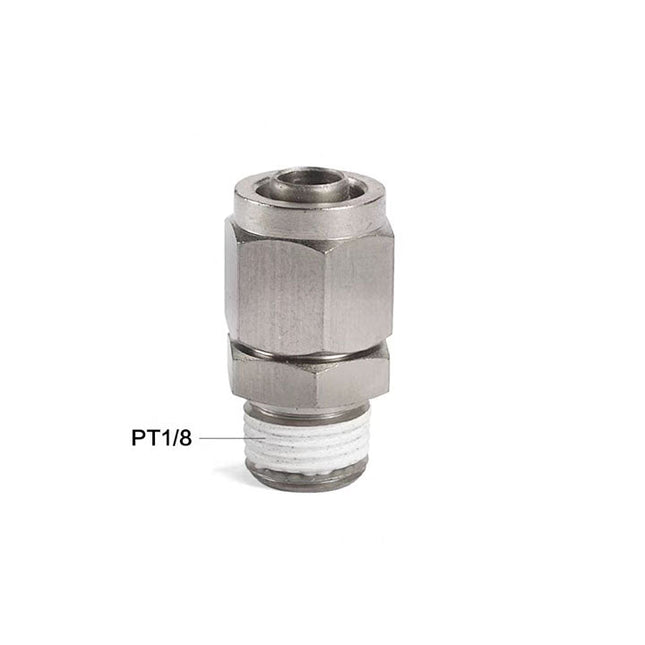

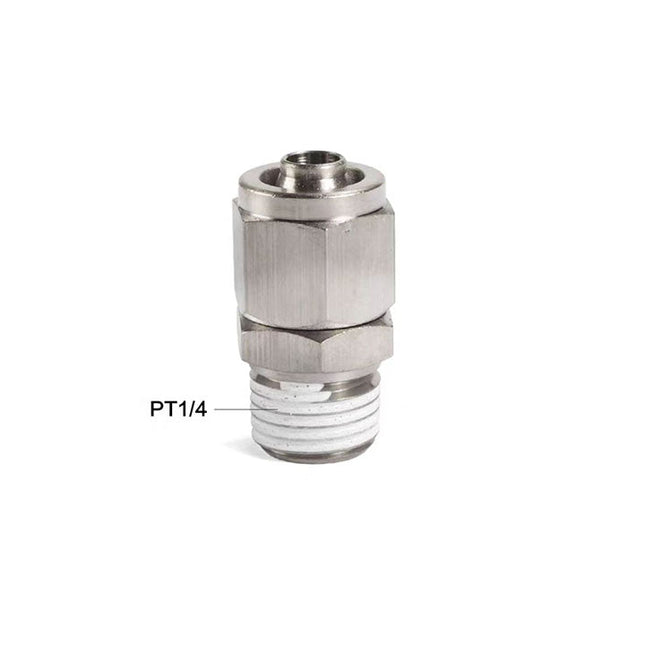

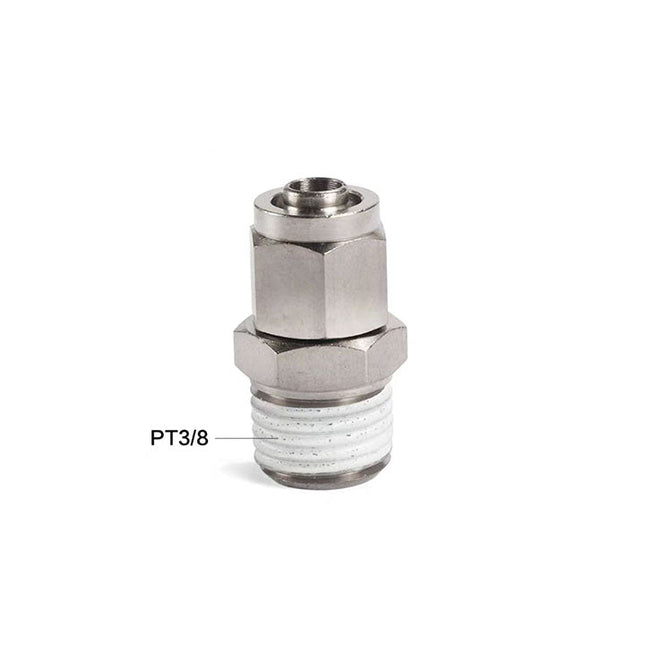

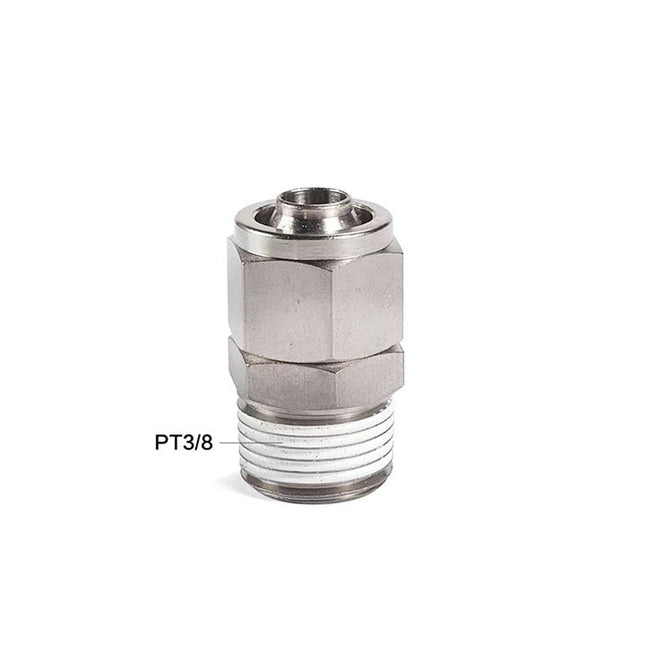

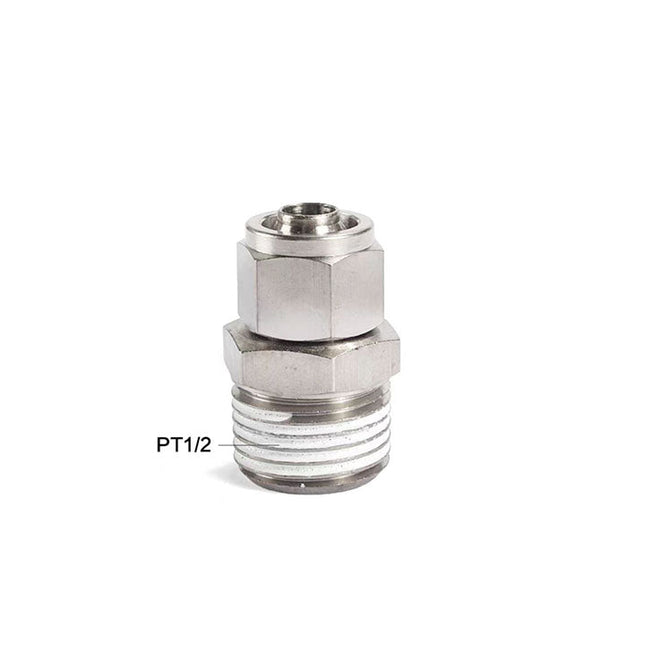

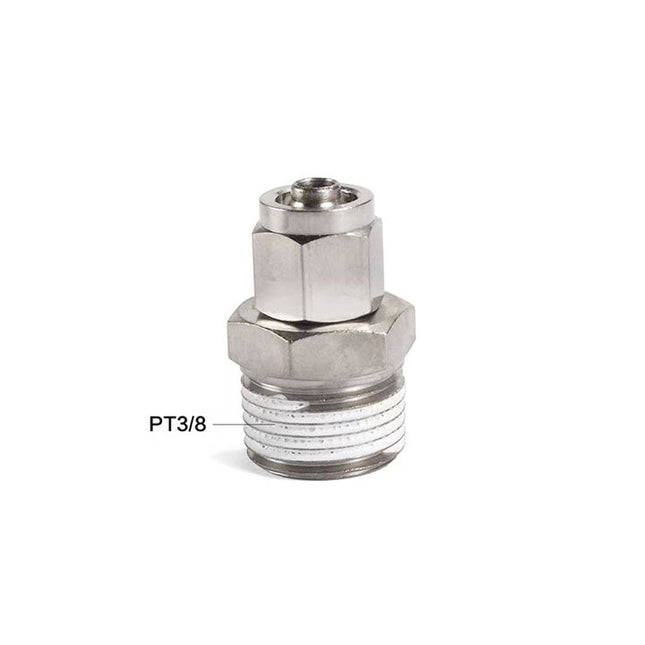

BKC: Threaded Union |
04: Ø4mm |
25: Ø2.5mm |

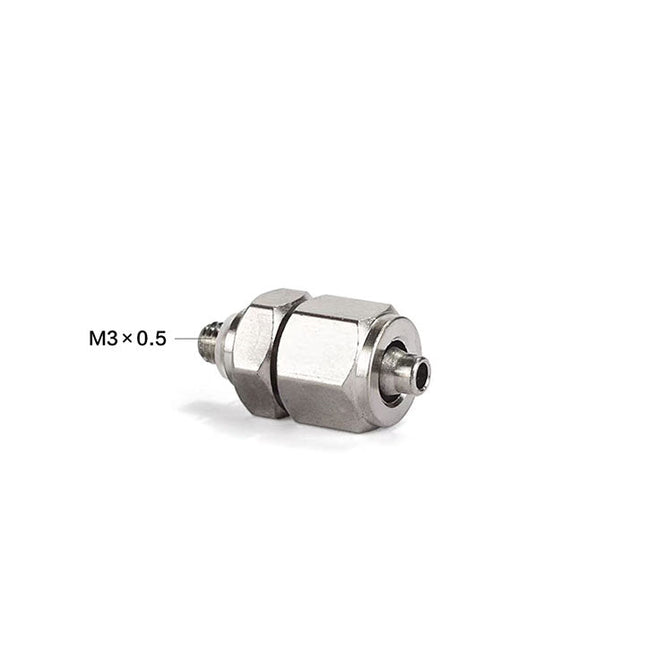

M3: M3X0.5 |
Blank: PT tooth |
06: Ø6mm |
04: Ø4mm |

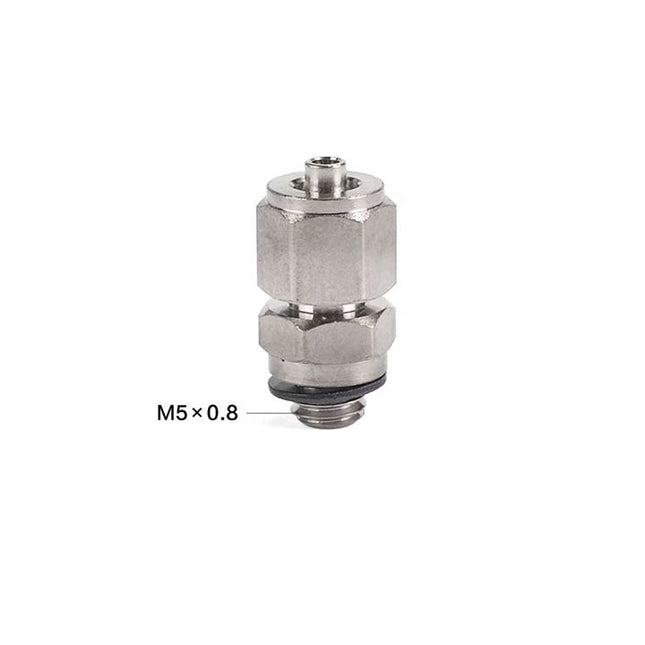

M5: M5X0.8 |
08: Ø8mm |
05: Ø5mm |
01: PT1/8 |
10: Ø10mm |
06: Ø6mm |
02: PT1/4 |
12: Ø12mm |
65: Ø6.5mm |
03: PT3/8 |
|
75: Ø7.5mm |
04: PT1/2 |
|
08: Ø8mm |
|
|
09: Ø9mm |
|
Note: Use Ø8 x Ø5.5 tube for BKC0806 female straight connector.
