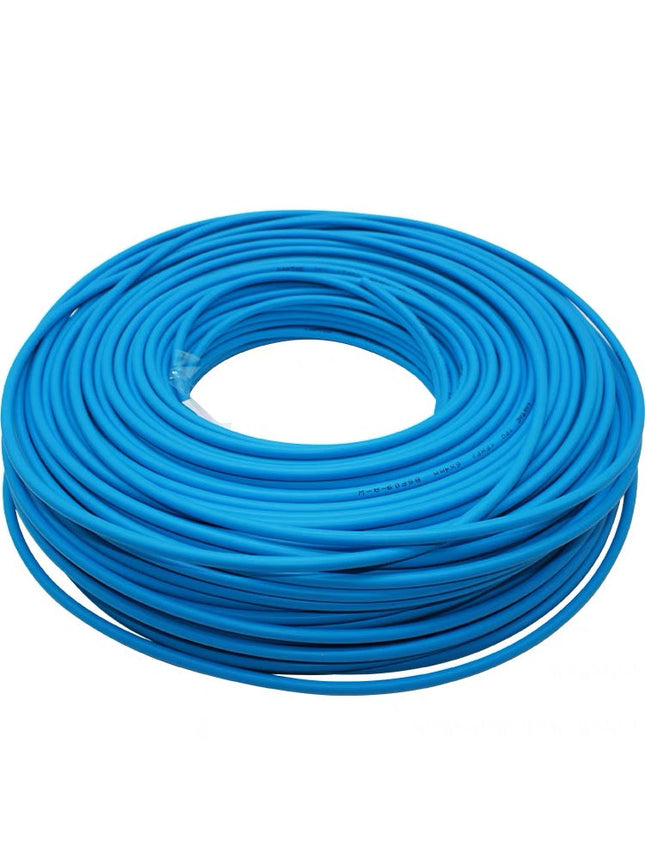

UN54D Series Tubing
Product Features
- Single-layer air hose with flame retardant function.
- High elasticity: Extremely small bending radius, able to pass through tight spaces.
- Excellent water resistance and good flexibility.
- Superior wear resistance and high tensile strength.
Specifications
| Model | OD (mm) | ID (mm) | Wall (mm) | Length (m) | Working Pressure 23°C (MPa) | Burst Pressure 23°C (MPa) | Bending Radius (mm) | Weight /100m (kg) | Working Temp (°C) |
|---|---|---|---|---|---|---|---|---|---|
| UN54D[]060040[][] | 6.0 | 4.0 | 1.00 | 100 | 1.0 | 4.0 | 12 | 1.93 | -20~70 |
| UN54D[]080050[][] | 8.0 | 5.0 | 1.50 | 100 | 1.0 | 4.0 | 18 | 3.66 | |
| UN54D[]100065[][] | 10.0 | 6.5 | 1.75 | 100 | 1.0 | 4.0 | 20 | 5.44 | |
| UN54D[]120080[][] | 12.0 | 8.0 | 2.00 | 100 | 1.0 | 4.0 | 20 | 7.56 |
Note: The "[]" in the model column represents the color code.
Product Ordering Code
| 1. Model Code | 2. OD Code | 3. ID Code | 4. Length Code | 5. Color Code |
|---|---|---|---|---|
| UN54D: Flame retardant tube hardness 54D±3 |
060: Ø6.0mm 080: Ø8.0mm 100: Ø10.0mm 120: Ø12.0mm |
040: Ø4.0mm 050: Ø5.0mm 065: Ø6.5mm 080: Ø8.0mm |
100M: 100m/roll |
BU: Blue BK: Black GN: Green WH: White R: Red Y: Yellow |
