Description

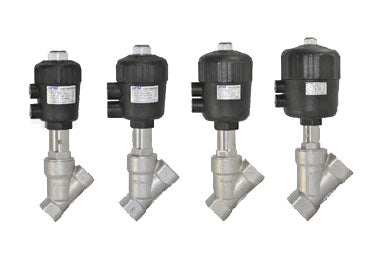

Specifications: two-port two-position pneumatic angle seat valve,Body material: stainless steel SUS316L,Initial state: normally open type,Nominal diameter: 酶32mm,Nozzle caliber: 1 1/4",Actuator bore: 酶63mm,Tooth type: G tooth,
Click to download the Airtac catalog
Product Features
1.Air piloted and can be used non electric flammable and explosive environment. The start-up pressure is low; and the high pressure could be controlled by the low pressure.
2.The accessories and slide bar are made of stainless steel which are of excellent rustproof quality. The seals are made of Teflon and can be applied extensively in areas with high temperature and strong corrosive liquids.
3.The structure of valve angles at 45 degrees with streamline inner chamber design. The reduced tunnel resistance allows liquid to run more smoothly thus achieving high flow. Filtration core is added at inlet port to prevent the entrance of impurities and extend life span of the seals.
4.Actuator is fitted with visual position indicator. This allows for visual checking and adjustment of flowrate.
5.Control point is made of metal insert. Mounting plate can be used for NAMUR value.
6.The actuator part can be rotated at 360 degrees and is easily installed.
