Description

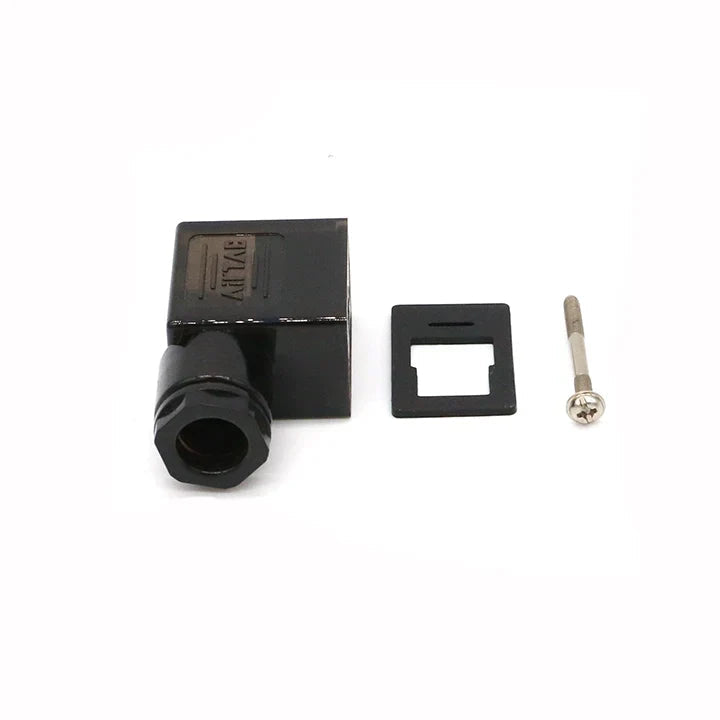

Coil connector terminal use with CDA080,CDA092 coils (DC)聽with LED and gasket
Click to download the Airtac catalog
Product Features
Specifications for Solenoid Valve Washer Coils
For 4M110, 4M120 Series
For 4V110, 4V120,4V130,Series
For 3V110, 3V120 Series
(8.0mm Orifice Solenoid Valves):Available in terminal and washer coil types.
Multiple voltage options:(A: AC220V),(B: DC24V),(C: AC110V),(E: DC24V),(F: DC12V)
1.DC coils have polarity indicators on the terminals.Wiring instructions:鈥�鈥�should be connected to thepositiveterminal,鈥�鈥漵hould be connected to the negative terminal.
2.If connected incorrectly, the indicator light will not turn on, but the valve will still function properly.
