Description

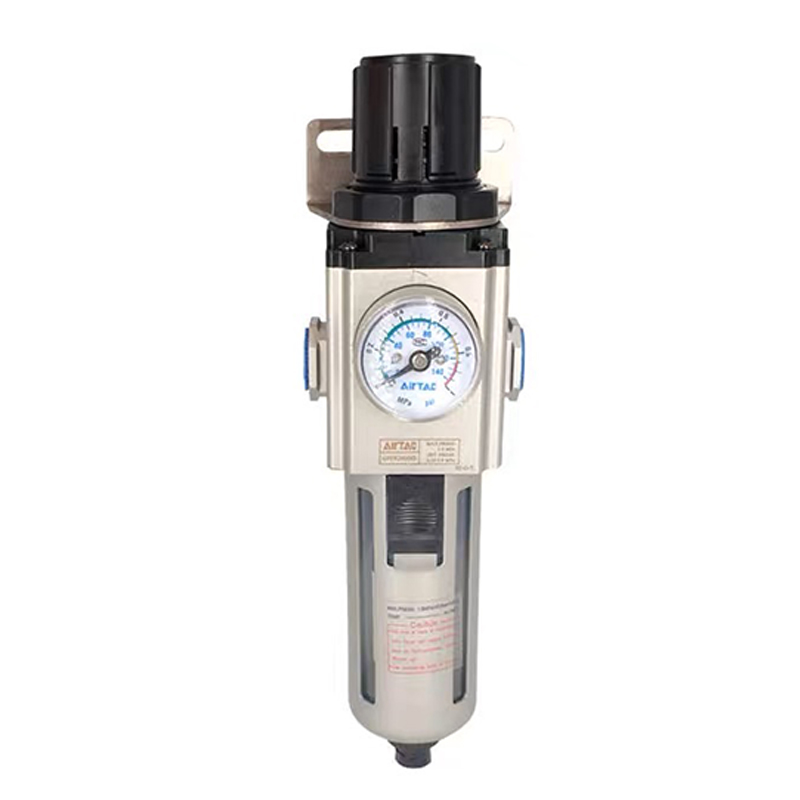

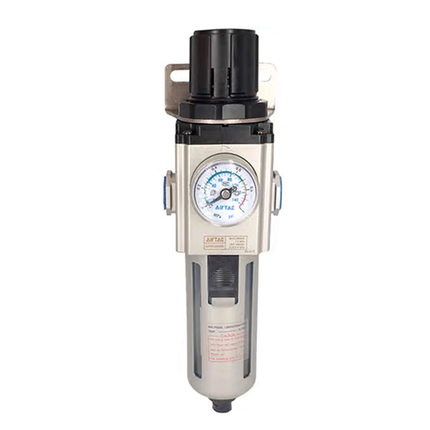

Series: GP400 series pressure regulating precision filter,Cup body material: PC cup,Nozzle caliber: 1/2",Drainage mode: differential pressure + manual drainage,Type: low voltage type,Bracket: attached bracket,Pressure gauge: round gauge snap type,Filtration accuracy: 0.01μm level,Dental type: G tooth (bar/MPa),
Click to download the Airtac catalog
Product Features
1.Circular square pressure gauge which with clip and magnifier is used to save installation space.
2.The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
3.Balanced design is adopted for the pressure adjustment mechanism.
4.Unique diversion structure spins the air flowing through to effectively separate the liquid from the airand reliably filterthe solid grain.
5.The filtering grade includes 0.3pm and 0.01pm (optional).
6.Two drain types are available: semi-auto drain and automatic drain.
7.Three material of bowl are available: PC, Nylon and metal.
8.The bracket can be selected for installation.
